Omega OS550A User Manual

4-3
Laser Sight Accessory
4
4.3 Operating the Laser Sight
4.3.1 Installing the Laser Sight onto the Thermometer
The laser sight accessory (OS550-LS) screws onto the front of the
sensor head. Do not over tighten the laser sight accessory onto the
sensor head. This accessory is only used during sensor head
installation and then removed.
4.3.2 Powering the Laser Sight Accessory
The laser sight head is powered by a small compact battery pack
supply provided with this accessory. Connections are made between
the laser sighting head and the power pack via a 24" cable with mini
mating connectors. Power is turned on and off to the sighting head
by a slide switch on the power pack.
1-1/2 - 20 THREADS
2-1/2 - 20 THREADS
OS550/OS1550
ADAPTOR
BATTERY POWER PACK
609.6 (24.0) LONG
CABLE/CONNECTOR
OS550-LS/OS1550-LS
LASER SIGHTING ACCESSORY
LASER SIGHTING HEAD
LASER WARNING LABEL
PRODUCT
ID LABEL
POWER: 3.2V DC
ON/OFF SWITCH
POWER/LASER
"ON" LED
75.41
(2-31/32)
17.86
(45/64)
Ø 38.1
(1-1/2)
Ø 63.5
(2-1/2)
Ø 76.2 (3.0)
46.83
(1-27/32)
Ø 6.35 (1/4)
20.64
(13/16)
3
42.87
(1-11/16)
20.24
(51/64)
DIMENSIONS: mm (in)

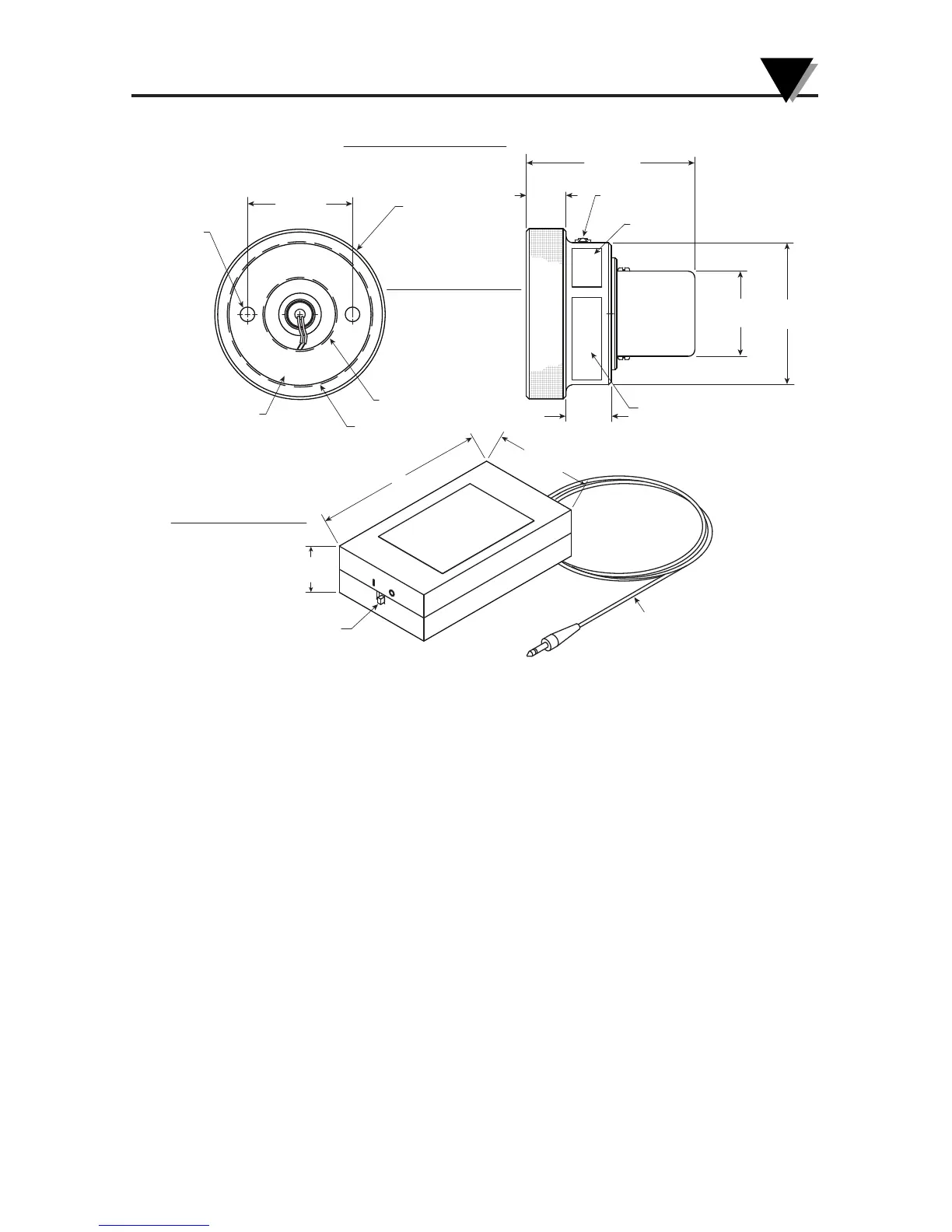

Fig. 4-2 General Dimensions
