Omron 3G3JV User Manual

27

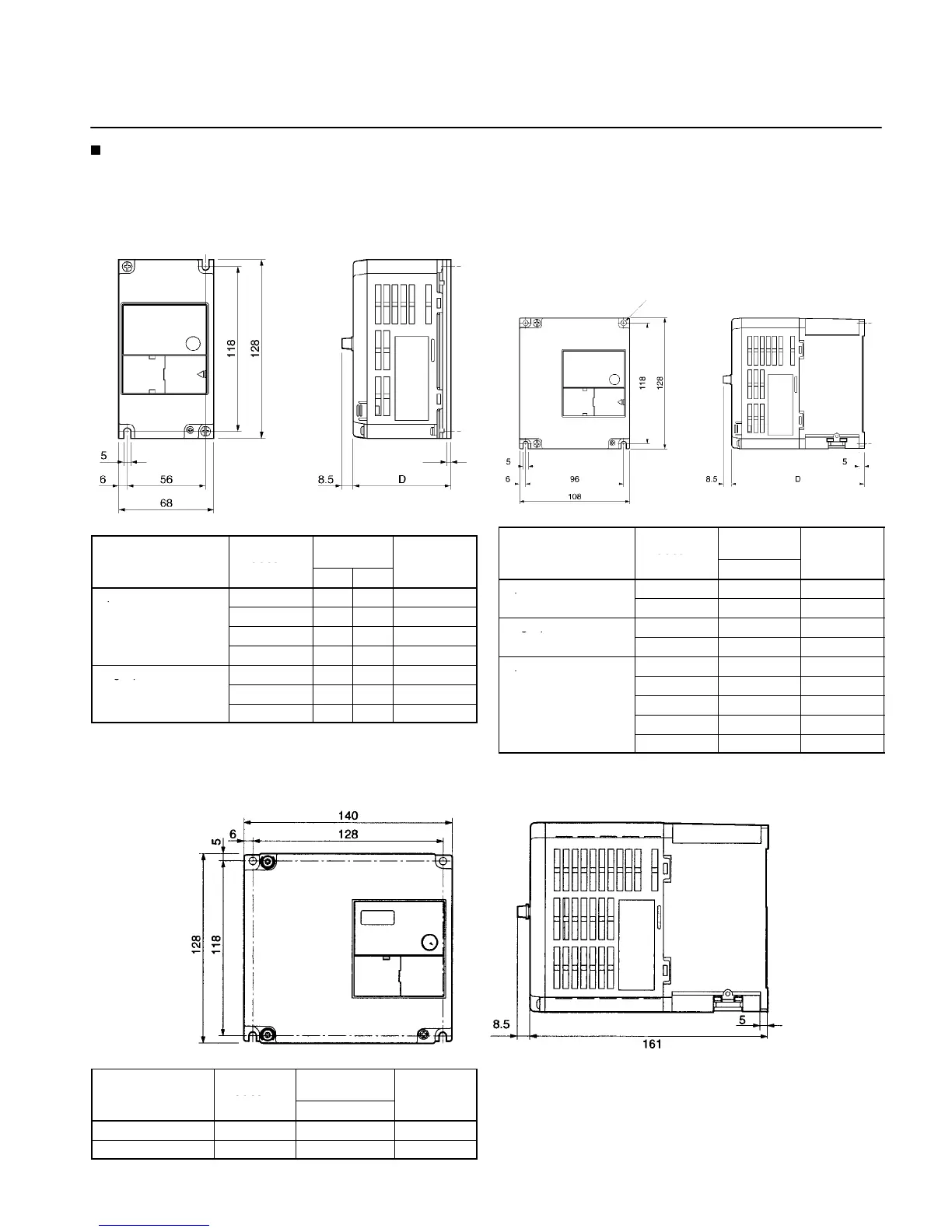

Dimensions
3G3JV-A2001 to 3G3JV-A2007 (0.1 to 0.75 kW)
3-phase 200-V AC Input
3G3JV-AB001 to 3G3JV-AB004 (0.1 to 0.4 kW)
Single-phase 200-V AC Input
t
Rated voltage Model
3G3JV-
Dimensions
(mm)
Weight (kg)
3G3JV
D t
3-phase 200 V AC
A2001 70 3 Approx. 0.5
p
A2002 70 3 Approx. 0.5
A2004 102 5 Approx. 0.8
A2007 122 5 Approx. 0.9
Single-phase 200 V AC
AB001 70 3 Approx. 0.5
gp
AB002 70 3 Approx. 0.5
AB004 112 5 Approx. 0.9
3G3JV-A2015 to 3G3JV-A2022 (1.5 to 2.2 kW)
3-phase 200-V AC Input
3G3JV-AB007 to 3G3JV-AB015 (0.75 to 1.5 kW)
Single-phase 200-V AC Input
3G3JV-A4002 to 3G3JV-A4022 (0.2 to 2.2 kW)
3-phase 400-V AC Input
Two, 5-dia. holes
Rated voltage Model
3G3JV-
Dimensions
(mm)
Weight (kg)
3G3JV
D
3-phase 200 V AC
A2015 129 Approx. 1.3
p
A2022 154 Approx. 1.5
Single-phase 200 V AC
AB007 129 Approx. 1.5
gp
AB015 154 Approx. 1.5
3-phase 400 V AC
A4002 81 Approx. 1.0
p
A4004 99 Approx. 1.1
A4007 129 Approx. 1.5
A4015 154 Approx. 1.5
A4022 154 Approx. 1.5
3G3JV-A2037 (3.7 kW) 3-phase 200-V AC Input
3G3JV-A4037 (3.7 kW) 3-phase 400-V AC Input
Rated voltage Model
3G3JV-
Dimensions
(mm)
Weight (kg)
3G3JV
D
3-phase 200 V AC A2037 161 Approx. 2.1
3-phase 400 V AC A4037 161 Approx. 2.1
Dimensions

Omron 3G3JV Specifications

General

Series	3G3JV
Output Frequency	0.1 to 400 Hz
Control Method	V/F Control
Operating Temperature	-10 to 50°C
Altitude	1000 m or less
Type	Inverter
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Braking Unit	Built-in
Frequency Range	0.1 to 400 Hz
Power Range	0.1 kW to 2.2 kW
Communication	RS-485 (Modbus RTU)
Storage Temperature	-20 to 60°C
