Options
43

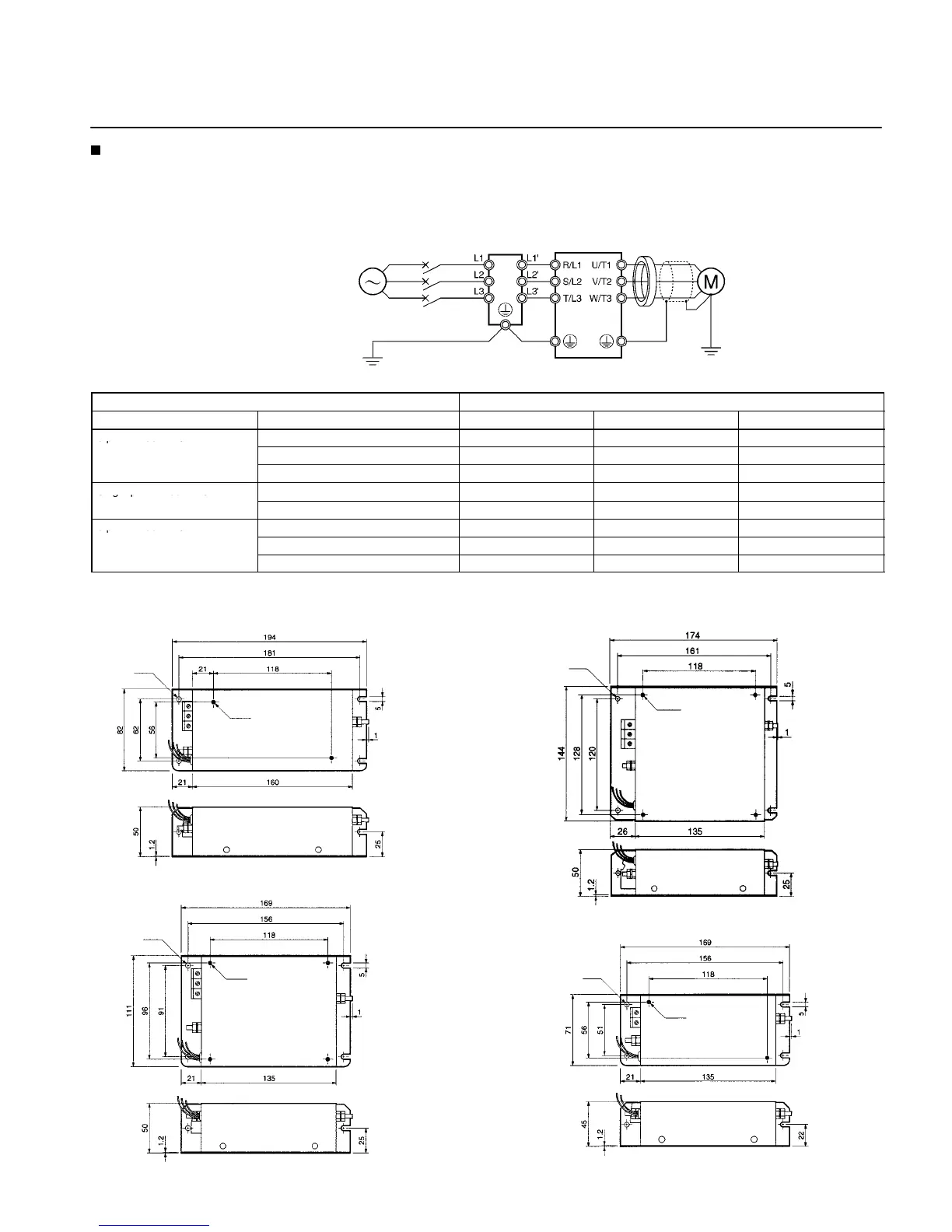

EMC-conforming Input Noise Filter
3G3JV-PRSj (Rasmi)
The Input Noise Filter is connected between the power supply input terminals (R/L1, S/L2, T/L3) of the Inverter and the power supply
in order to meet the EC Directive’s EMC requirements.
Connection Example
Applicable Models
Inverter EMC-conforming Input Noise Filter
Voltage Model Model Rated current (A) Weight (kg)
3-phase 200 V AC
3G3JV-A2001/-A2002/-A2004/-A2007 3G3JV-PRS2010J 10 0.8
3p 00 C
3G3JV-A2015/-A2022 3G3JV-PRS2020J 16 1.0
3G3JV-A2037 3G3JV-PRS2030J 26 1.3
Single-phase 200 V AC
3G3JV-AB001/-AB002/-AB004 3G3JV-PRS1010J 10 0.6
Sg p 00 C
3G3JV-AB007/-AB015 3G3JV-PRS1020J 20 1.0
3-phase 400 V AC
3G3JV-A4002/-A4004 3G3JV-PRS3005J 5 1.0
3p 00 C
3G3JV-A4007/-A4015/-A4022 3G3JV-PRS3010J 10 1.0
3G3JV-A4037 3G3JV-PRS3020J 15 1.1
External Dimensions
Three,
5-dia. holes
Two, M4 holes
Three, 5-dia. holes
Four, M4 holes
3G3JV-PRS2010J
3G3JV-PRS2020J
Three,
5-dia. holes
Two, M4 holes
3G3JV-PRS1010J
3G3JV-PRS2030J
Four, M4 holes
(for Inverter mounting
use)
Three,
5-dia. holes
MCCB Noise Filter
Clamp core
3-phase 200 V AC,
single-phase 200 V AC,
or 3-phase 400 V AC
