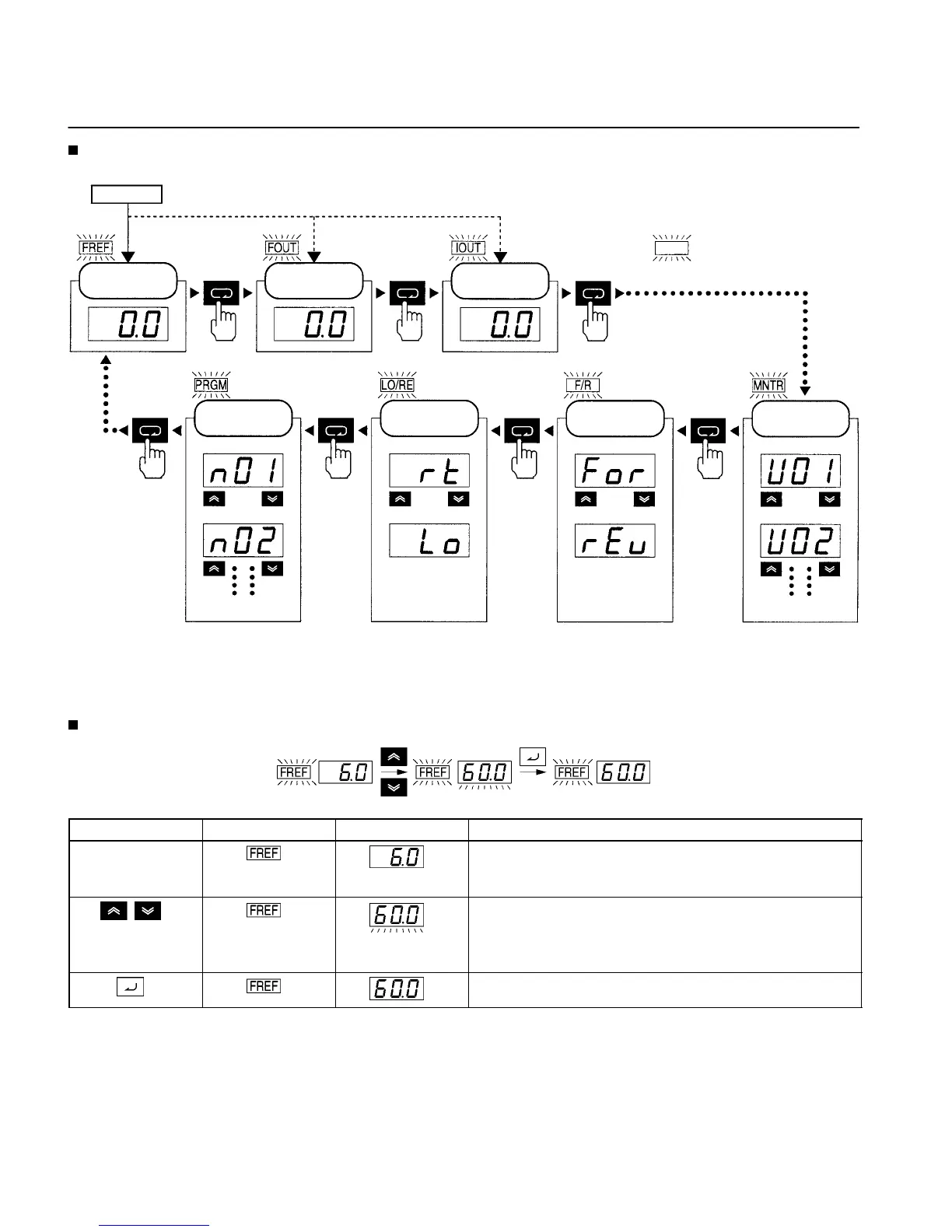

Selecting Indicators
Power ON
Frequency
reference
Output
frequency
Output current
represents a lit indicator.
Parameter
settings
Local/Remote
selection
Remote mode
Local mode
Parameter n01
Parameter n02
Other parameters
Direction of
rotation
Forward
Reverse
Multi-function
monitor
Frequency reference
Output frequency
Other monitor items
Note: If the power is turned OFF with the FOUT or IOUT indicator lit, the same indicator will light when the power is turned ON again.
In other cases, the FREF indicator will light when the power is turned ON.
Example of Frequency Reference Settings
Flashing
Key sequence Indicator Display example Explanation
Power ON
Note If the FREF indicator has not been lit, press the Mode
Key repeatedly until the FREF indicator is lit.
Use the Increment or Decrement Key to set the frequency
reference.
The data display will flash while the frequency reference is
set. (see note 1)
Press the Enter Key so that the set value will be entered and
the data display will be lit. (see note 1)
Note: The Enter Key need not be pressed when performing the setting for n08. The frequency reference will change when the set
value is changed with the Increment or Decrement Key while the data display is continuously lit.
Using Digital Operator

Omron 3G3JV Specifications

General

Series	3G3JV
Output Frequency	0.1 to 400 Hz
Control Method	V/F Control
Operating Temperature	-10 to 50°C
Altitude	1000 m or less
Type	Inverter
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat
Braking Unit	Built-in
Frequency Range	0.1 to 400 Hz
Power Range	0.1 kW to 2.2 kW
Communication	RS-485 (Modbus RTU)
Storage Temperature	-20 to 60°C
