4-1-2 Connecting the Programming Console
There are two Programming Console models that can be used with the C200HX/
C200HG/C200HE: the C200H-PRO27-E and the CQM1-PRO01-E. The follow-

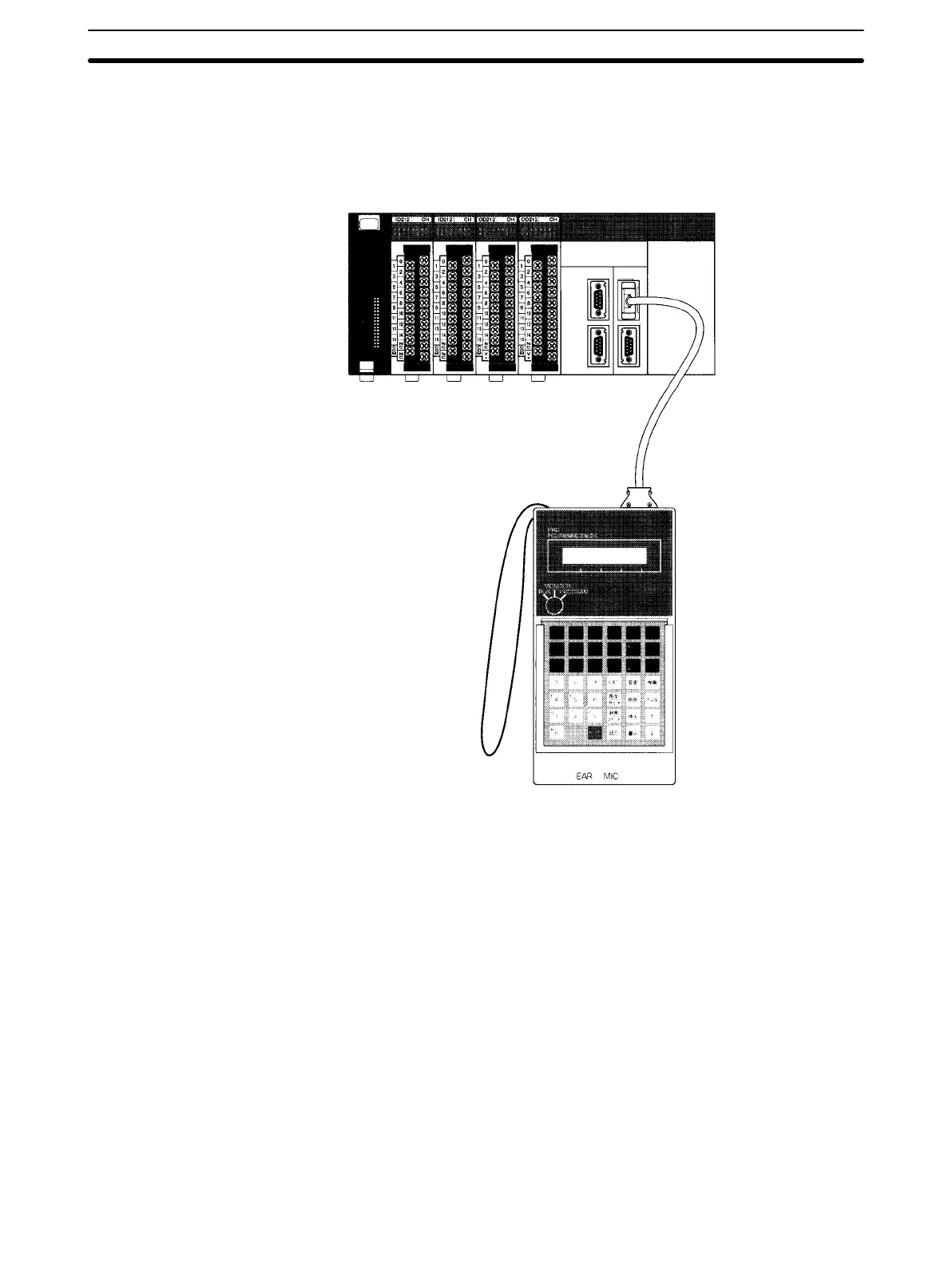

ing illustration shows how a Programming Console (a C200H-PRO27-E in this
case) connects to the C200HX/C200HG/C200HE CPU Unit.
C200H-CN222 or C200H-CN422
Connecting Cable
C200H-PRO27-E
Programming Console
As indicated in the illustration, the C200H-PRO27-E Programming Console
connects to the C200HX/C200HG/C200HE CPU Unit with C200H-CN222 (2 m)
or C200H-CN422 (4 m) Connecting Cable, which must be purchased sepa-
rately.
The CQM1-PRO01-E Programming Console comes with 2 m of Connecting
Cable.
Using the Programming Console Section 4-1
