Omron CK3E Series Connection Guide

2-2

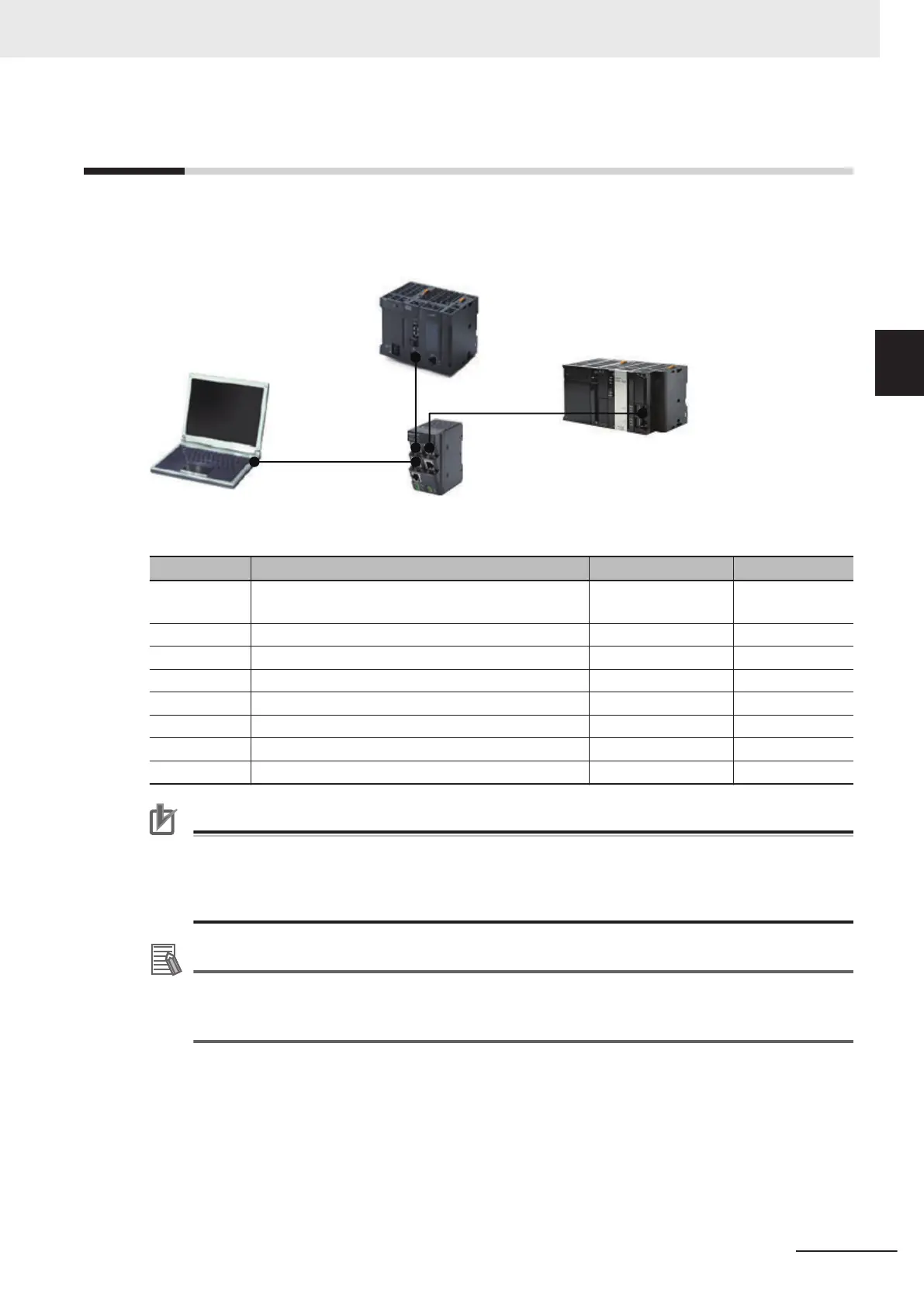

Device Configuration
The configuration devices for reproducing the connection procedures in this document are shown be-
low.
CK3M-CPU1£1
Power PMAC IDE
Sysmac Studio
Ethernet
NJ501-1500
EtherNet/IP
W4S1-05B
EtherNet/IP
Manufacturer Name Model Version
OMRON NJ/NX-series CPU Unit (With built-in EtherNet/IP
port)
NJ501-1500 Ver. 1.21 or later
OMRON Power Supply Unit NJ-PA3001 ---
OMRON Industrial Switching Hub W4S1-05B ---
OMRON Sysmac Studio
SYSMAC-SE2£££
---
OMRON Programmable Multi-Axis Controller
CK3M-CPU1£1
Ver. 2.5.4 or later
OMRON Industrial Switching Hub W4S1-05B ---
OMRON Ethernet Cable (Industrial Ethernet connector cable)
XS5W-T421-£M£-K
---
DT Power PMAC IDE --- Ver. 4.4 or higher
Precautions for Correct Use
Auto-update the Sysmac Studio to the version specified in this section or later. Using a version
that is not specified in this section may cause differences in the procedures in Section 3 and
later
. In that case, refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) to
perform equivalent procedures.
Additional Information
This manual describes the connection example of the NJ501-1500 and CK3M-CPU1£1. The
same procedure can be used to connect a CK3E-££££ or a CK5M-CPU1£1 and other
NJ/NX-series CPU Unit.
2 Target Device and System Configuration
2-3
CK3E/CK3M/CK5M Series EtherNet/IP Connection Guide (O903)
2-2 Device Configuration
2
