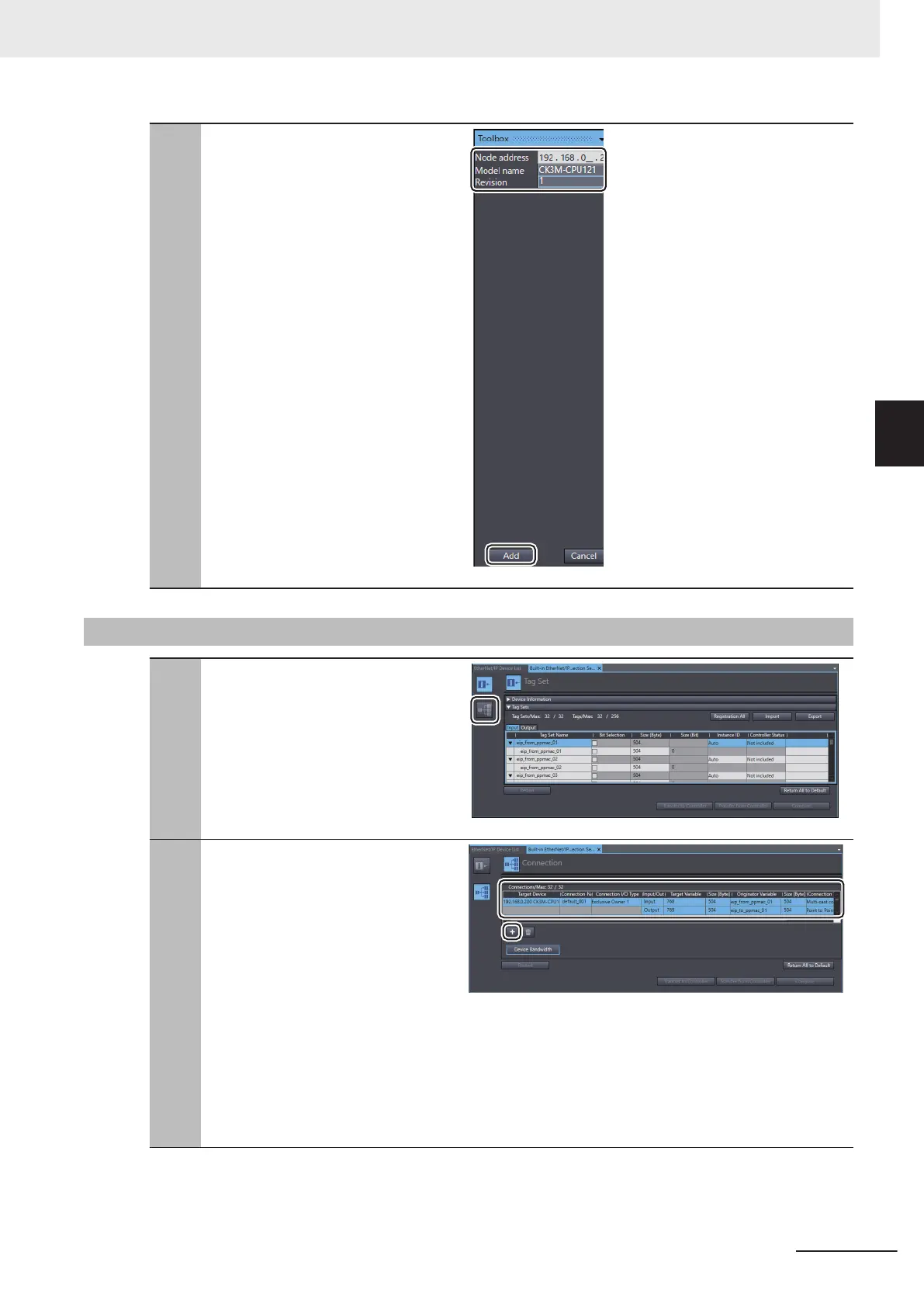

Select the IP address and model name
of the PMAC to use.
For the revision, select 1.
When you finished entering the data,
click the Add button.
• In this document, the default PMAC
address (192.168.0.200) is used.
3-2-7
Setting EtherNet/IP (Connections)
1
Click the Connection
icon.
2
Setting Connection 1
Next, click the + icon.
For the added row, set the items as fol-
lows.
Target Device: PMAC to use
Connection I/O Type: Exclusive Owner
1
RPI: 50.0 ms
Target Variable: 768 for inputs and 769
for outputs
*1
Size: 504
Originator Variable:
eip_from_ppmac_01, eip_to_ppmac_01
3 EtherNet/IP Connection Procedures
3-11
CK3E/CK3M/CK5M Series EtherNet/IP Connection Guide (O903)
3-2 NJ/NX-series CPU Unit Settings
3
3-2-7 Setting EtherNet/IP (Connections)
