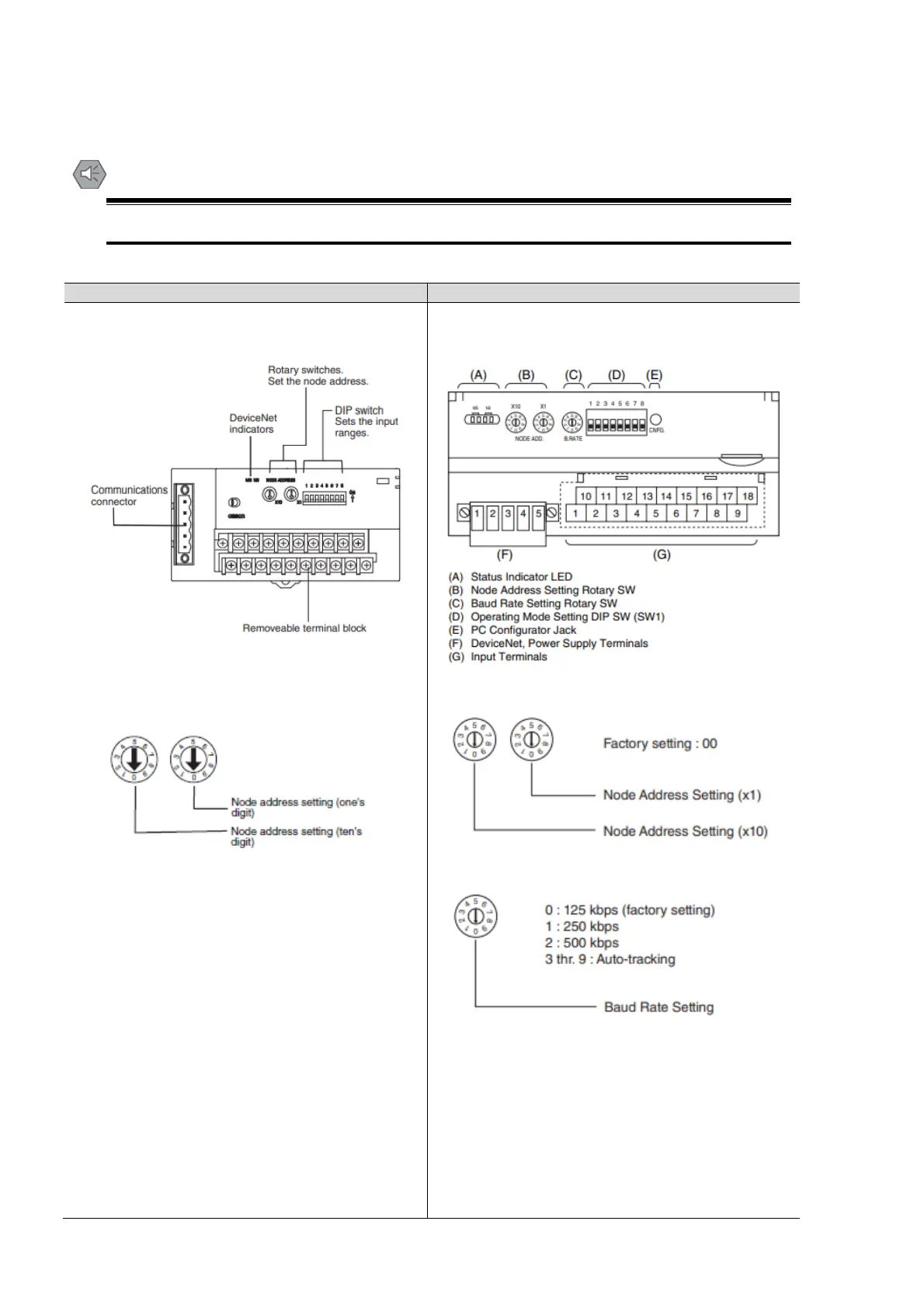

2 Switch setting method
DRT2-AD04/DA02 and R7D-SV4/YV2/YS2 settings are described with both units.
I will explain it.
Safety Key Points
Be sure to turn off the power to the slave before making sets.
2.1 DRT2-AD04 and R7D-SV4
DRT2-AD04
R7D-SV4
Set the node address and input range.
・Model DRT2-AD04
Setting the Node Address
Setting the Baud Rate
There is no setting.
Set the node address, communication speed, input
range, and conversion speed/accuracy.
・Model R7D-SV4
Setting the Node Address
Setting the Baud Rate
