3.2 DRT2-DA02 and R7D-YS2
DRT2-DA02
R7D-YS2

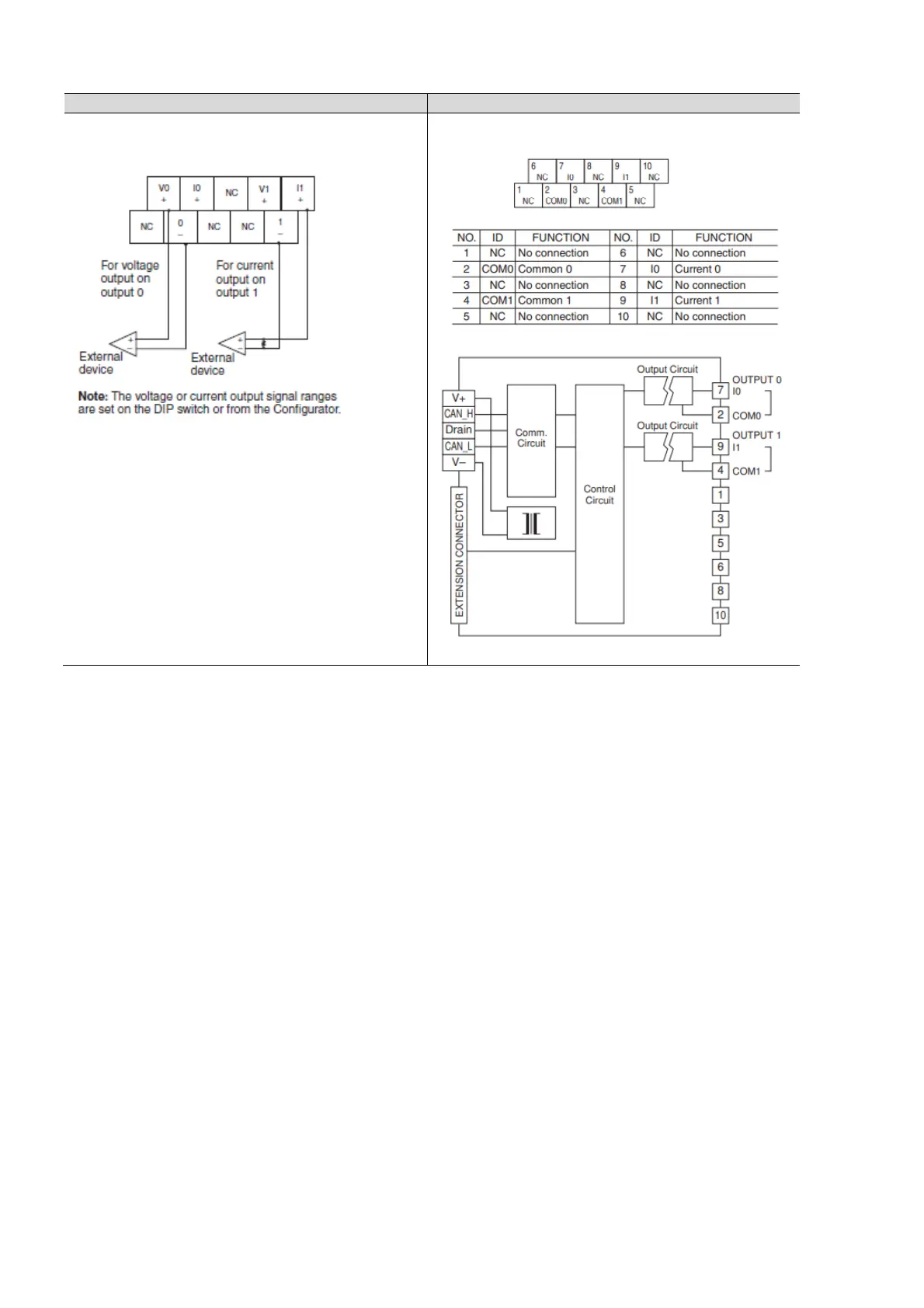

Wire each output unit according to the voltage
output or current output as shown below.
