5.2 Replacement of Unit at Free Assignment
The following procedure shows how to replace DRT2-AD04 allocated in 4ch from 3310Ch with a R7D-SV4.
For details on how to obtain EDS files for the R7D series and how to install EDS files on CX-Integrator, refer to SBCZ-
607B of the CJ Series DeviceNet Connectivity Guide (R7 Series) E M-System Remote I/O.

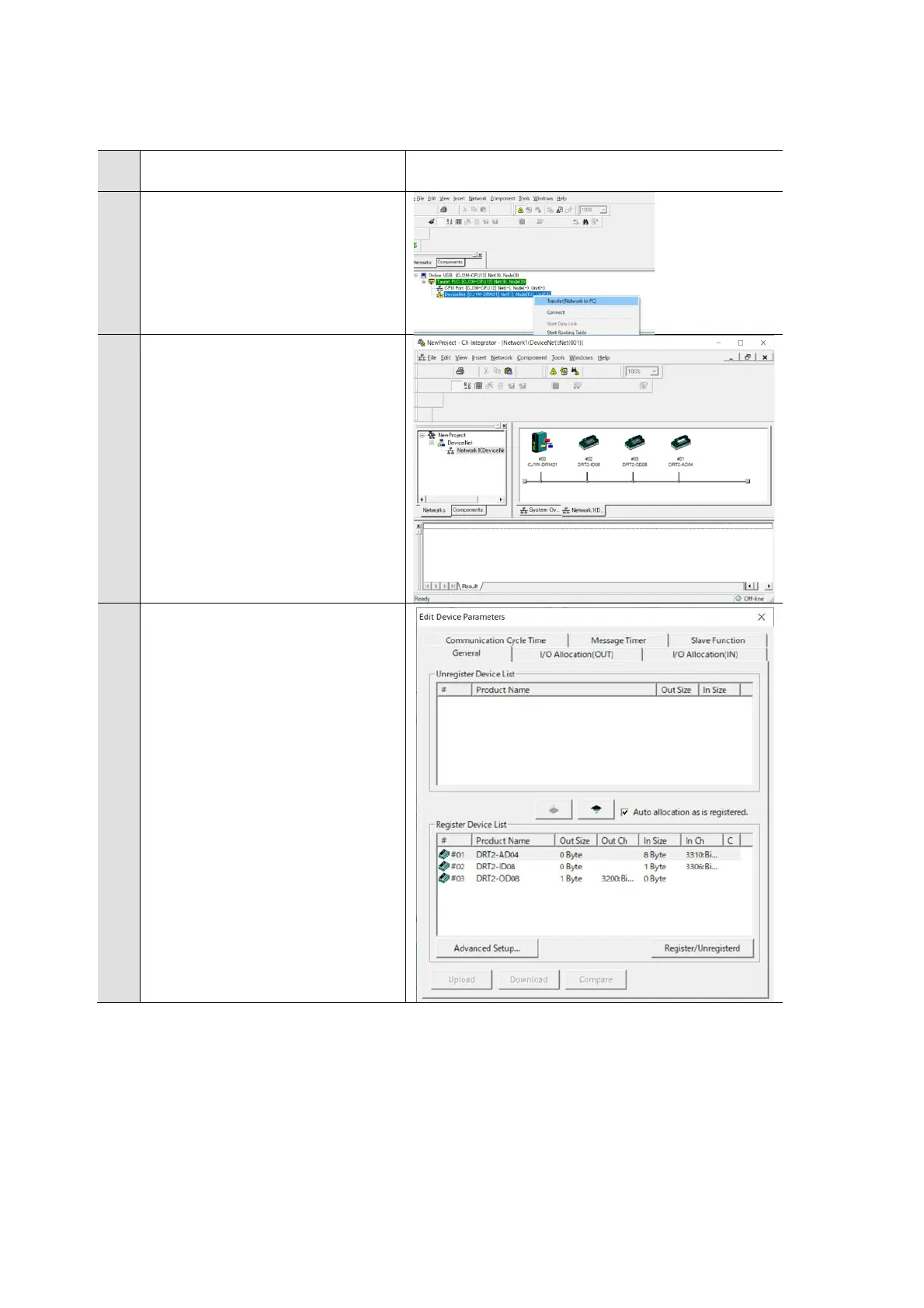

1
Turn on the PLC.
2
Bring PLCs and CX-Integrator
online.
The device configuration is actually
uploaded from DeviceNet to the PC.
3
Select the master unit in the network
configuration window and double-
click it.
4
Check that DRT2-AD04 is assigned
8byte from 3310 channels.
