15
E3MCE3MC

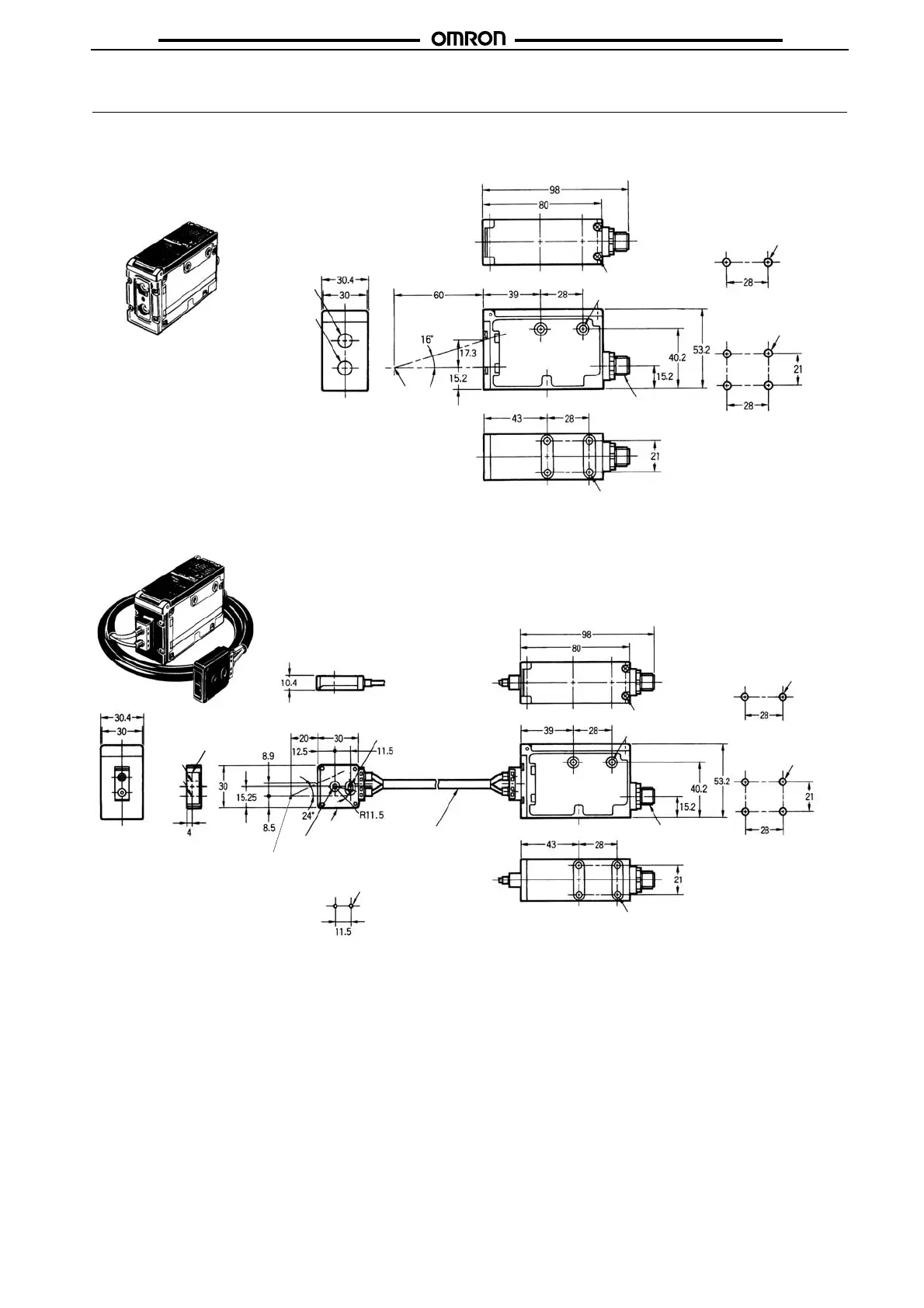

Dimensions
Note: All units are in millimeters unless otherwise indicated.
■
RGB Color Sensors
E3MC-A@@
E3MC-MA@@
Receiver
Emitter
Optical axis
M12 connector
Four, M5 holes (depth: 5.5)
Mounting Dimensions
Side Mounting
Bottom Mounting
Two, 5.5-dia. holes
Four, 5.5-dia. holes
Two, M2.6 x 6
Four, M5 holes on both
sides (depth: 5.5)
E3MC-X@@
E3MC-MX@@
Receiver
Emitter
Sensing face
(9.1 x 22.9)
Optical axis
3.3-dia. mounting holes
Sensing head
(heat-resistive ABS)
6-dia. optical fiber
(standard length: 1 m)
Mounting Dimensions
(Fiber Head)
M12 connector
Four, M5 holes (depth: 5.5)
Side Mounting
Bottom Mounting
Two, M2.6 x 6
Two, 5.5-dia. holes
Four, 5.5-dia. holes
Two, M3 holes
Four, M5 holes on both
sides (depth: 5.5)
Mounting Dimensions
(Amplifier Unit)
Two, R1.65
mounting holes
