Page
10
of
37

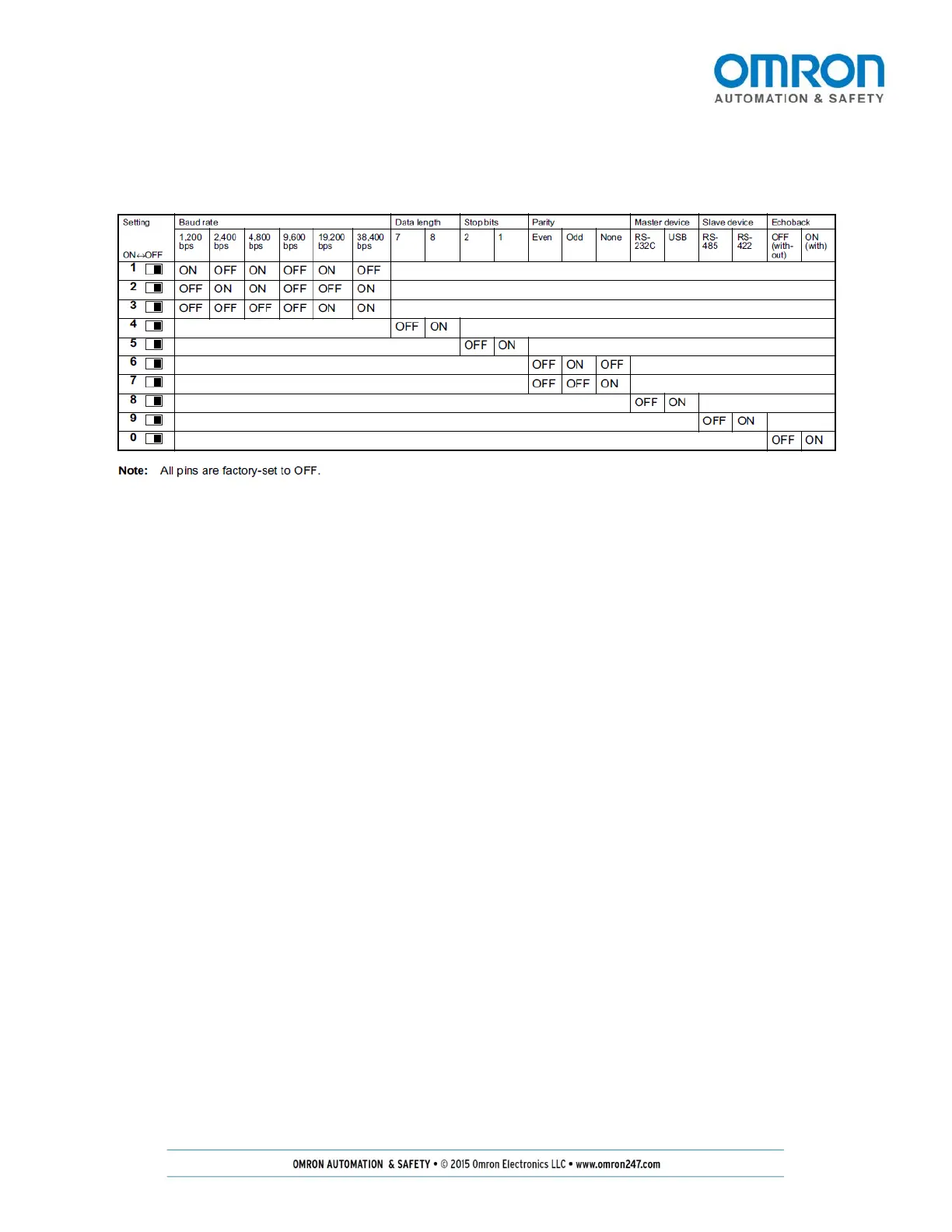

K3SC
DIP
Swi
tch S
etti
ngs
Set the K
3SC
DIP
switch
es to
match the s
ettings
on th
e E5CC
tempera
ture c
ontroll
ers.
Fig
ure
7
: K3SC
DIP
Switch Settings
DIP
switches 0
-
8 should be set
to off. If the
default baud rate
, data length,
stop bits, and pa
rity were used,
then all of the
DIP
switche
s would be set to off
.
9
11
