E5CN
E5CN

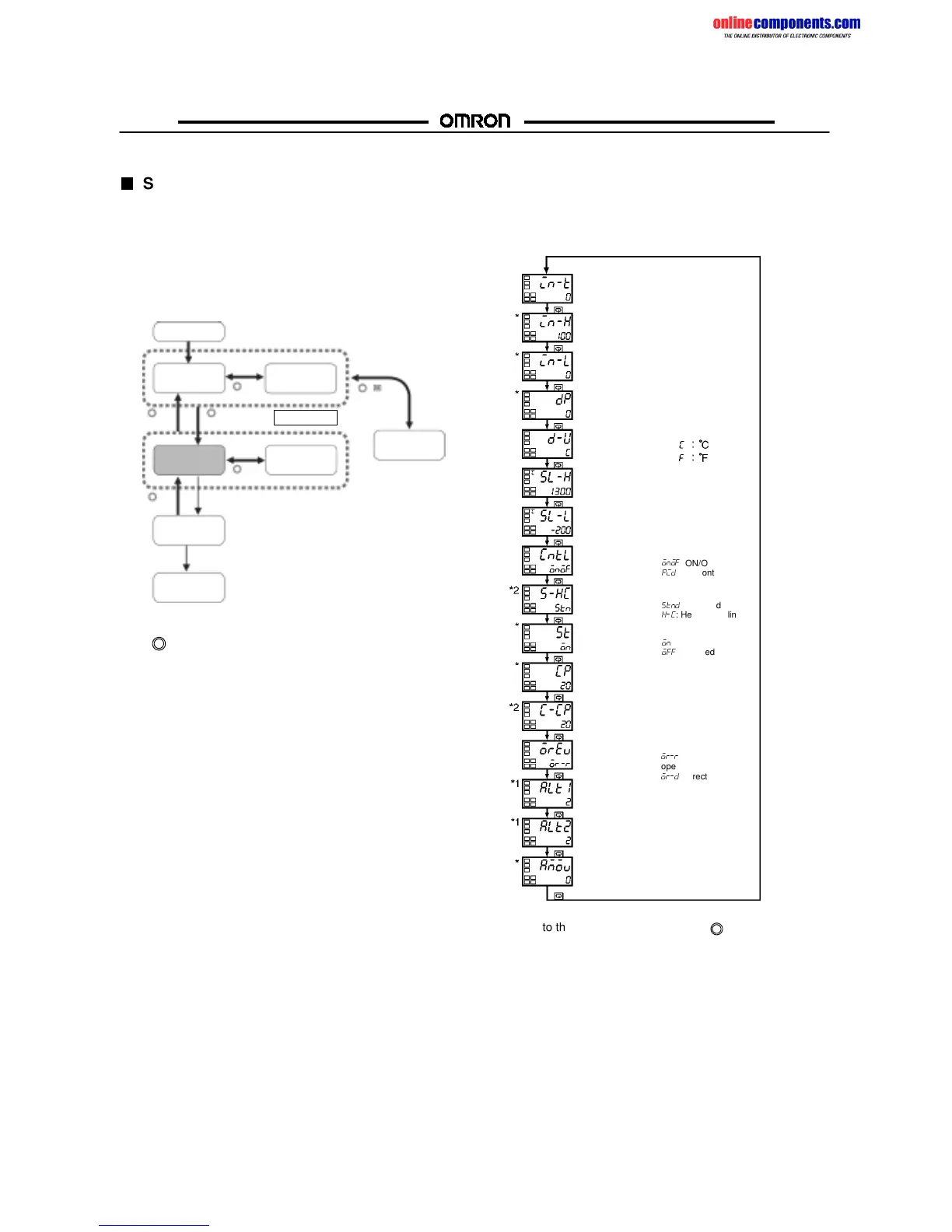

SPECIFICATION SETTING (AFTER
TURNING ON POWER)
Initial Setting Level
This level is used for setting basic specifications of the
Temperature Controller. Using this level, set the input type for
selecting the input to be connected such as the thermocouple or
platinum resistance thermometer and set the range of set point
and the alarm mode.
Power ON
Operation level
Adjustment level
key
Less than 1 second
key
3 second min.
key
1 second min.
Communications
setting level
key
Less than 1 second
Control stops.
Initial setting
level
key
1 second min.
Password input
set value “-169”
Password input
set value “1201”
Advanced function
setting level
Calibration level
Protect level
key
1 second min.
+
The move from the operation level to the initial setting level,
press
key for three seconds or more.
The initial setting level is not displayed when
“initial/communications protection” is set to “2.” This initial setting
level can be used when “initial setting/communications
protection” is set to “0” or “1.”
The “scaling upper limit,” “scaling lower limit,” and “decimal point”
parameters are displayed when an analog voltage input is
selected as the input type.
Initial setting level
Input type
Scaling upper limit
Scaling lower limit
Decimal point
Set point upper limit
Set point lower limit
PID / ON/OFF
Standard/heating and
cooling
ST
Control period (heat)
Control period (cool)
Direct/reverse operation
Alarm 1 type
Alarm 2 type
Move to advanced
function setting level
Temperature unit
: ON/OFF control
: PID control
: Standard
: Heating/cooling
: Enabled
: Disabled
: Reverse
operation
: Direct
operation
To return to the operation level, press the key for longer than
one second
*
Not displayed as default setting.
Note: 1. Displayed only with models provided with an alarm
function.
2. Displayed only with the E5CN provided with a two-
point alarm function.
