10.7 ROI (Region of Interest)
The specified region of image can be output from camera with ROI function.
GenICam Parameters
Width IInteger Type Width (horizontal size) of output image (in pixel)
Range: 8 to 4,096 pixels (FS-C4KU7DGES-F / FS-C4KU7DGES-M42)
8 to 2,048 pixels (FS-C2KU7DGES-F / FS-C2KU7DGES-M42 /
FS-C2KU7DGES-C)
Default: 4,096 pixels (FS-C4KU7DGES-F / FS-C4KU7DGES-M42)
2,048 pixels (FS-C2KU7DGES-F / FS-C2KU7DGES-M42 /
FS-C2KU7DGES-C)
Adjustable steps: 8 pixels
(“Width” + “OffsetX”) should not exceeded maximum width.
Height IInteger Type Height (vertical size) of output image (in line)
Range: 16 to
Default: 1,000 lines
Adjustable steps: 1
The maximum height will be change with “Width” and “Pixel Format”
settings.
OffsetX IInteger Type Horizontal offset for output image (in pixel)
Range: 0 to 4,088 pixels (FS-C4KU7DGES-F / FS-C4KU7DGES-M42)
0 to 2,040 pixels (FS-C2KU7DGES-F / FS-C2KU7DGES-M42 /
FS-C2KU7DGES-C)
Default: 0 pixels
Adjustable steps: 8

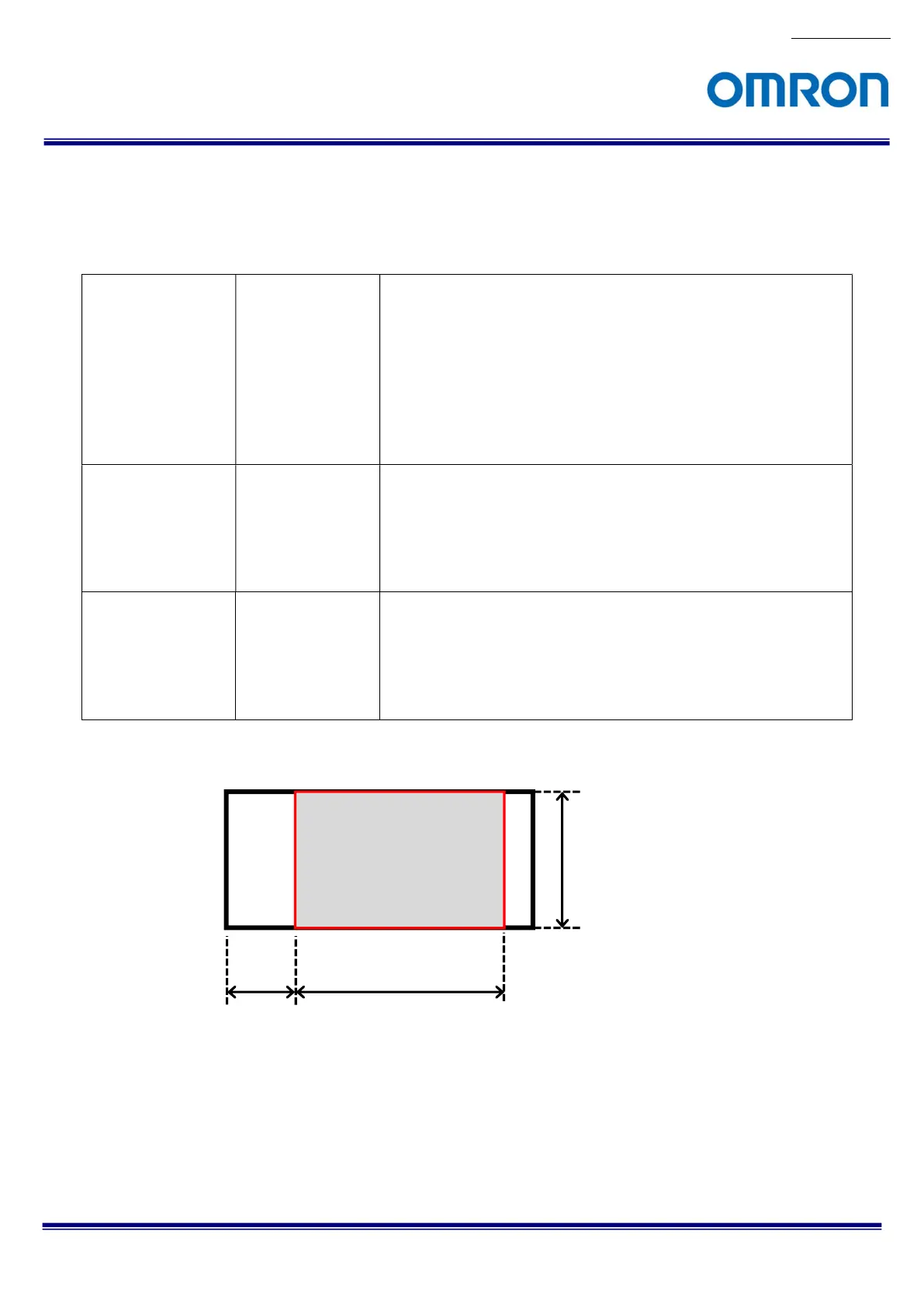

The ROI region settings are below:
Height
ROI region
Width
OffsetX
