⑤

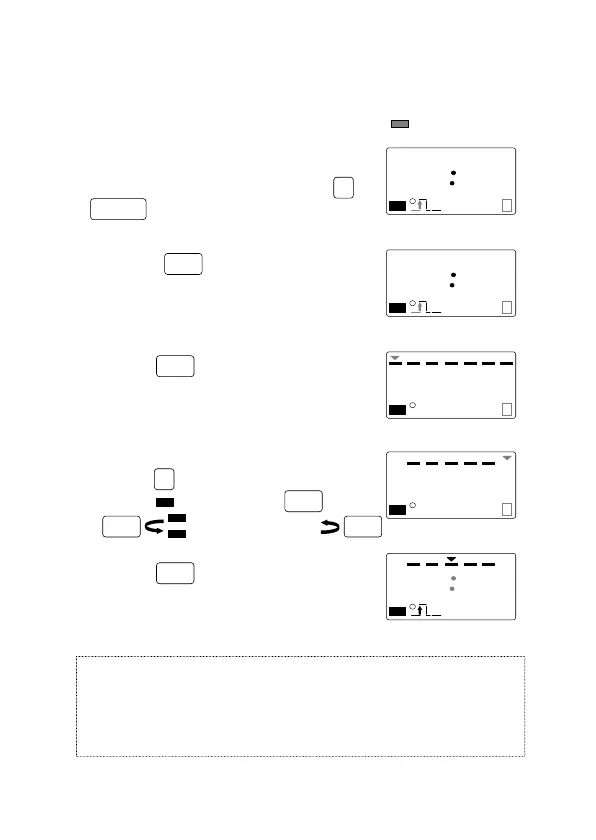

Set the ON time (the time when pulse-output

operation starts) to 8:25 am using the and

Keys.

⑦

Press the key to enter the operation

date setting mode.

≪Note≫

・Up to 24 sets of settings are possible.

・Switching between timer operation and pulse-output operation will clear the

operation start time, operation day, and pulse width settings.

・pulse-output operation and timer operation cannot be used at the same time.

⑨Press the Key. The Time Switch will

enter run mode and operation based on the

settings will start.

⑥Press the Key.

(Repeat steps ⑤ and ⑥

to make other settings if necessary.)

- 14 -

The color indicates flashing

⑧

Move the▼symbol to Saturday (or Sunday)

using the Key. Clear the operation day

indicator ( ) by pressing the Key.

Lit (Operation Day)

Not LIt (Non-operation Day)

WRITE

WRITE WRITE

MODE

m/ P WD

825

Ｐ

-- --

Ｐ

730

258

●

SU MO TU WE TH FR SA
