Omron H5F User Manual

-8 -
Ｐ．２３ Using the Out ON/OFF switch and the Write Key,
regardless of the settings, control output is held in the
ON state until the next OFF time.
• Operation after the output turns OFF (or ON) will be
determined by the settings.
•
This function can be used with pulse-output operation.
Override and automatic
return operation
Ｐ．１５
The Time Switch operates according to only some of the
settings on a user-specified day.
Example (Sunday selected as specified day):
Monday to Saturday: 8:00 to 12:00 (No. 1)
13:00 to 17:00 (No. 2)
Sunday: 8:00 to 12:00 (No. 1)
• The Time Switch cannot be set to operate only on a specified day.
• This function can be used with pulse-output operation.
Partial operation on specified day
Ｐ．１３
Ｐ．２１
It is possible to set a day in the current week on which
the Time Switch will not operate.When that day has
passed, operation will continue according to the regular
settings, and the Time Switch will operate as normal on
that day from the following week.
・This function can be used with pulse-output operation.
Holiday
−
Control output is continuously held in the ON
state, regardless of the settings, using the Out
ON/OFF switch.
Forced ON/OFF
Operation
Output turns ON for a fixed period (pulse) at the set
time.
• Pulse Width :1 to 59s,1 to 60 min
• One pulse-output operation set counts as one step.
• Up to 24 steps can be set.
Pulse-Output Operation
Ｐ．１１
Output control is determined by the ON/OFF time
settings.
• Minimum setting interval: 1 min
• One ON/OFF set counts as two steps.
• Up to 24 steps can be set.
Timer Operation
(ON / OFF)
Remarks
Explanation Operating function

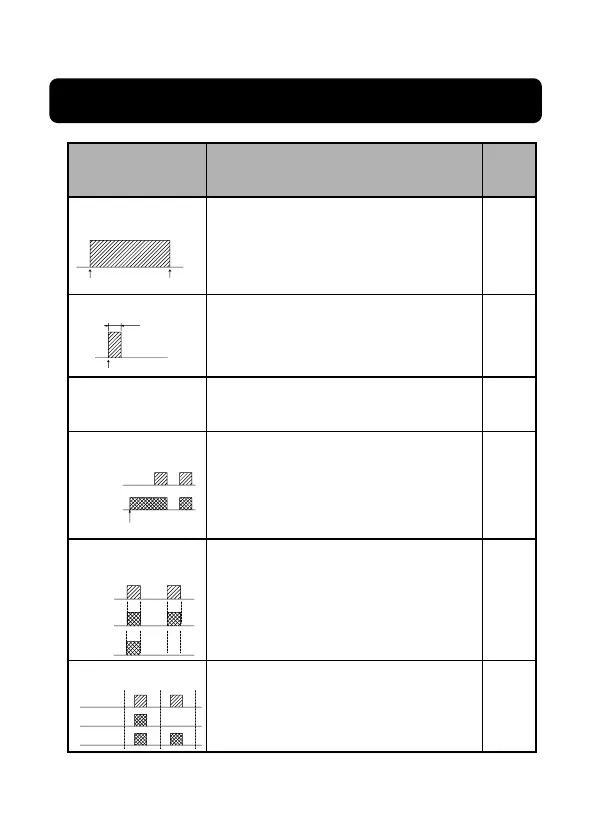

2. Operating Functions
ON time
ON time
Settings
Settings
Settings
Operation
day
Current
week
Following
week
Operation
day
Holiday
Specified
day
Program 1
(Specified)
Program 2
Output
Operation Start
OFF time
Pulse Width
