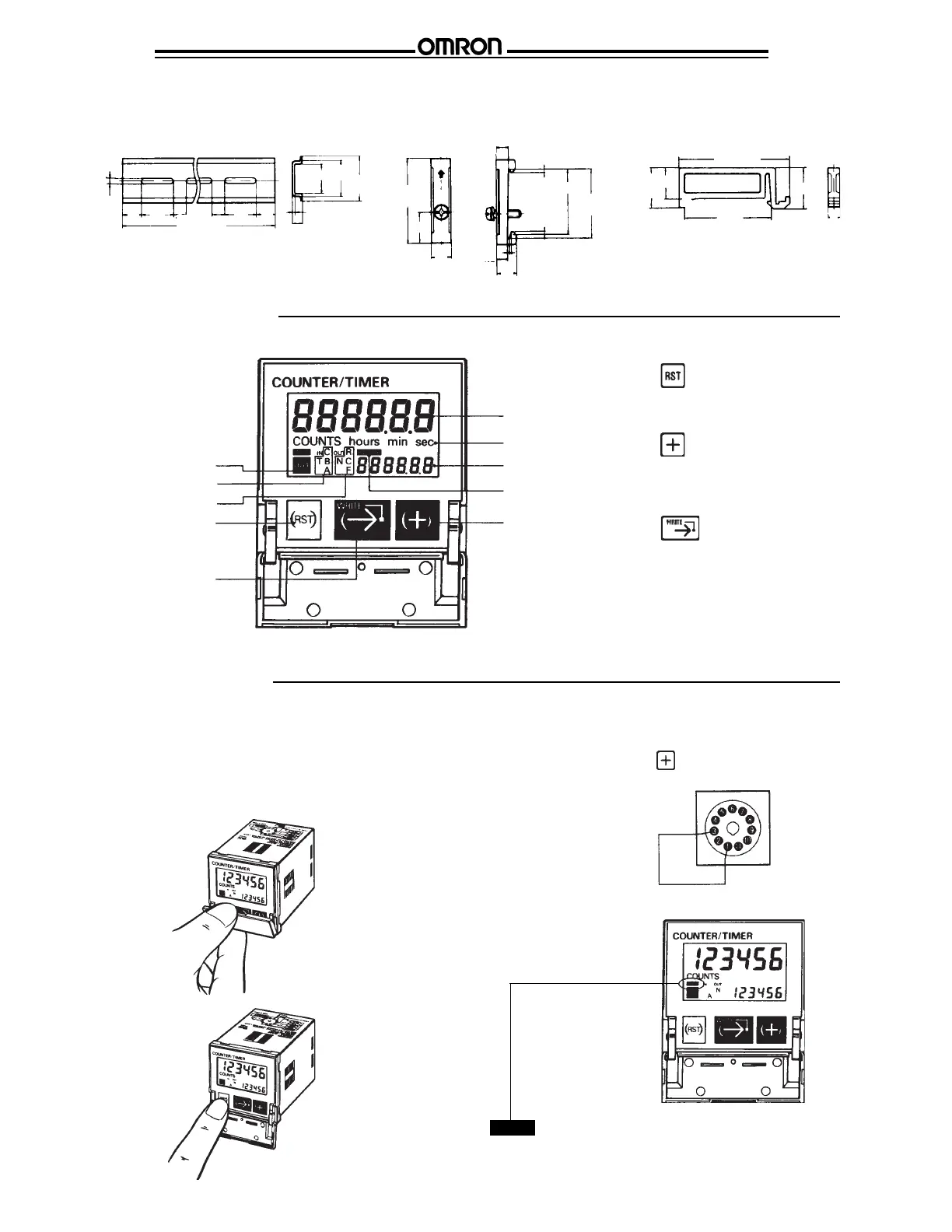

H8CA-S
6
H8CA-S
Programming
■ SELECTING FUNCTION MODE
Select timer or counter function first. It is not necessary for
power to be ON to set this function. When the H8CA-S is
shipped, it is set to counter function, input mode “A”, output
mode “N”, and preset value 1.
1. Terminals 1 and 3 must be connected to select timer or
counter function using the key.
MODE is lit. The function, input mode, or output mode display
will be blinking. (The Power OFF display will stop blinking when
power comes ON.)
Short circuit
■ MOUNTING TRACK AND ACCESSORIES
Nomenclature
Key function:
Resets the Present value
display and the output.
Sets the set value. Selects
timer or counter function, and
input and output modes.
Selects the function and mode,
and writes. Normally used to
write, or advance one column
when setting the set value.
Output display
Input mode display
Output mode display
Reset key
Advance/Write key
Present value display
Set value display
Power OFF display
Power OFF display
Setting key
PFP-100N/PFP-50N DIN Rail PFP-M End Plate PFP-S Spacer
4.5
(.18)
15
(.59)
25
(.98)
1000
[500]
10
(.39)
10
(.39)
25
(.98)
15
(.59)
50
(1.97)
10
(.39)
10
(.39)
1.5
35±0.3
24
27±0.15
7.3±0.13
11.5
6.2
(.24)
1.8
(.07)
37.3
(1.47)
35.3
1.8
1.3
4.8
34.8
(1.37)
16
(.63)
12
44.3 (1.74)
5
16.5
5
