Omron H8CA-SAL User Manual

7
H8CA-SH8CA-S
(Select counter
or timer function)
(For the counter
function, select
the input mode.)
(Select the
output mode.)
COUNTS
min
hours
sec
A
B
C
N
F
C
R
* Displayed automatically
when the timer function
is selected.
• Press the key until the
desired output mode appears.
• Press the key to write the
desired output mode.
• Press the key until the
desired input mode appears.
• Press the key to write
the desired input mode.
• Press the key until the
desired function appears.
• Press the key to write
the desired input mode.

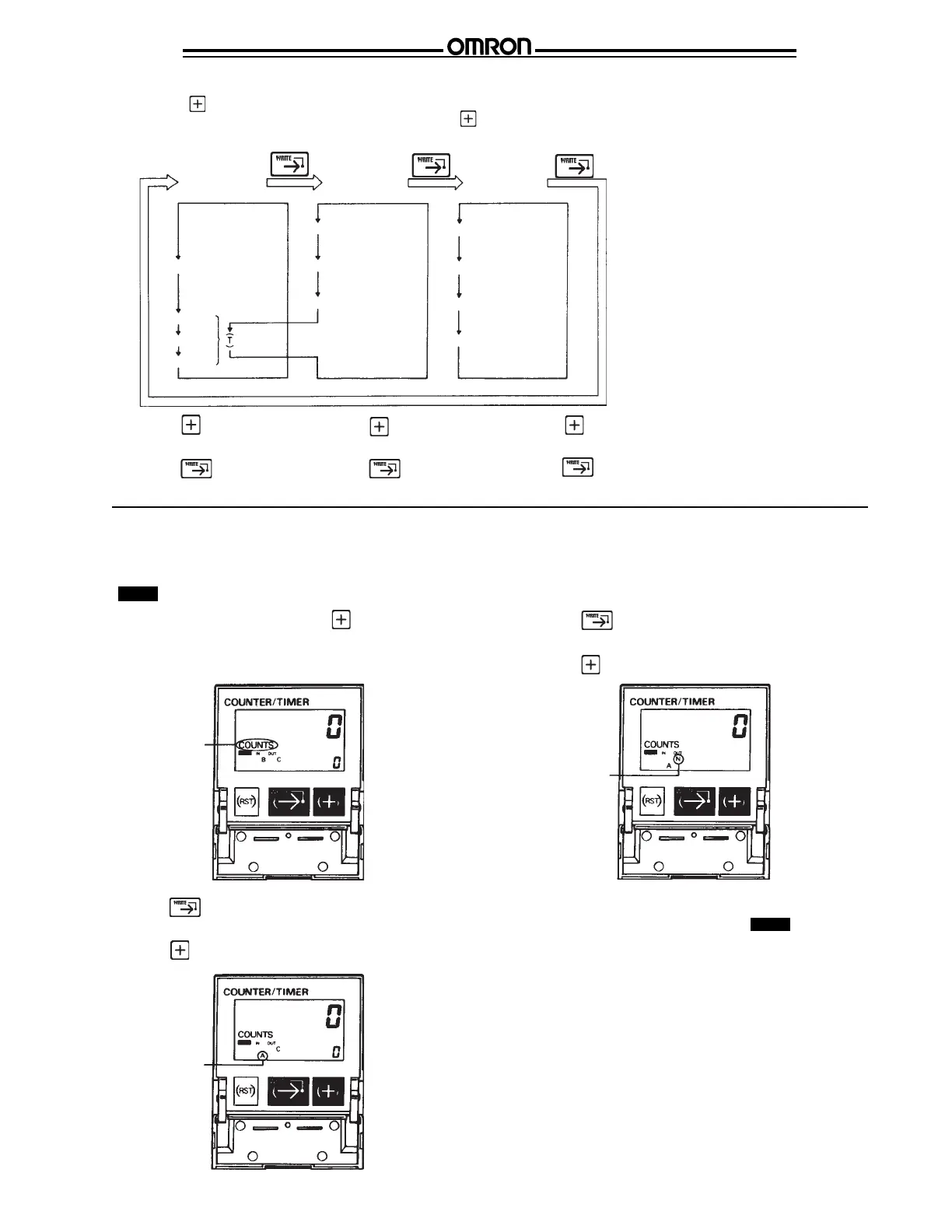

■ SETTING EXAMPLE
1. Selecting the counter function with input mode “A” and
output mode “N”. (Terminals 1 and 3 connected.)
“ MODE ” lights on the display.
“COUNTS” will begin blinking when the key is pressed.
(Press the keys until the desired place is reached.)
Press the key. “A” will stop blinking and one of the
output modes will begin blinking.
Press the key until output mode “N” begins blinking.
Blinking
Blinking
Press the key. “COUNTS” will stop blinking and one of the
input modes will be blinking.
Press the key until input mode “A” begins blinking.
Blinking
2. Press the key to select counter or timer function, input mode,
and output mode. The characters below will flash when the key
is pressed.
Disconnect terminals 1 and 3 before setting values. When
terminals 1 and 3 are disconnected, the “ MODE ” display will
turn OFF and output mode “N” will stop blinking.
Always disconnect terminals 1 and 3 when finished selecting
the function. Values cannot be preset if terminals 1 and 3 are
connected.
