Omron Micro A-I-R NE-U22 User Manual

How to Fill the Medication
10

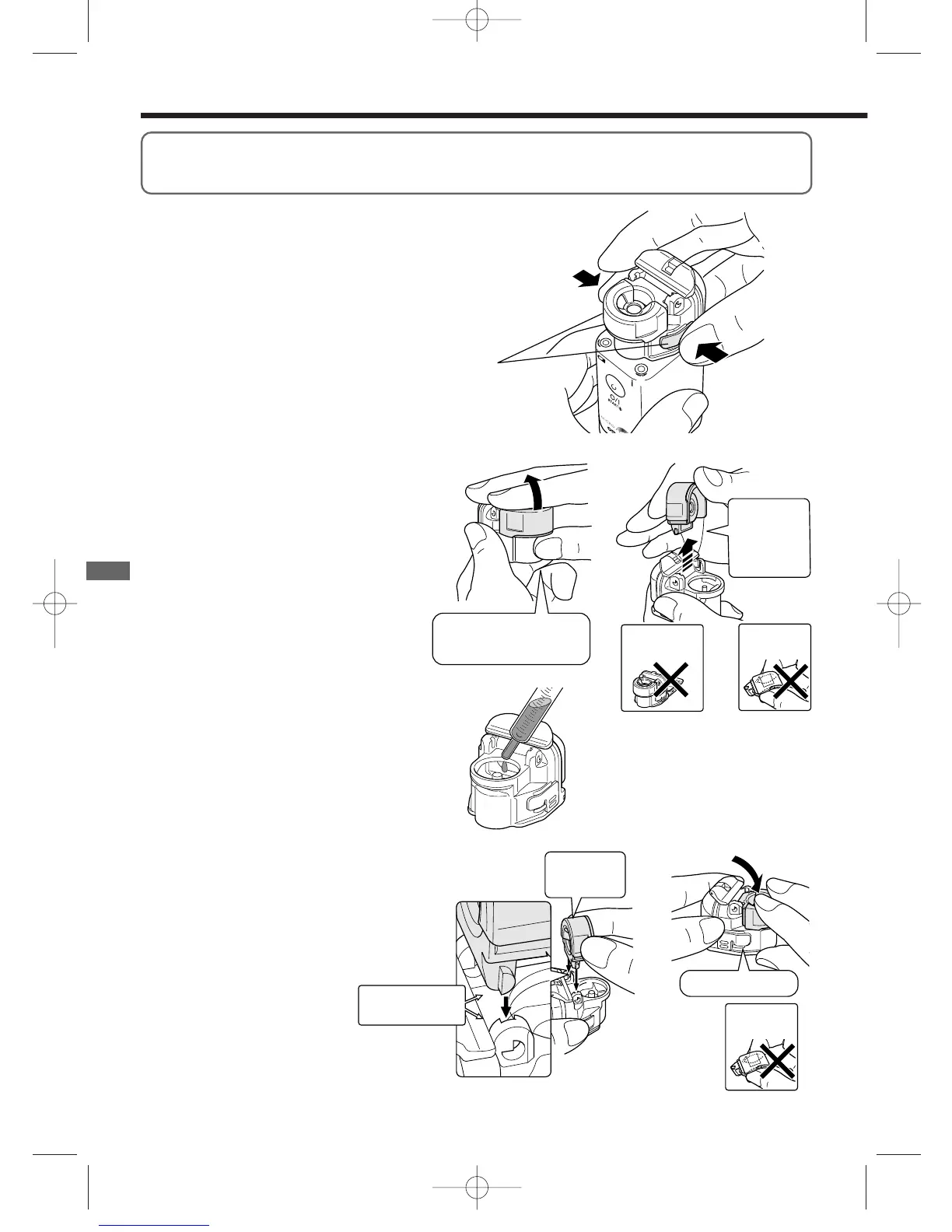

Correct Use of the Unit How to Fill the Medication
1 Remove the Medication
Bottle from the Main Unit.
Lift up the Medication Bottle by
pushing in the Medication Bottle
Disengaging Buttons on both sides
and releasing the engagement.
2 Remove the Mesh Cap.
Hold the Medication Bottle as if by
covering it with your hand.
3 Fill the medication.
Fill the medication as shown in the
Figure.
- The maximum capacity of
Medication Bottle is 7 ml.
4 Install the Mesh Cap.
- If the Mesh Cap is not securely
closed, medication may leak.
Medication Bottle
Disengaging Button
Insert the Mesh Cap
perpendicular to the
Medication Bottle.
Do not insert your
finger into the
Nebulization Port.
Do not open
the Bottle Cap.
Remove the Mask Adapter, Mouthpiece, or Inhalation Mask (S), then fill the
medication.
Lift up the Mesh Cap by
applying your thumb on
the brim.
Lift up the
Mesh Cap
perpendicular
to the
Medication
Bottle.
Align these points,
then push in as far
as it goes.
Close the Mesh Cap
securely.
Do not insert your
finger into the
Nebulization Port.
EN-p2-20-(NE-U22)-3 3/25/02 4:48 PM Page 10

Omron Micro A-I-R NE-U22 Specifications

Power

power source	3 VDC (two AA alkaline batteries), 2.4 VDC (two AA nickel-hydrogen batteries)
power consumption	1.5 W

Technical Specifications

ultrasonic frequency	180 kHz
nebulization rate	0.25 ml / minute or more
particle size	5 µm

Capacity and Dimensions

medication bottle capacity	7 ml
external dimensions	38 (W) x 104 (H) x 51 (D) mm
weight	97 g

Battery and Operating Life

battery life with continuous nebulization	4 hours
battery life with daily use	8 days
operating temperature	10 to 40°C
