Omron Micro A-I-R NE-U22 User Manual

How to Assemble the Main Unit
6
Before Using the UnitHow to Assemble the Main Unit
First, check how to assemble the unit.
You must assemble the unit before starting to use it.
You may find the parts slightly hard to assemble because they are made to
prevent the medication from leaking.

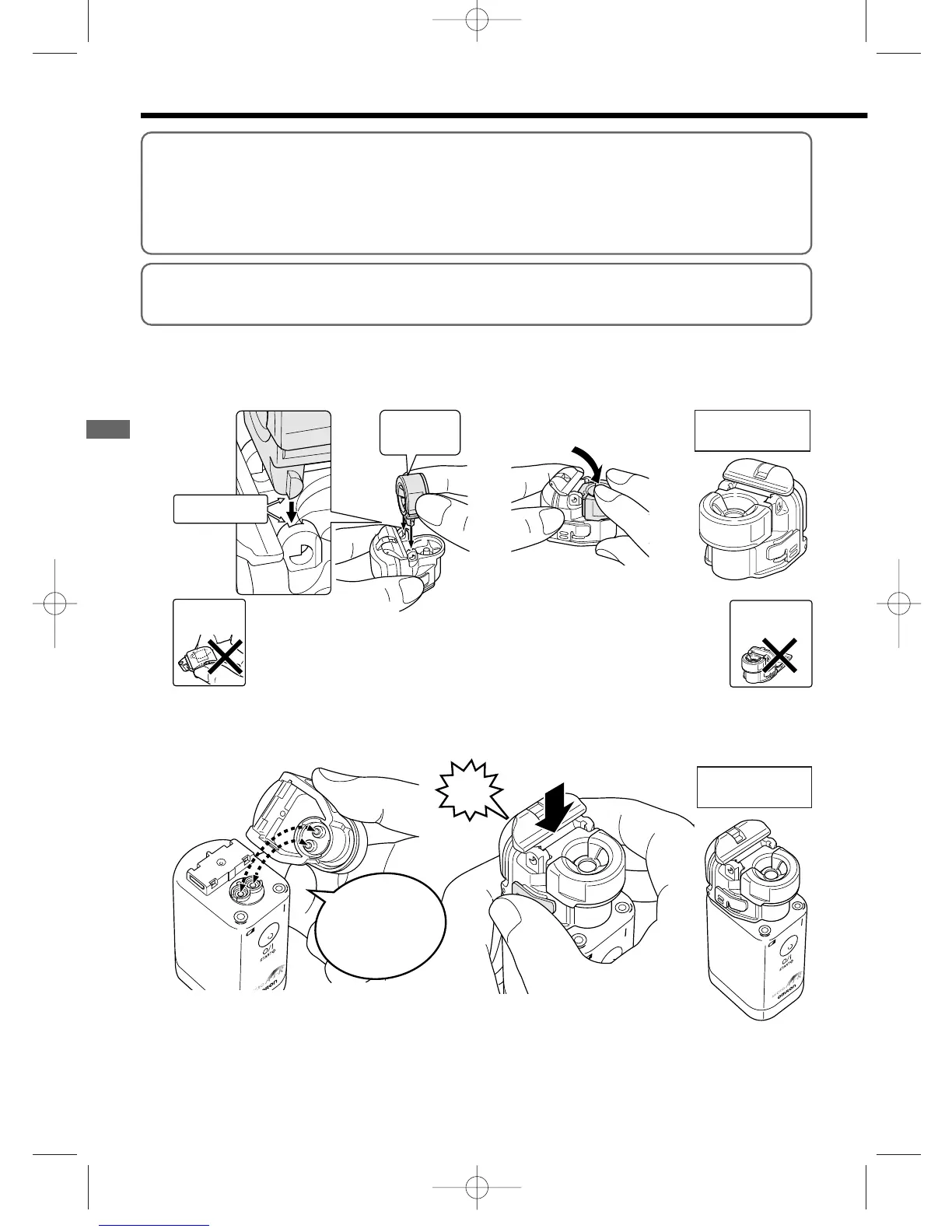

1 Install the Mesh Cap on the Medication Bottle.
- Do not insert the Mesh Cap in the opposite direction.
2 Install the Medication Bottle to the Main Unit.
Installation is
complete.
Installation is
complete.
Do not open
the Bottle Cap.
Do not insert your
finger into the
Nebulization Port.
Insert the Mesh Cap
perpendicular to the
Medication Bottle.
Align these points.
Clicks.
Align both
Electrodes with
each other.
Be sure to clean and disinfect the unit before using. Dry the unit after cleaning
and disinfecting. (Refer to Pages 14 to 16.)
Securely close the
Mesh Cap and the
Medication Bottle.
Install the Medication
Bottle to the Main Unit.
- If carrying the unit after the Medication Bottle is installed,
hold on the Main Unit. Do not hold on the Medication Bottle.
EN-p2-20-(NE-U22)-3 3/25/02 4:48 PM Page 6

Omron Micro A-I-R NE-U22 Specifications

Power

power source	3 VDC (two AA alkaline batteries), 2.4 VDC (two AA nickel-hydrogen batteries)
power consumption	1.5 W

Technical Specifications

ultrasonic frequency	180 kHz
nebulization rate	0.25 ml / minute or more
particle size	5 µm

Capacity and Dimensions

medication bottle capacity	7 ml
external dimensions	38 (W) x 104 (H) x 51 (D) mm
weight	97 g

Battery and Operating Life

battery life with continuous nebulization	4 hours
battery life with daily use	8 days
operating temperature	10 to 40°C
