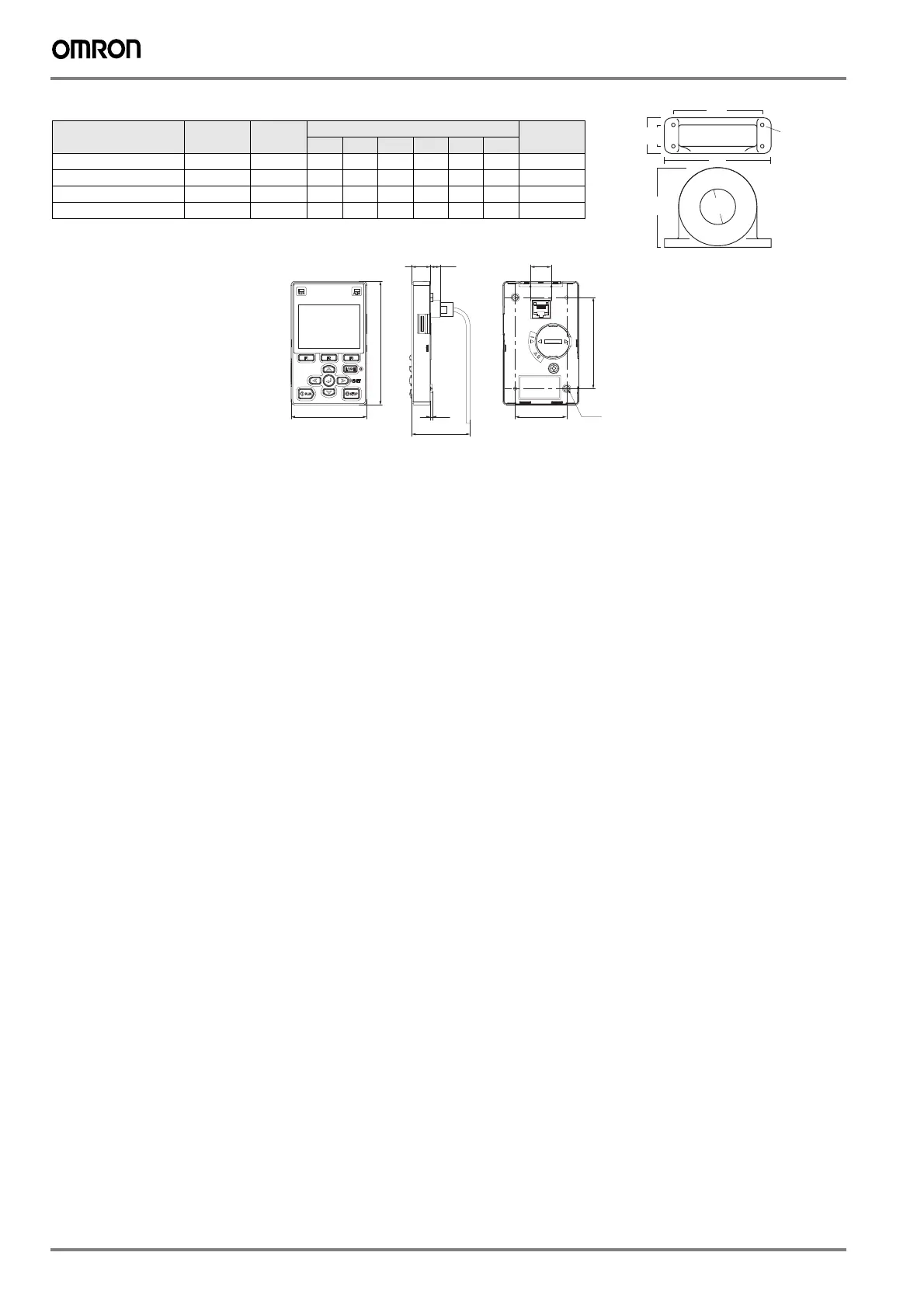

Omron Q2A Series User Manual

8 Frequency inverters
Chokes
LCD keypad
Reference
D
(diameter)
Motor
(kW)
Dimensions (mm)
Weight
(kg)
L W H X Y m
AX-FER2102-RE 21 < 2.2 85 22 46 70 - 5 0.1
AX-FER2515-RE 25 < 15 105 25 62 90 - 5 0.2
AX-FER5045-RE 50 < 45 150 50 110 125 30 5 0.7
AX-FER6055-RE 60 ≥ 55 200 65 170 180 45 6 1.7
X
H
YW
Ø m
L
Ø d
65
106
16 8.2
1.6
53.8 min
15
44
78
2-M3
