Onkyo BD-SP308 User Manual

11
En
Installation
Connecting to Your TV
Make one of the following connections, depending on the
capabilities of your existing equipment.
• HDMI connection (➔ 11)
• Component Video connection (➔ 12)
• Video/Audio (Left/Right) Connection (➔ 13)
Note
• Depending on your TV and other equipment you wish to con-
nect, there are various ways you could connect the player. Use
only one of the connections described in this manual.
• Please refer to the manuals of your TV, Stereo System or other
devices as necessary to make the best connections.
• Do not connect the player’s ANALOG AUDIO OUTPUT jack
to the phono in jack (record player) of your audio system.
• Do not connect your player via your VCR. The image could be
distorted by the copy protection system.

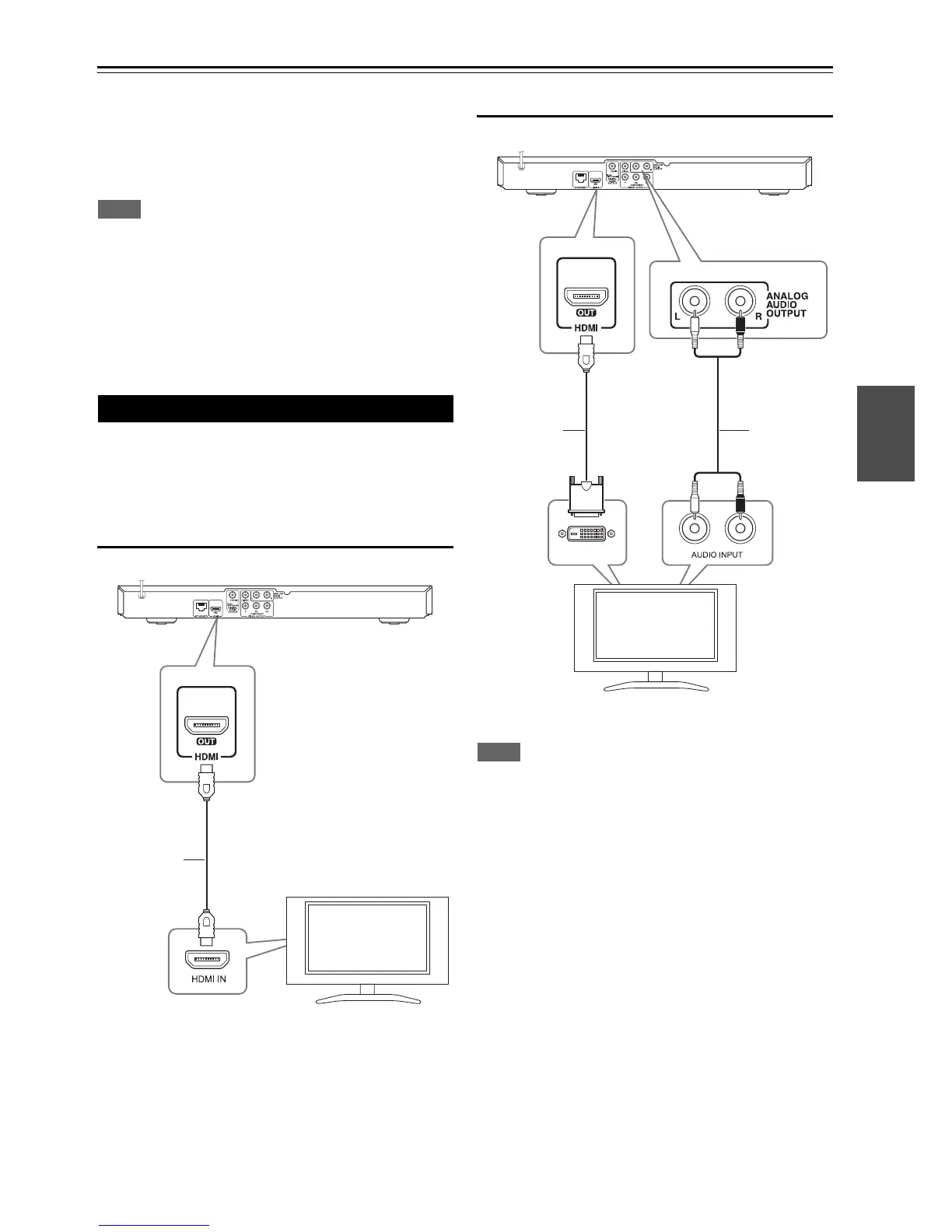

If you have a HDMI TV or monitor, you can connect it to
this player using a HDMI cable (Type A, Version 1.3).
Connect the HDMI jack on the player to the HDMI OUT
jack on a HDMI compatible TV or monitor.
HDMI Connection
Set the TV’s source to HDMI (refer to TV’s Owner’s man-
ual).
HDMI-DVI Connection
Note
• If a connected HDMI device does not accept the audio output of
the player, the HDMI device’s audio sound may be distorted or
may not output.
• When you use HDMI connection, you can change the resolution
for the HDMI output. Refer to “Resolution Setting” (➔ 13).
• Select the type of video output from the HDMI OUT jack using
“HDMI Color Setting” option on the “Setup” menu (➔ 20).
• Changing the resolution when the connection has already been
established may result in malfunctions. To solve the problem,
turn off the player and then turn it on again.
• When the HDMI connection with HDCP is not verified, TV
screen is changed to black screen. In this case, check the HDMI
connection, or disconnect the HDMI cable.
• If there are noises or lines on the screen, please check the HDMI
cable (length is generally limited to 4.5 m).
HDMI Connection
this unit
HDMI cable
TV
LR
DVI IN
this unit
Audio cable
TV
HDMI-DVI
cable

Onkyo BD-SP308 Specifications

General

Dynamic range (1kHz)	86 dB
Frequency response CD	4 - 20000 Hz
Frequency response DVD	4 - 44000 Hz
Signal-to-Noise Ratio (SNR)	100 dB
Backlight color	Orange
Disc types supported	BD-R, BD-RE, BD-ROM, CD, CD-R, CD-RW, DVD, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW
Optical disc diameter	120 mm
Number of optical discs	1 discs
Depth	209 mm
Width	435 mm
Height	53 mm
Weight	2000 g
Device type	DVD player
Form factor	Set-top
Ethernet LAN	Yes
HDMI version	1.3a
Package depth	298 mm
Package width	520 mm
Package height	129 mm
Package weight	3000 g
AC input voltage	200-240 V
AC input frequency	50 - 60 Hz
Supported video modes	1080i, 1080p, 576p, 720p
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio formats supported	MP3, WMA
Image formats supported	JPG, PNG
Video formats supported	DIVX
Analog signal format system	NTSC, PAL
Operating temperature (T-T)	5 - 35 °C
Power consumption (standby)	0.1 W
Power consumption (typical)	20 W
Operating relative humidity (H-H)	5 - 90 %
