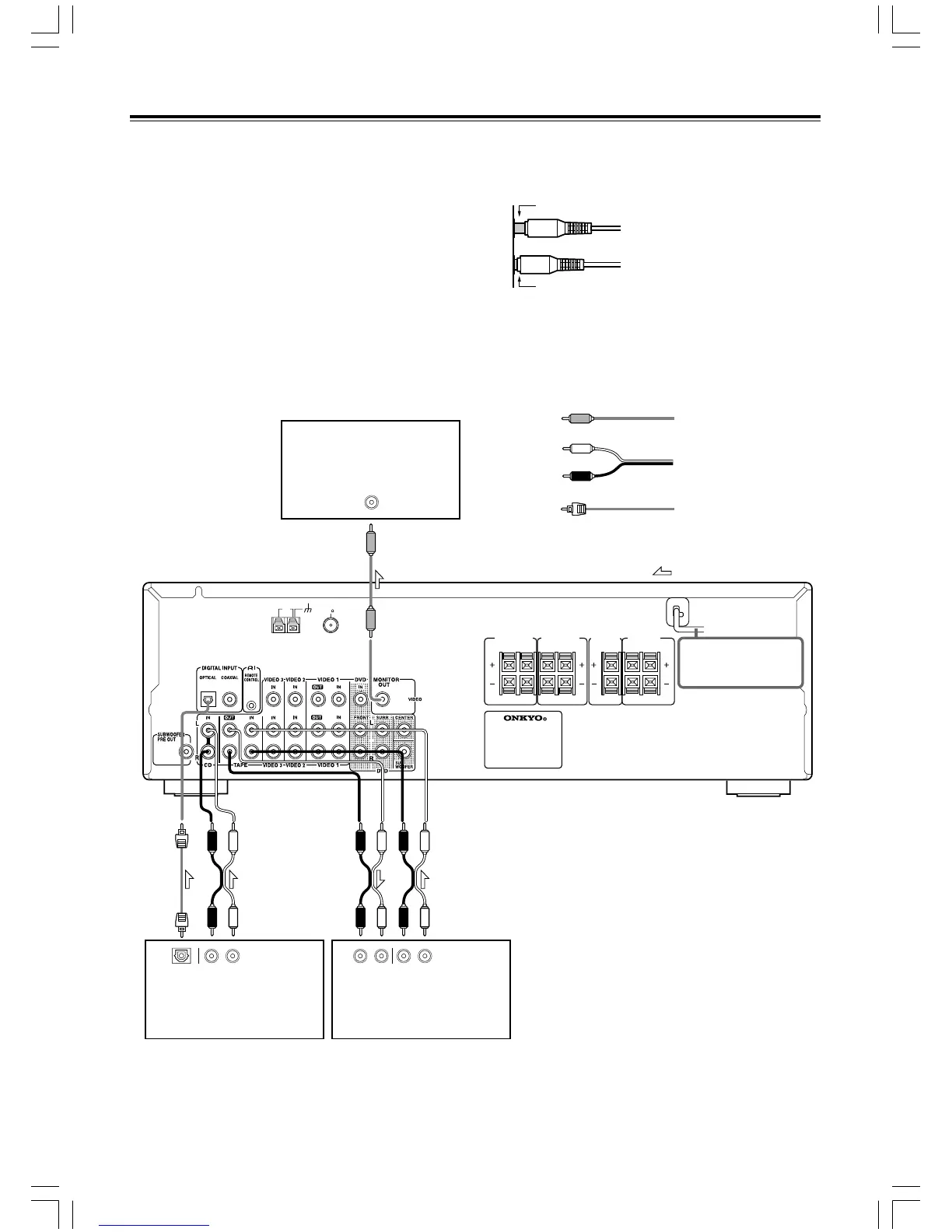

Connecting to audio/video equipment
Audio connection cable
(Analog signal)
Optical fiber cable
(Digital signal)
Optical plug
Signal flow
Audio (R)
Cassette Tape deck, MD recorder,
DAT deck, CD recorder (TAPE)
CD player (CD)
TV monitor or Projector
(MONITOR OUT)
Video connection cable
(Analog signal)
VIDEO
Before connecting
• Be sure to always refer to the instruction manual that came
with the component that you are connecting.
• Do not plug in the power cord until all connections have
been made.
• For input jacks, red connectors are used for the right
channel, white connectors are used for the left channel, and
yellow connectors are used for video connection.
Improper connection
Inserted completely
• To connect the digital output from a component
connected to the TAPE jacks to this unit, use the
OPTICAL or COAXIAL input jack.
In this case, it is required to change the assignment of
digital inputs to input sources by referring to “Setting the
digital inputs” on page 21.
• The TAPE OUT jack does not output the signal input
from the DIGITAL INPUT jack. (The digital signal is not
converted into an analog signal.)
• To connect the digital output from CD player connected
to the CD jacks to this unit, use the OPTICAL input jack.
To connect the digital output to the COAXIAL input jack
of this unit, it is required to change the assignment of
digital inputs to input sources by referring to “Setting the
digital inputs” on page 21.
DO NOT connect the
power cord at this
time.
Audio (L)
• Insert all plugs and connectors securely. Improper connections
can result in noise, poor performance, or damage to the
equipment.
• Do not bind audio connection cables with power cords and
speaker cables. Doing so may adversely effect the sound
quality.
