Connections for remote control ( )
Notes
• Connect the plugs securely.
• Be sure to connect to the
connectors using the cable.
• For proper operation the audio connection cables must be
connected. This applies to both remote and standard operation.
• If a component has two
terminals, you can use either one to
connect to the HT-R320. The other one can be used to daisy
chain with another component.
• With Onkyo DVD players, you can enter the manufacturer code
so that you can operate the DVD player directly with the remote
controller without connecting the
terminals (see page 33).
• Do not connect the AV Receiver’s
connector to any
component other than an Onkyo product. It may cause
malfunction.
• Certain component models may not be able to control the
HT-R320.

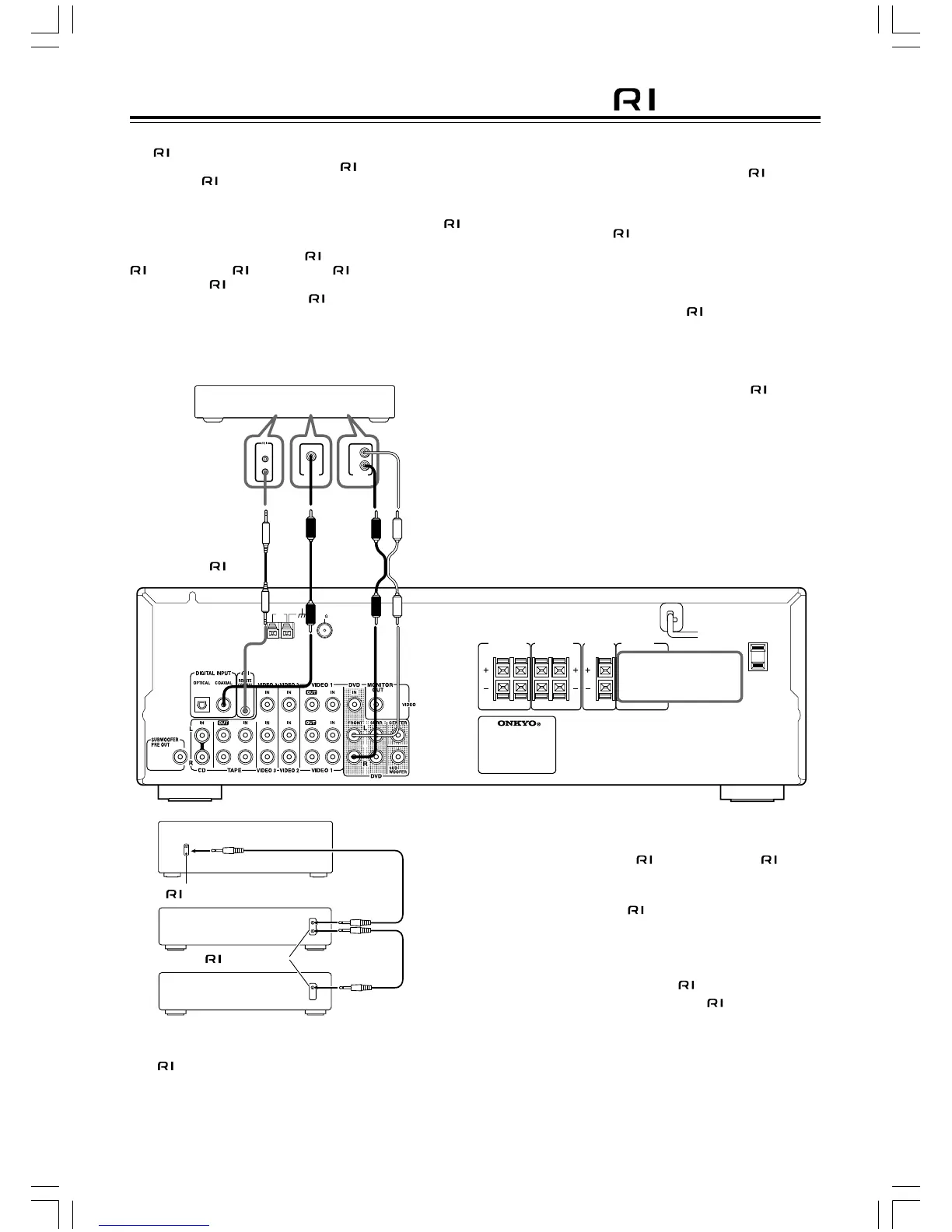

Example: Onkyo DVD Player
RLRL
FRONT
SPEAKERS A
FRONT
SPEAKERS B
RL
SURROUND
SPEAKERS
CENTER
SPEAKER
AC OUTLET
ANTENNA
FM
75
AM
REMOTE
CONTROL
L
R
ANALOG
OUTPUT
DIGITAL
OUTPUT
COAXIAL
Be sure to connect using
the audio connection
cable.
The terminal on the HT-R320 is for connecting other Onkyo
components equipped with the same
terminal. When a
component is
-connected, you can point the remote controller
supplied with the HT-R320 at the sensor on the HT-R320 and
operate that component without having to switch remote
controllers. In addition, by connecting components to the
terminal, you can also perform the system operation given below.
To connect components using the
terminal, simply connect a
cable from this terminal to the terminal of the other
component. An
cable comes with every cassette tape deck, CD
player, and DVD player that has an
terminal.
DO NOT connect the
power cord at this
time.
Power on/ready function
When the HT-R320 is in the standby state, if an -connected
component is turned on, then the HT-R320 also turns on and the
input source selected at the HT-R320 automatically switches to that
component.
If the power cord for an
-connected component is connected to
the AC OUTLET on the HT-R320, or if the HT-R320 is turned on,
this function will not work.
Direct change function
When the play button is pressed at an -connected component,
the input source selected at the HT-R320 automatically changes to
that component.
Power off function
When the HT-R320 is placed in the standby state, all -connected
components are also automatically put in the standby state.
cable
Connection example when there is more
than one Onkyo components equipped with
terminals
HT-R320
connector
Ex: Onkyo DVD player
Ex: Onkyo cassette tape
deck
connector
To Next Page
