Getting to Know Your Speaker Package
1
STANDBY/ON indicator
Red: Subwoofer in standby mode
Green: Subwoofer on
With the Auto Standby function, the SKW-320X automatically turns on when an input signal is detected in
Standby mode. When there’s no input signal for a while, the SKW-320X automatically enters Standby mode.
2
OUTPUT LEVEL control
This control is used to adjust the volume of the subwoofer.
3
LINE INPUT
This RCA input should be connected to the subwoofer preout on your AV receiver, or other receiver with supplied
RCA cable.
Note:
The Auto Standby function turns the subwoofer on when the input signal exceeds a certain level. If the Auto Standby
function does not work reliably, try slightly increasing or decreasing the subwoofer output level on your receiver or amp.
1
Speaker terminals
These push terminals are for connecting the speaker to your HT-R320, or other receiver with the supplied speaker
cables. The supplied speaker cables are color-coded for easy identification. Simply connect each cable to the same
colored positive speaker terminal.
2
Keyhole slot
These keyhole slots can be used to wall-mount the speaker.

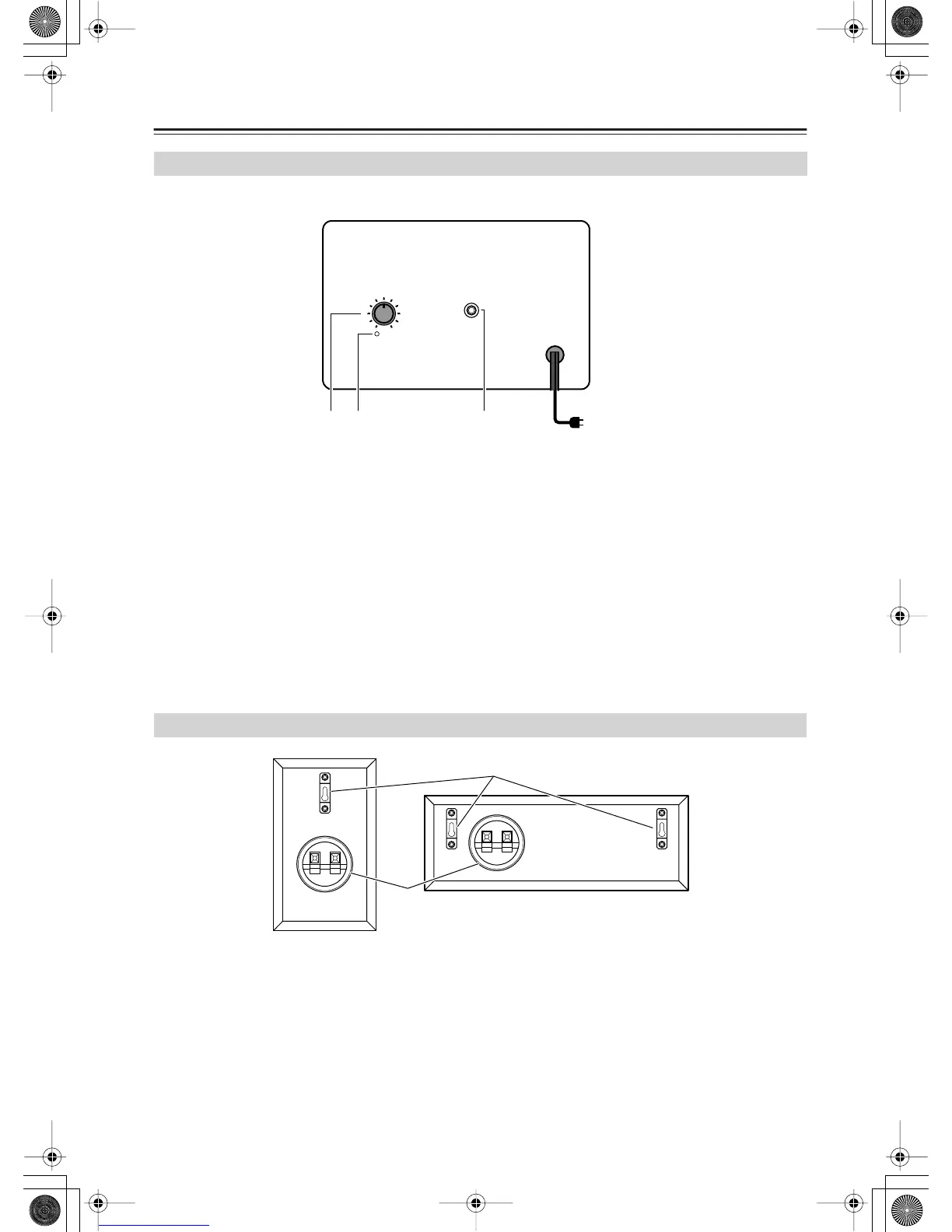

Subwoofer (SKW-320X)
OUTPUT
LEVEL
LINE
INPUT
MIN
MAX
RED
:
STANDBY
GREEN
:
ON
2 13
■ Rear
To AC outlet
Front, Center & Surround Speakers (SKF-320F, SKC-320C, SKM-320S)
2
1
■ Rear
To Next Page
