Connecting the AV Receiver/AV Amplifier—Continued

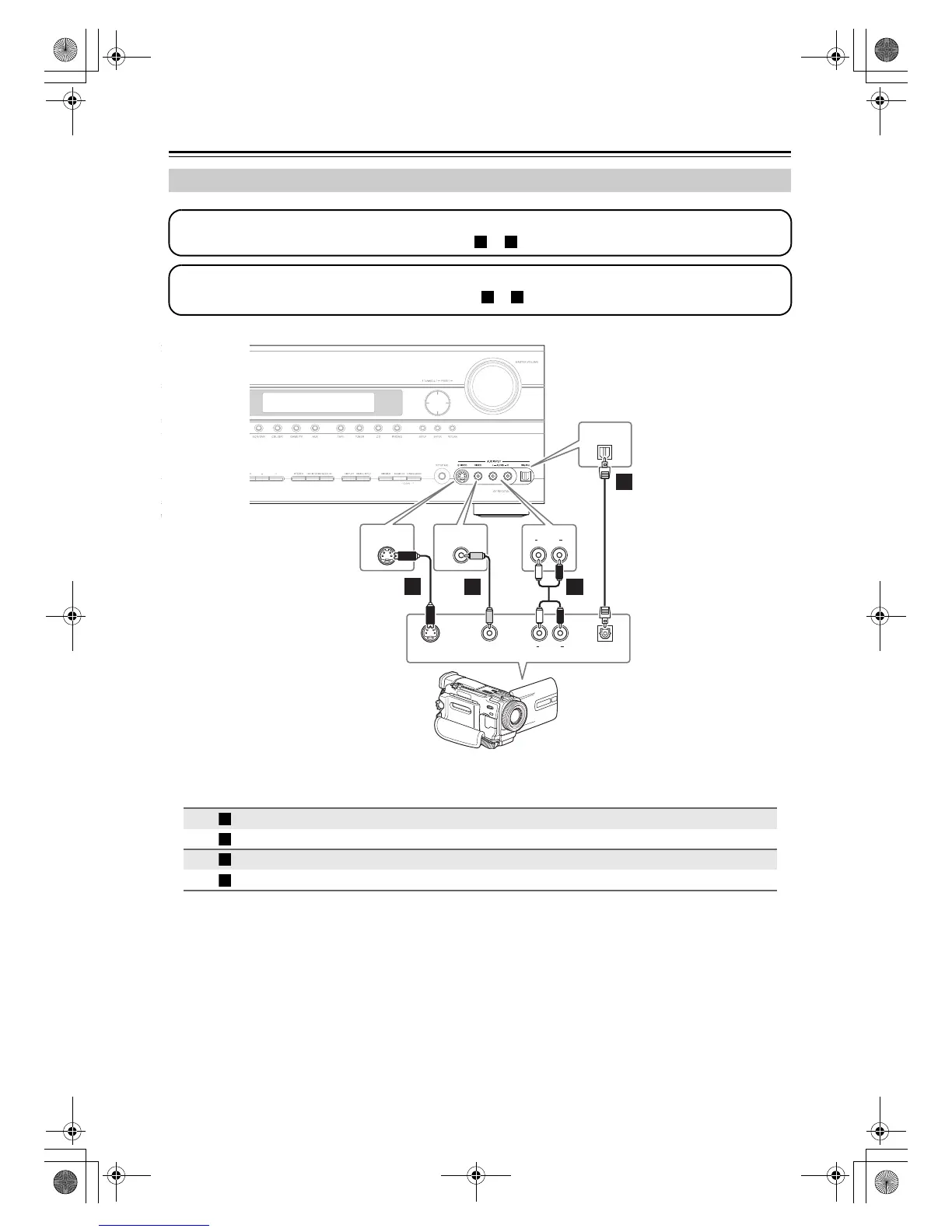

Connecting a Camcorder or Other Device
Connection AV receiver/AV amplifier Signal flow Camcorder or console
AUX INPUT S VIDEO
⇐
S-Video output
AUX INPUT VIDEO
⇐
Composite video output
AUX INPUT L/R
⇐
Analog audio L/R output
AUX INPUT DIGITAL
⇐
Digital optical output
Step 1: Video Connection
Choose a video connection that matches the camcorder ( or ), and then make the connection.
A B
Step 2: Audio Connection
Choose an audio connection that matches the camcorder ( or ), and then make the connection.
a b
DIGITAL
S VIDEO
OPTICAL
OUT
AUDIO
VIDEO
LR
S VIDEO
OUT
AUDIO
OUT
VIDEO
OUT
LR
AUX INPUT
AUX INPUT
AUX INPUT
AUX INPUT
A
a
b
B
Camcorder, etc.
A
B
a
b
TX-SR705_En.book Page 36 Monday, May 28, 2007 2:13 PM
