42

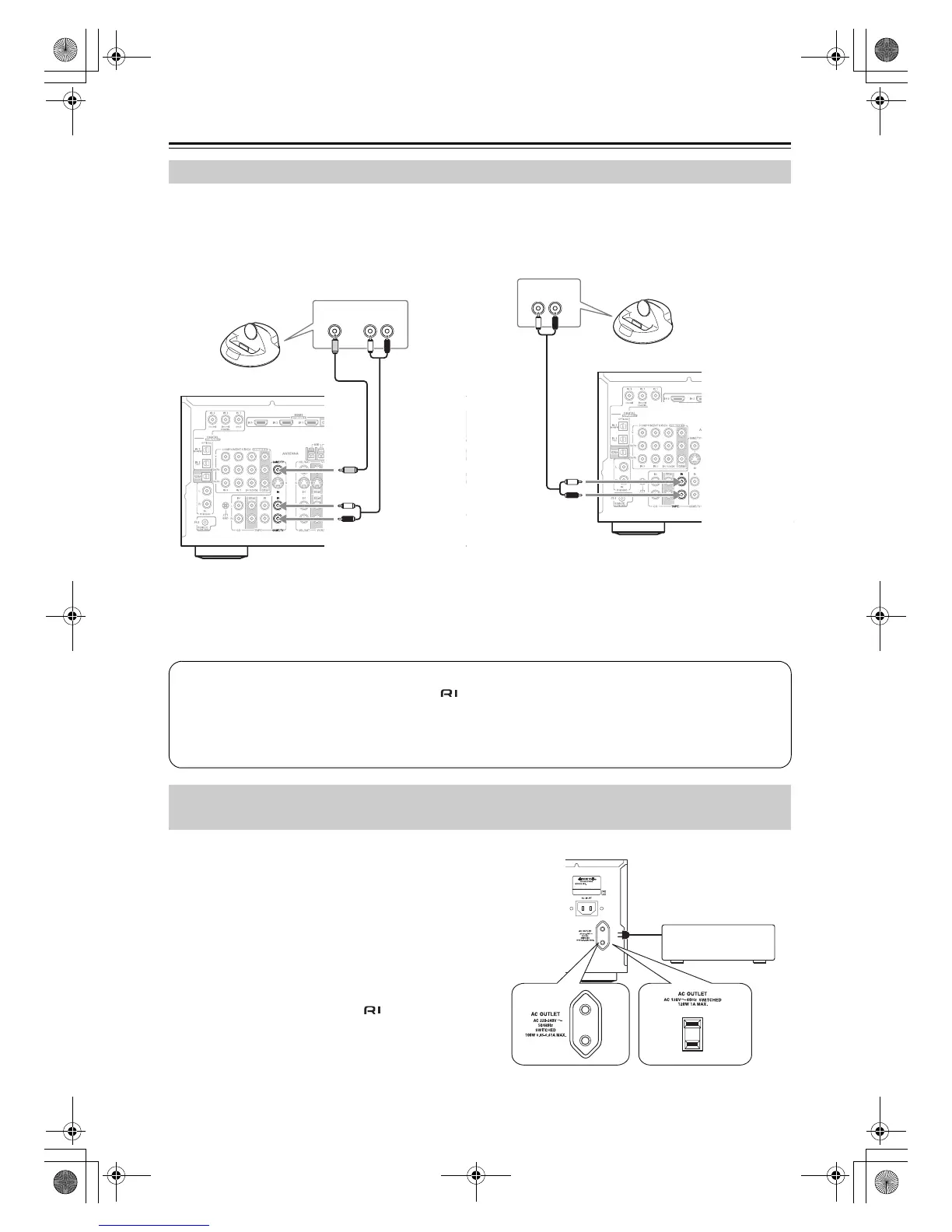

Connecting the AV Receiver/AV Amplifier—Continued
■ RI Dock with video
Connect your RI Dock’s analog audio output jacks
and Video output jack to the AV receiver/AV ampli-
fier’s GAME/TV IN L/R jacks and GAME/TV IN V
jack. (Onkyo DS-A2 hookup shown below.)
■ RI Dock without video
Connect your RI Dock’s analog audio output jacks to
the AV receiver/AV amplifier’s TAPE IN L/R jacks.
(Onkyo DS-A2 hookup shown below.)
■ If you have an Onkyo DS-A1 RI Dock
• Connect its video output jack to the AV receiver/AV amplifier’s GAME/TV IN S jack.
• Enter the appropriate remote control code before using the AV receiver/AV amplifier’s remote controllers for the first
time (see page 104).
The AV receiver has AC outlets on its rear panel that can
be used to connect the power cords of other components
that you intend to use with the AV receiver. These com-
ponents can then be left turned on so that they turn on
and off as and when the AV receiver is set to On or
Standby.
Caution:
• Make sure that the total capacity of the components
that you connect to the AC OUTLETS does not
exceed the stated capacity (e.g., TOTAL 120 W).
Notes:
• Onkyo components connected via should be con-
nected directly to a wall outlet, not an AC OUTLET
on the AV receiver.
• The number of AC OUTLETS, socket type, and total
capacity depends on the country in which you pur-
chased the AV receiver.
Connecting an RI Dock
AUDIO
OUT
LR
VIDEO
OUT
AUDIO
OUT
LR
Notes:
• Connect the Remote Interactive Dock with an cable (see page 43).
• Set the Remote Interactive Dock’s RI MODE switch to HDD or HDD/DOCK.
• Set the AV receiver/AV amplifier’s input display to DOCK (see page 50).
• Refer to the Remote Interactive Dock’s instruction manual.
Connecting the Power Cords of Other Components (North American and
European models only)
European model North American model
TX-SR705_En.book Page 42 Thursday, May 31, 2007 4:59 PM
