Onkyo T-405X User Manual

20
T-405X
FM STEREO / AM TUNER
MEMORYTIMERBAND CLEAR
AUTO/ MONO
STANDBY/ON
TUNING
PRESET
CHARACTERDISPLAY
CHARACTER
√PRESET®MEMORY
5 When you finish entering all nec-
essary characters, press the CHAR-
ACTER button to complete the op-
eration.
STEREO
AUTO
CHARACTER
Note
If you have not pressed any button for 16 seconds
during the procedure, the operation will complete
automatically.

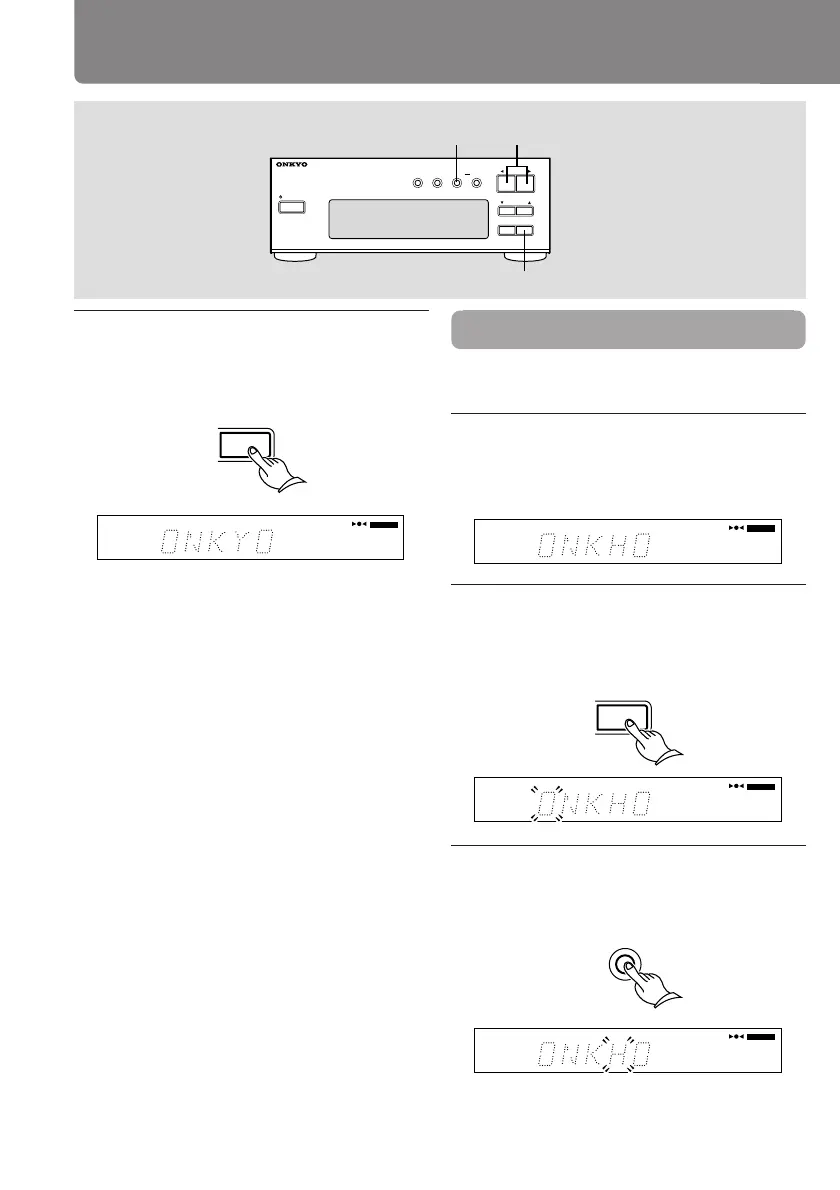

Changing the existing characters
Follow the procedure below to change the existing
characters or rename the preset station.
1 Select the station you wish to
modify. (See “Selecting preset stations”
on page 18.)
STEREO
AUTO
2 Press the CHARACTER button.
The T-405X enters character input mode, and
the first character flashes.
STEREO
AUTO
CHARACTER
3 Press the MEMORY button repeatedly
until the character that you want to
change flashes.
STEREO
AUTO
MEMORY
Note
You can use the TUNING † or π button
instead of the MEMORY button.
Naming preset stations

Onkyo T-405X Specifications

FM Specifications

FM tuning range (U.S. & Canadian models)	87.90 – 107.90 MHz, 200 kHz steps
FM tuning range (Other area models)	87.50 – 108.00 MHz, 50 kHz steps
FM usable sensitivity (Mono)	12.8 dBf 1.2 µV, 75 Ohms IHF
FM usable sensitivity (Stereo)	19.2 dBf 2.5 µV, 75 Ohms IHF
FM 50dB quieting sensitivity (Mono)	18.0 dBf 2.2 µV, 75 Ohms
FM 50dB quieting sensitivity (Stereo)	38.0 dBf 22 µV, 75 Ohms
FM capture ratio	1.5 dB
FM image rejection ratio	85 dB
FM IF rejection ratio	90 dB
FM signal-to-noise ratio (Mono)	73 dB IHF
FM signal-to-noise ratio (Stereo)	66 dB IHF
FM selectivity	50 dB DIN (±300 kHz, 40 kHz dev.)
FM AM suppression ratio	50 dB
FM total harmonic distortion (Mono)	0.5%
FM total harmonic distortion (Stereo)	0.8%
FM frequency response	30 – 15, 000 Hz (±1.5 dB)
FM stereo separation	40 dB at 1 kHz, 30 dB at 70 – 10, 000 Hz
FM output level (U.S. & Canadian models)	0.5 V
FM output level (Other area models)	0.75 V
FM muting level	17.2 dBf 2.0 µV, 75 Ohms

AM Specifications

AM tuning range	530 – 1, 710 kHz, 10 kHz steps
AM usable sensitivity	30 µV
AM image rejection ratio	30 dB
AM IF rejection ratio	40 dB
AM signal-to-noise ratio	40 dB
AM total harmonic distortion	0.8%
AM output level	0.15 V

General Specifications

Power supply (AC 120 V)	60 Hz
Power supply (AC 230 V)	50 Hz
Power consumption	9 W
Dimensions	205 × 76 × 279 mm
Dimensions (inches)	8-1/16" × 3" × 11"
Weight	1.7 kg
Weight (lbs)	3.7 lbs.
