Onkyo TX SR308 User Manual

14
En
Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ 29).
Refer to “About HDMI” (➔ 49) and “Using an RIHD-compatible TV, Player, or Recorder” (➔ 50).
Tip
To listen to audio received by the HDMI IN jacks through your TV’s speakers:
• Set the “TV Control” setting to “On” (➔ 33) for an p-compatible TV.
• Set the “Audio TV OUT” setting to “On” (➔ 32) when the TV is not compatible with p or the “TV Control” setting to “Off”.
• Set your Blu-ray Disc/DVD player’s HDMI audio output setting to PCM.
• To listen to TV audio through the AV receiver, see “Connecting External Components” (➔ 15).
Note
• When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV
screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to
another input source, this may result in no sound from the AV receiver or the sound may be cut off.
• When the “Audio TV OUT” setting is set to “On” (➔ 32) to hear from your TV’s speakers, by controlling the AV receiver’s volume,
the sound will be output from the AV receiver’s speakers, too. When the
“TV Control” setting is set to “On” (➔ 33) to hear from
speakers of p-compatible TV, by controlling the AV receiver’s volume, the AV receiver’s speakers will produce sound while the
TV’s speakers are muted. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn
down the AV receiver’s volume.
■ Audio return channel (ARC) function
Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the
AV receiver. To use this function, you must select the TV/CD input selector.
• To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and “HDMI
Control” is set to “On” (➔ 33).

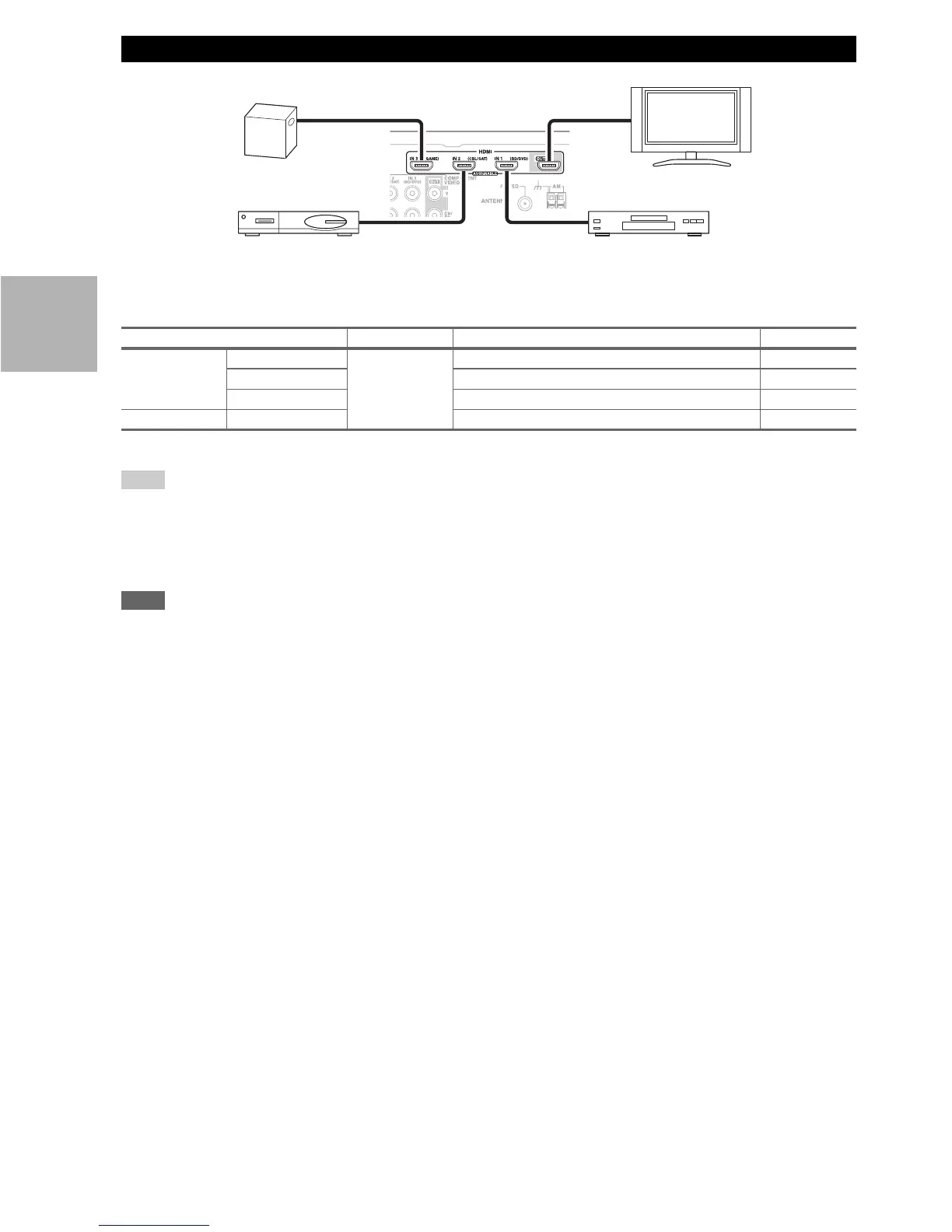

Connecting Components with HDMI
Jack Signal Components Assignable
Input HDMI IN1 Audio/Video Blu-ray Disc/DVD player ✔
HDMI IN2 Satellite, cable, set-top box, etc. ✔
HDMI IN3 Game console ✔
Output HDMI OUT TV, projector, etc.
Game console
TV, projector, etc.
Satellite, cable, set-top box, etc. Blu-ray Disc/DVD player

Onkyo TX SR308 Specifications

General

Impedance	6 Ω
Frequency range	20 - 50000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Product color	Black
Package depth	537 mm
Package width	416 mm
Package height	268 mm
Dimensions (WxDxH)	435 x 151 x 328 mm
Power requirements	AC 220-230 V, 50/60 Hz
Package weight	10500 g
Power consumption (typical)	310 W

Weight and Dimensions

Weight	8000 g
