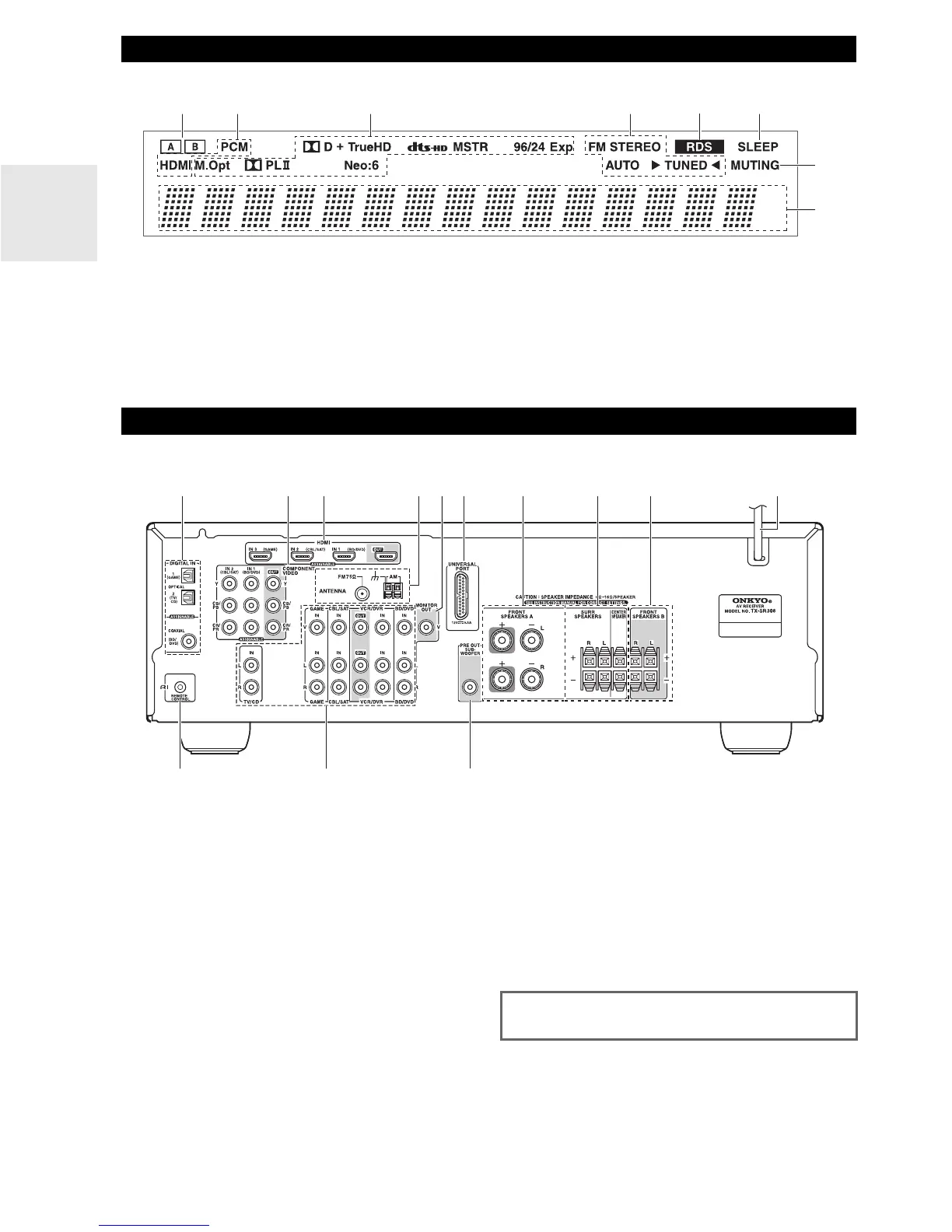

For detailed information, see the pages in parentheses.
a A and B speaker indicators (➔ 10, 20)
b Audio input indicators
c Listening mode and format indicators (➔ 19, 25)
d Tuning indicators (➔ 21)
e RDS indicator (excluding North American models)
(➔ 22)
f SLEEP indicator (➔ 20)
g MUTING indicator (➔ 20)
h Message area
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e MONITOR OUT V jack
f UNIVERSAL PORT jack
g FRONT SPEAKERS A terminals
h SPEAKERS terminals
(SURR, CENTER)
i FRONT SPEAKERS B terminals
j Power cord
k u REMOTE CONTROL jack
l Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, TV/CD IN)
m SUBWOOFER PRE OUT jack
Display
bcaef
h
g
d
Rear Panel
abc
d
j
ef
g
h i
k
lm
See “Connecting the AV Receiver” for connection infor-
mation (➔ 11 to 17).

Onkyo TX SR308 Specifications

General

Impedance	6 Ω
Frequency range	20 - 50000 Hz
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Product color	Black
Package depth	537 mm
Package width	416 mm
Package height	268 mm
Dimensions (WxDxH)	435 x 151 x 328 mm
Power requirements	AC 220-230 V, 50/60 Hz
Package weight	10500 g
Power consumption (typical)	310 W

Weight and Dimensions

Weight	8000 g
