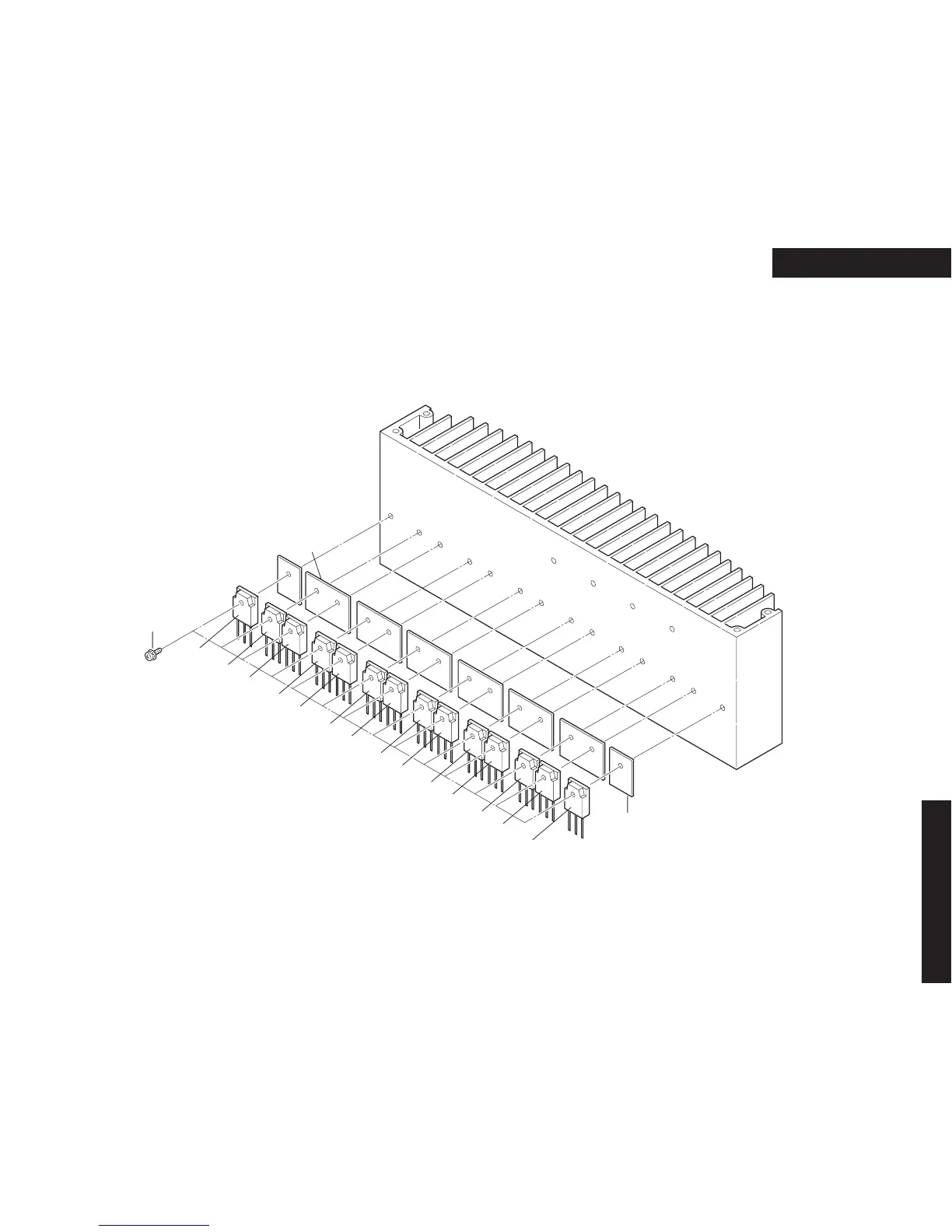

EXPLODED VIEWS-2

TX-SR604/604E/8460

<Fig-1>

Q6056

Q6066

Q6055

Q6065

Q6054

Q6064

Q6053

Q6063

Q6052

Q6062

Q6051

Q6061

Q6050

Q6060

Q6050A

x 2 pcs.

Q6050B

x 6 pcs.

A049

x 14 pcs.

Safety-Related Component1
Service Manual1
Specifications2
Amplifier Section2
Video Section2
Tuner Section2
Service Procedure3
Replacing the Fuses3
To Initialize the Unit3
To Check the Version of Microprocessor3
Operation Check4
Speaker Protect4
DC Voltage Detection4
Current Detection5
Control of Power Supply6
Output Sensor and Thermal Sensor6
Operation Check6
Dsp Debug Mode7
To Set in DSP Debug Mode7
Trouble Cause Analysis by Debug Mode8
Exploded View9
Exploded Views10
Block Diagram - Audio Section11
Flash Rom12
Main Micom12
Block Diagram - Video Section13
Hdmi Board14
Schematic Diagram15
Audio Section15
Electrolytic Capacitors16
Power Amp Section17
Video Encoder21
Speaker out Section22
Dsp Section24
XM Section26
Display Section28
Display Pc Board28
Power Supply Section30
Power Supply Pc Board30
Power Trans31
Hdmi Section32
Digital Audio Wave Form Section34
Schematic Diagram34
Printed Circuit Board Views35
Display Pc Board35
Switch Pc Board39
Component Side39
Soldering Side39
Power Supply Pc Board40
Front Opt Pc Board41
Headphone Jack Pc Board41
Outlet Terminal Pc Board41
Pri. Switch Pc Board42
Dsp Pc Board43
XM Pc Board47
Video Pc Board48
Amplifier Pc Board52
Sec. Terminal-2 Pc Board56
Thermal Sensor Pc Board56
Driver Amplifier Pc Board57
Speaker Terminal Pc Board57
Hdmi Pc Board59
IC Block Diagrams and Terminal Descriptions61
Pin Configuration61
Terminal Description62
Pin Configuration63
IC Block Diagram and Terminal Descriptions65
IC Block Diagrams and Terminal Descriptions66
Block Diagram and Pin Configuration71
Q2001 : F2602E (XM Digital Transceiver)79
Q7003: M66005 (FL Tube Driver)85
System Block Diagram86
Clock Data86
Q8401 : Sii9030Ctu (HDMI Transmitter)89
System Application89
Digital Video Output Pins95
Configuration/Programming Pins96
Differential Signal Data Pins97
Power and Ground Pins97
Signal Name101
Fl Tube View106
Microprocessor Terminal Descriptions107
Adjustment Procedure109
Idling Current Adjustment109
Packing Procedure111
