Onkyo TX-SR604 Service Manual

LRC
K
BIC
K
SDTI
Audio
Data
Interface
MCLK
PDN
Modulator
AOUTL
8X
Interpolator
SCF
LPF
AOUTR
VDD
VSS
VCOM
De-emphasis
Control
P/S
µP
Interface
Clock
Divider
SMUTE/CSN
ACKS/CCLK
DIF0/CDTI
Modulator
8X
Interpolator
DZFR
DZFL
SCF
LPF
ATT
ATT
1
MCLK
LRCK
BICK
SMUTE/CSN
ACKS/CCLK
DIF0/CDTI
Top
View
2
3
4
5
6
7
8
DZFL
DZFR
VSS
VDD
VCOM
AOUTL
AOUTR
P/S
16
15
14
13
12
11
10
9
PDN
SDTI
No. Pin Name I/O Function
1 MCLK I Master Clock Input Pin
An external TTL clock should be input on this pin.
2 BICK I Audio Serial Data Clock Pin
3 SDTI I Audio Serial Data Input Pin
4 LRCK I L/R Clock Pin
5 PDN I Power -Down Mode Pin
When at “L”, the AK4384 is i n the power
-
down mode and is held in reset.
The AK4384 should always be reset upon power
-
up.
SMUTE I Soft Mute Pin in parallel mode
“H”: Enable, “L”: Disable
6
CSN I Chip Select Pin in serial mode
ACKS I Auto Setting Mode Pin in parallel mode
“L”: Manual Setting Mode, “H”: Auto Setting Mode
7
CCLK I Control Data Clock Pin in serial mode
DIF0 I Audio Data Interface Format Pin in parallel mode 8
CDTI I Control Data Input Pin in serial mode
9 P/S I
Parallel/Serial Select Pin (Internal pull
-
up pin)
“L”: Serial control mode, “H”: Parallel control mode
10 AOUTR O Rch Analog Output Pin
11 AOUTL O Lch Analog Output Pin
12 VCOM O Common Voltage Pin, VDD/2
Normally connected to VSS with a 0.1mF c
eramic capacitor in parallel with
a 10 m F electrolytic cap.
13 VSS - Ground Pin
14 VDD - Power Supply Pin
15 DZFR O Rch Data Zero Input Detect Pin
16 DZFL O Lch Data Zero Input Detect Pin

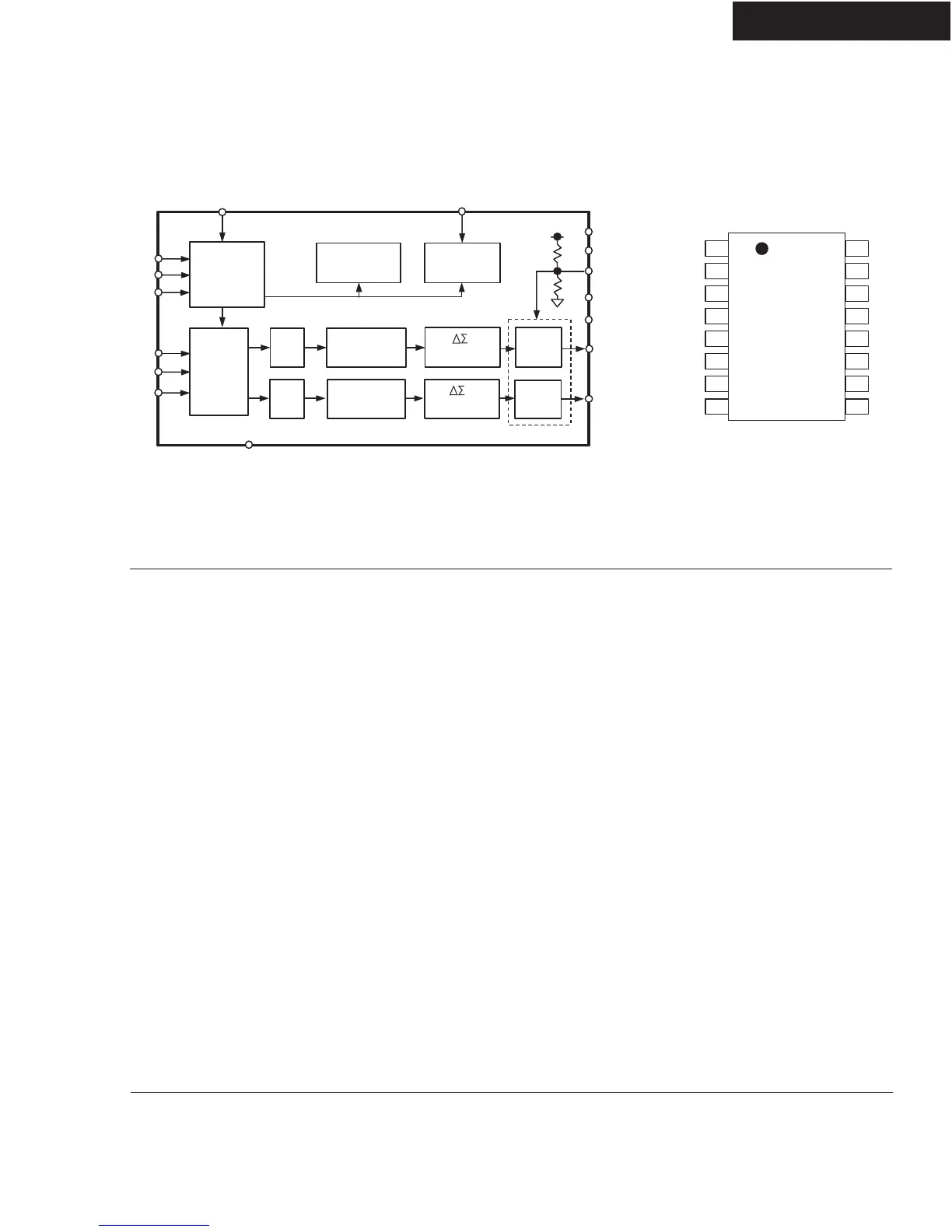

BLOCK DIAGRAM
TERMINAL DESCRIPTION
PIN CONFIGURATION
TX-SR604/604E/8460
Q2002: AK4384 (192kHz 24-Bit 2ch DAC )
IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS -6
