Connecting the AV Receiver—Continued

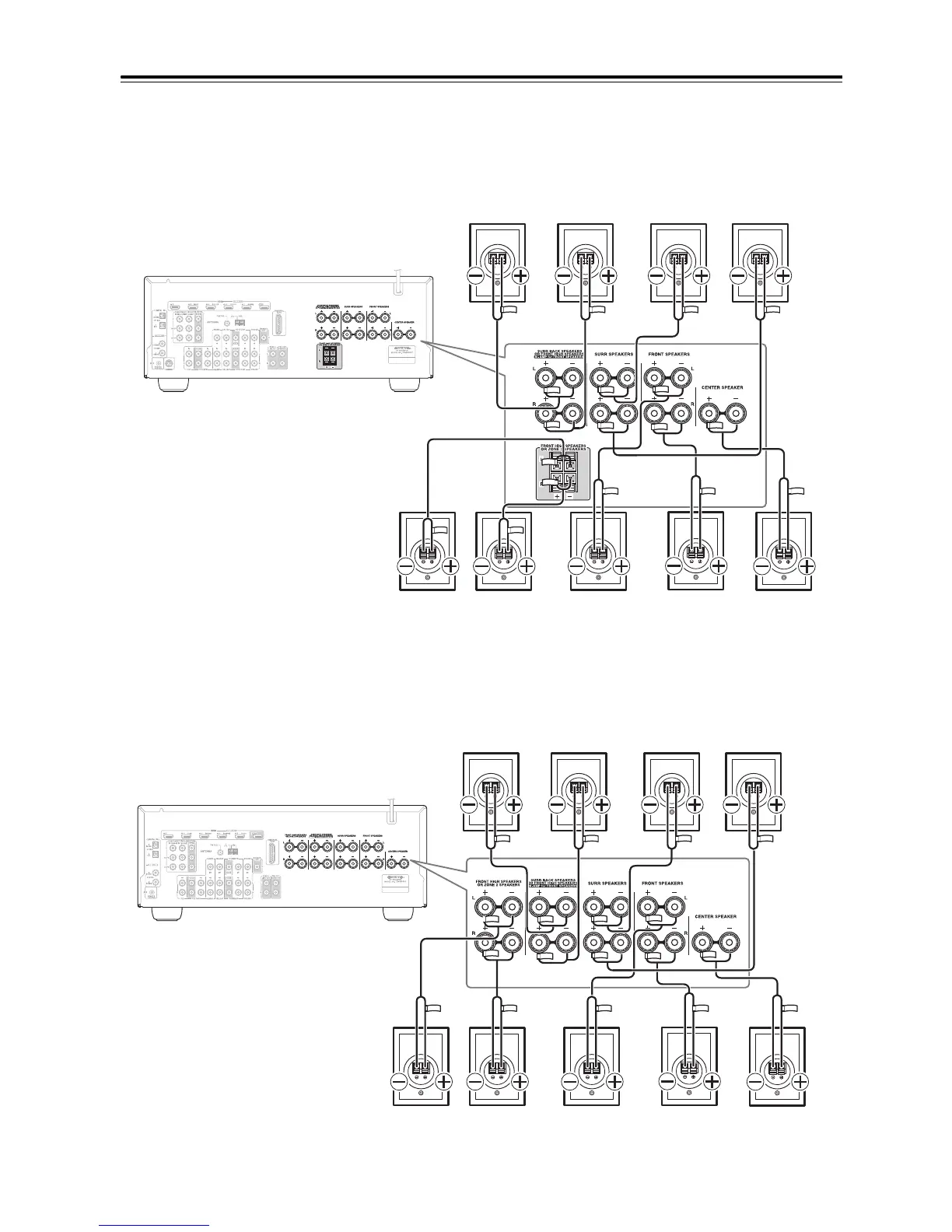

The following illustration shows which speaker should be connected to each pair of terminals. If you’re using only one
surround back speaker, connect it to the left (L) SURR BACK SPEAKERS terminals.
■ North American/Taiwan models
■ Other models
Surround
back left
speaker
Surround
back right
speaker
Surround
left
speaker
Surround
right
speaker
Front high
left
speaker
Front high
right
speaker
Front left
speaker
Front right
speaker
Center
speaker
Front high
left
speaker
Front high
right
speaker
Front left
speaker
Front right
speaker
Center
speaker
Surround
back left
speaker
Surround
back right
speaker
Surround
left
speaker
Surround
right
speaker

Onkyo TX-SR607 Specifications

General

Channels	7.2
HDMI Inputs	4
HDMI Outputs	1
Response Bandwidth	5 Hz - 100 kHz
Signal-To-Noise Ratio	106 dB
THD	0.08%
HD Radio Ready	No
Surround System Class	7.2 channel
HDMI Switching	Yes
Audio D/A Converter	192kHz/24-bit
Video Conversion/Scaling	Yes
HDMI Pass-Through	Yes
Bluetooth	No
Wi-Fi	No
Ethernet	No
USB Port	No
Power Output	90W per channel (8 ohms, 20Hz-20kHz, 0.08% THD, 2 channels driven)
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio, DTS Neo:6
Audyssey Technologies	Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey 2EQ
Amplifier Output Details	90 W - 8 Ohm - 20 Hz - 20 kHz - THD 0.08% - 2 channels
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Video Upconversion	Yes
