Connecting the AV Receiver—Continued

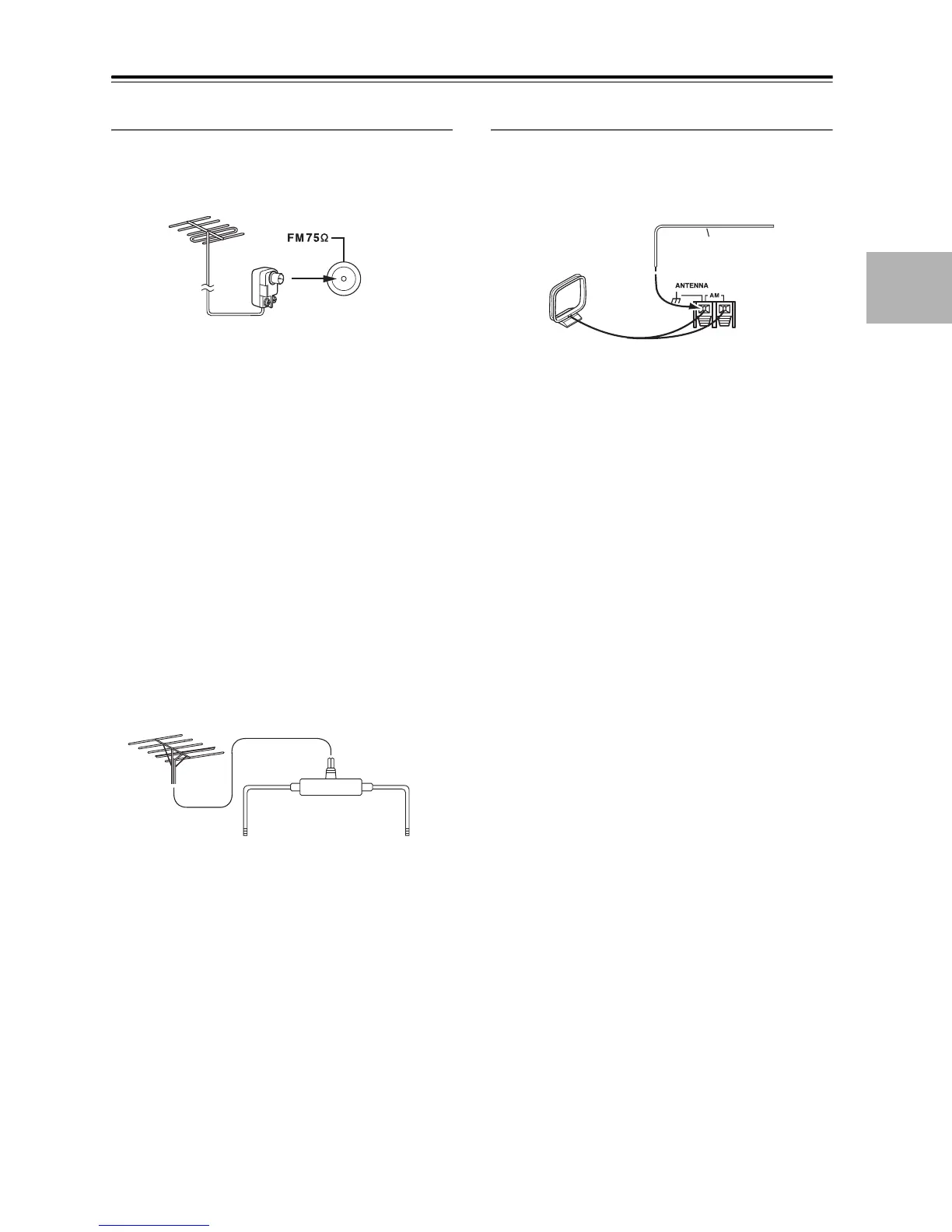

Connecting an Outdoor FM Antenna
If you cannot achieve good reception with the supplied
indoor FM antenna, try a commercially available out-
door FM antenna instead.
Notes:
• Outdoor FM antennas work best outside, but usable
results can sometimes be obtained when installed in an
attic or loft.
• For best results, install the outdoor FM antenna well
away from tall buildings, preferably with a clear line
of sight to your local FM transmitter.
• Outdoor antenna should be located away from possi-
ble noise sources, such as neon signs, busy roads, etc.
• For safety reasons, outdoor antenna should be situated
well away from power lines and other high-voltage
equipment.
• Outdoor antenna must be grounded in accordance
with local regulations to prevent electrical shock haz-
ards.
■ Using a TV/FM Antenna Splitter
It’s best not to use the same antenna for both FM and TV
reception, as this can cause interference problems. If cir-
cumstances demand it, use a TV/FM antenna splitter, as
shown.
Connecting an Outdoor AM Antenna
If good reception cannot be achieved using the supplied
AM loop antenna, an outdoor AM antenna can be used
in addition to the loop antenna, as shown.
Outdoor AM antennas work best when installed outside
horizontally, but good results can sometimes be obtained
indoors by mounting horizontally above a window. Note
that the AM loop antenna should be left connected.
Outdoor antenna must be grounded in accordance with
local regulations to prevent electrical shock hazards.
To AV Receiver To TV (or VCR)
TV/FM antenna splitter
Outdoor antenna
Insulated antenna cable
AM loop antenna

Onkyo TX-SR607 Specifications

General

Channels	7.2
HDMI Inputs	4
HDMI Outputs	1
Response Bandwidth	5 Hz - 100 kHz
Signal-To-Noise Ratio	106 dB
THD	0.08%
HD Radio Ready	No
Surround System Class	7.2 channel
HDMI Switching	Yes
Audio D/A Converter	192kHz/24-bit
Video Conversion/Scaling	Yes
HDMI Pass-Through	Yes
Bluetooth	No
Wi-Fi	No
Ethernet	No
USB Port	No
Power Output	90W per channel (8 ohms, 20Hz-20kHz, 0.08% THD, 2 channels driven)
Dolby Technologies	Dolby Digital, Dolby Digital EX, Dolby TrueHD, Dolby Pro Logic IIx
DTS Technologies	DTS-HD Master Audio, DTS Neo:6
Audyssey Technologies	Audyssey Dynamic EQ, Audyssey Dynamic Volume, Audyssey 2EQ
Amplifier Output Details	90 W - 8 Ohm - 20 Hz - 20 kHz - THD 0.08% - 2 channels
Input Impedance	47 kOhm
Input Sensitivity	200 mV
Video Upconversion	Yes
