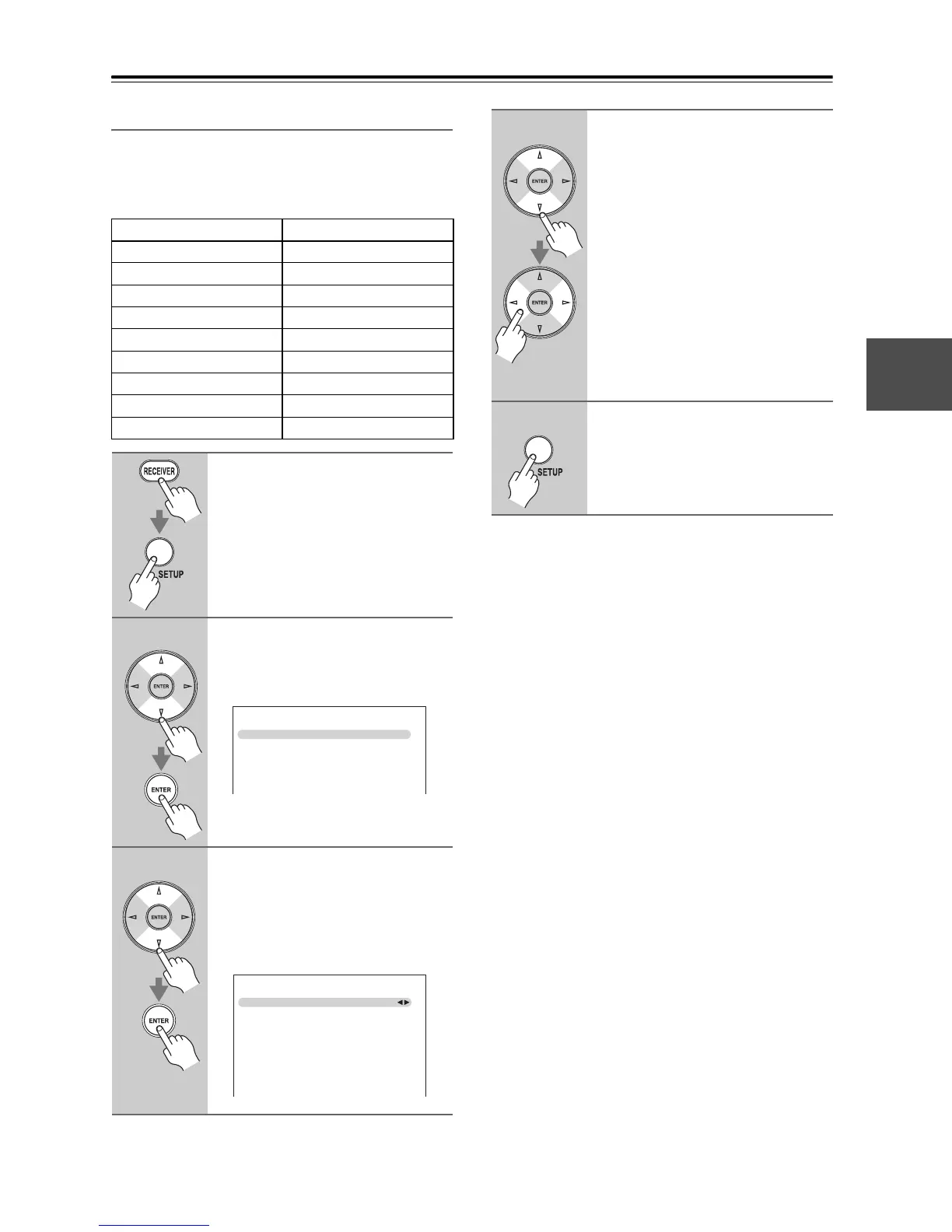

First Time Setup—Continued
Component Video Setup
If you connect to a COMPONENT VIDEO IN, you must
assign it to an input selector. For example, if you connect
your DVD player to COMPONENT VIDEO IN 2, you
should assign it to the DVD/BD input selector.
Notes:
• If you connect an input component (such as UP-A1
series Dock that seated iPod) to the UNIVERSAL
PORT jack, you cannot assign any input to PORT
selector.
• This procedure can also be performed on the AV
receiver by using its [SETUP] button, arrow buttons,
and [ENTER] button.
Input selector Default assignment
DVD/BD IN1
VCR/DVR -----
CBL/SAT IN2
GAME -----
AUX -----
TV/TAPE -----
TUNER ----- (Fixed)
CD -----
PORT -----
1
Press the [RECEIVER] button fol-
lowed by the [SETUP] button.
The main menu appears onscreen.
If the main menu doesn’t appear, make
sure the appropriate external input is
selected on your TV.
2
Use the Up and Down [q]/[w] but-
tons to select “1. Input Assign”,
and then press [ENTER].
The “Input Assign” menu appears.
3
Use the Up and Down [q]/[w] but-
tons to select “2. Component
Video Input”, and then press
[ENTER].
The “Component Video Input” menu
appears.
1. Input Assign
1. HDMI Input
2. Component Video Input
3. Digital Audio Input
1–2. Component Video Input
IN1
- - - - -
IN2
- - - - -
- - - - -
- - - - -
- - - - -
- - - - -
- - - - -
DVD/BD
VCR/DVR
CBL/SAT
GAME
AUX
TV/TAPE
TUNER
CD
PORT
4
Use the Up and Down [q]/[w] but-
tons to select an input selector,
and then use the Left and Right
[e]/[r] buttons to select:
IN1: Select if the video component
is connected to COMPO-
NENT VIDEO IN 1.
IN2: Select if the video component
is connected to COMPO-
NENT VIDEO IN 2.
-----: Select if you are using the
HDMI OUT, rather than the
COMPONENT VIDEO
OUT, for the output from
composite video and compo-
nent video sources.
5
Press the [SETUP] button.
The setup menu closes.
