Onkyo TX SR608 User Manual

10
En
North American and Taiwan models
European, Australian and Asian models
a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d PC IN jack
e FM ANTENNA jack and AM ANTENNA terminal
f MONITOR OUT V jack
g UNIVERSAL PORT jack
h SPEAKERS terminals
(CENTER, FRONT, SURR, SURR BACK OR
FRONT HIGH OR FRONT WIDE)
i Power cord
j u REMOTE CONTROL jack
k SIRIUS antenna jack (North American models)
l Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN, PC IN, TV/CD IN)
m ZONE 2 LINE OUT jacks
n SUBWOOFER PRE OUT jacks
o FRONT HIGH OR FRONT WIDE OR ZONE 2
SPEAKERS terminals

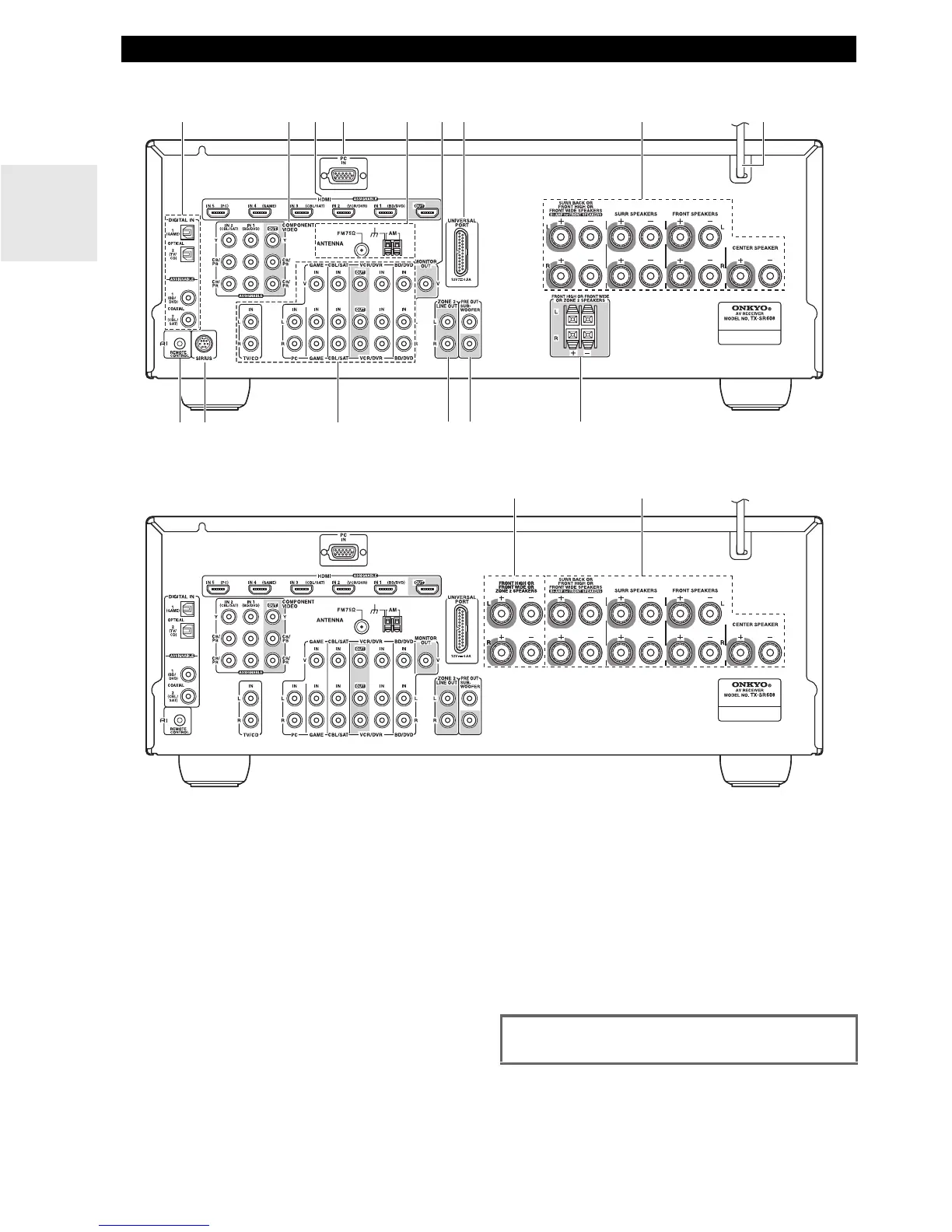

Rear Panel
acb
e
i
fg
d
h
jk
lmn
o
ho
See “Connecting the AV Receiver” for connection infor-
mation (➔ 13 to 21).

Onkyo TX SR608 Specifications

General

Impedance	4 Ω
Frequency range	5 - 100000 Hz
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Package depth	570 mm
Package width	423 mm
Package height	297 mm
Dimensions (WxDxH)	435 x 176 x 329 mm
Power requirements	AC 230 V, 50 Hz
Product color	Silver
Package weight	14000 g
Power consumption (typical)	620 W

Weight and Dimensions

Weight	11500 g
