Onkyo TX SR608 User Manual

18
En

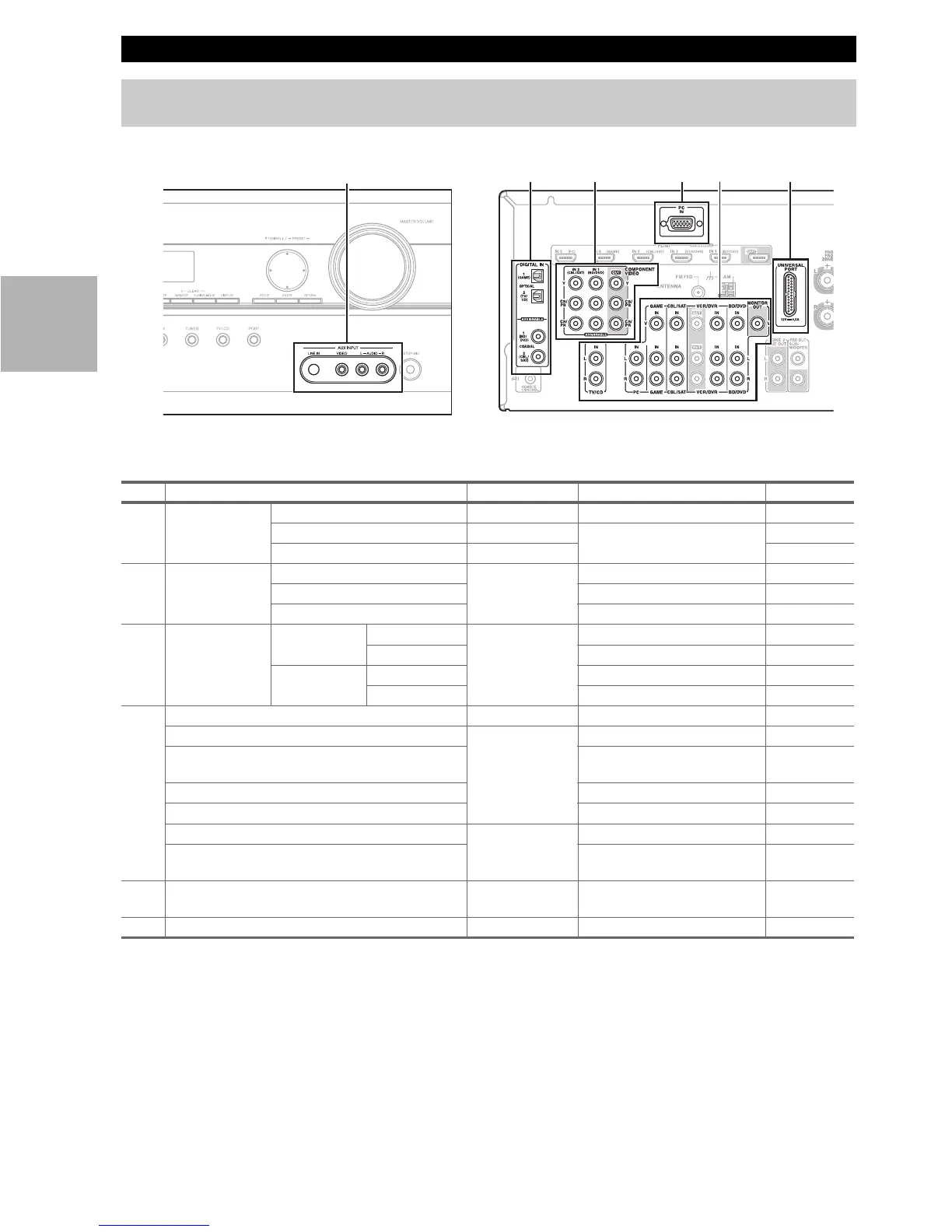

Connect your components to the appropriate jacks. The default input assignments are shown below.
✔: Assignment can be changed (➔ 40).
Connecting External Components
The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to
the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.
No. Jack Signal Components Assignable
A
AUX INPUT LINE IN Analog audio Portable audio player
VIDEO Composite video Camcorder, etc
AUDIO L/R Analog audio
B
COMPONENT
VIDEO
IN 1 (BD/DVD) Component video Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔
OUT TV, projector, etc.
C
DIGITAL IN OPTICAL IN 1 (GAME) Digital audio Game console ✔
IN 2 (TV/CD) TV, CD player ✔
COAXIAL IN 1 (BD/DVD) Blu-ray Disc/DVD player ✔
IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. ✔
D
MONITOR OUT Composite video TV, projector, etc.
BD/DVD IN Analog audio and
composite video
Blu-ray Disc/DVD player
VCR/DVR IN VCR or DVD recorder/Digital
Video Recorder
CBL/SAT IN Satellite, cable, set-top box, etc.
GAME IN Game console
PC IN Analog audio Personal computer
TV/CD IN
TV, CD player, Turntable
*1
,
Cassette tape deck, MD, CD-R
E
UNIVERSAL PORT Analog audio/
Video
Universal port optional dock
(UP-A1 etc.)
F
PC IN
Analog RGB Personal computer
*2
A
E
B
D
C
F
Front Rear

Onkyo TX SR608 Specifications

General

Impedance	4 Ω
Frequency range	5 - 100000 Hz
Audio output channels	7.2 channels
Signal-to-Noise Ratio (SNR)	106 dB
Total Harmonic Distortion (THD)	0.08 %
AM band range	522 - 1611 kHz
FM band range	87.5 - 108 MHz
Radio Data System (RDS)	Yes
Package depth	570 mm
Package width	423 mm
Package height	297 mm
Dimensions (WxDxH)	435 x 176 x 329 mm
Power requirements	AC 230 V, 50 Hz
Product color	Silver
Package weight	14000 g
Power consumption (typical)	620 W

Weight and Dimensions

Weight	11500 g
