Oreck Magnesium LW100 Series User Manual

iv | Increase Quality through Interaction with the Field
Common Repairs Table
Repair Task Where to Find It
Replace Belt Base Unit secon, steps 1 and 7-9
Replace Brushroll Assembly Base Unit secon, steps 1 and 7-10
Replace Brush Chamber-to-Inlet Seal Base Unit secon, steps 1-2 and 5
Replace Dirt Tube O-Ring Handle/Upper Assembly secon, steps 4-6
Replace Power-to-Switch-to-PCB Harness Handle/Upper Assembly secon, step 3
Replace Fan Housing Assembly Base Unit secon, steps 1-2, 5, 7-9, 11-18
Replace PCB Main Base Unit secon, steps 1-3
Replace Motor Base Unit secon, steps 1-2, 5, 7-9, 11-18

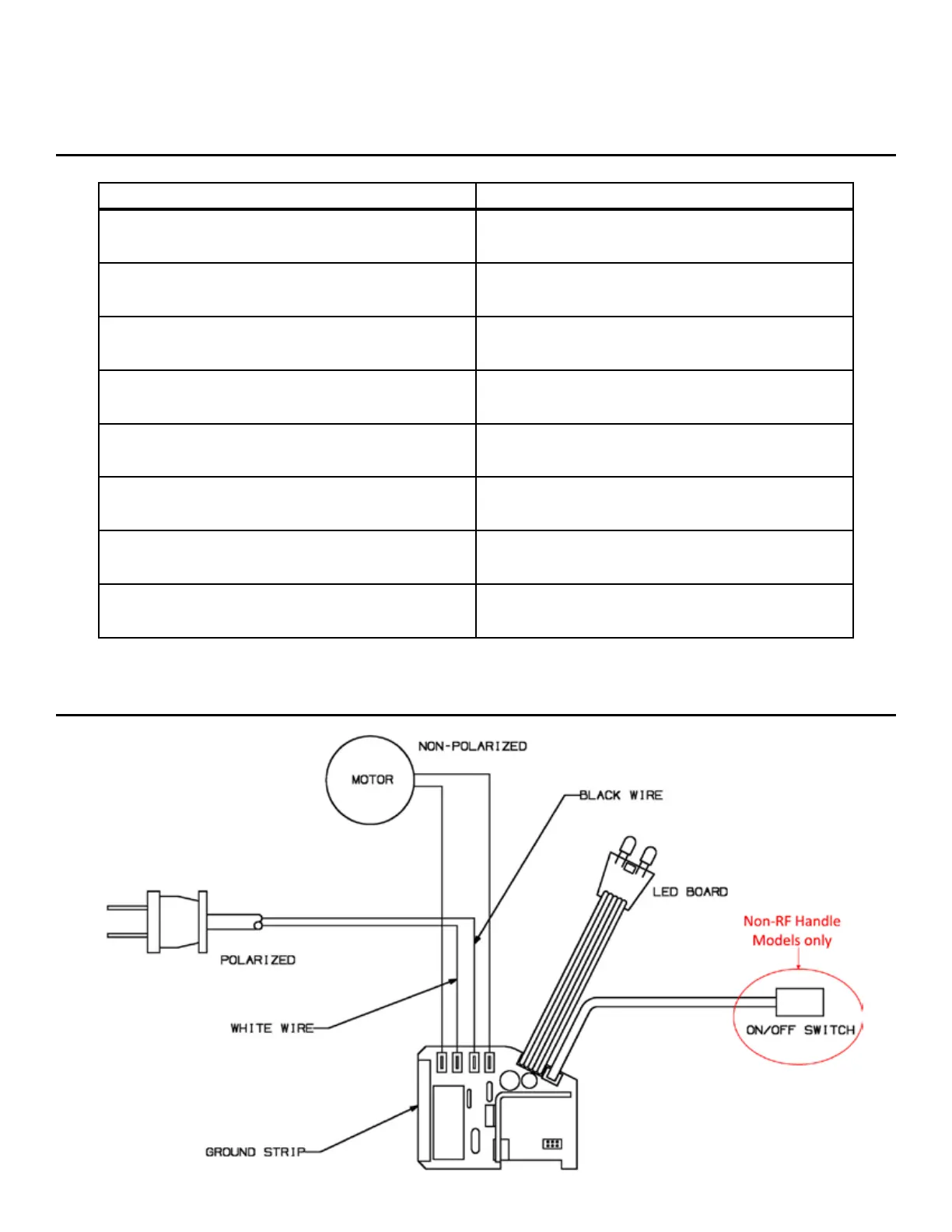

Wiring Diagram

Oreck Magnesium LW100 Series Specifications

General

Brand	Oreck
Model	Magnesium LW100 Series
Category	Vacuum Cleaner
Language	English
