Description and main characteristics General instructions
cgm.3 system: medium voltage SF
6
gas-insulated
cubicles up to 38 kV according to IEEE and CSA standards
1.2. Mechanical characteristics
The dimensions and weights of the cgm.3 cubicle system
are represented in the following table.

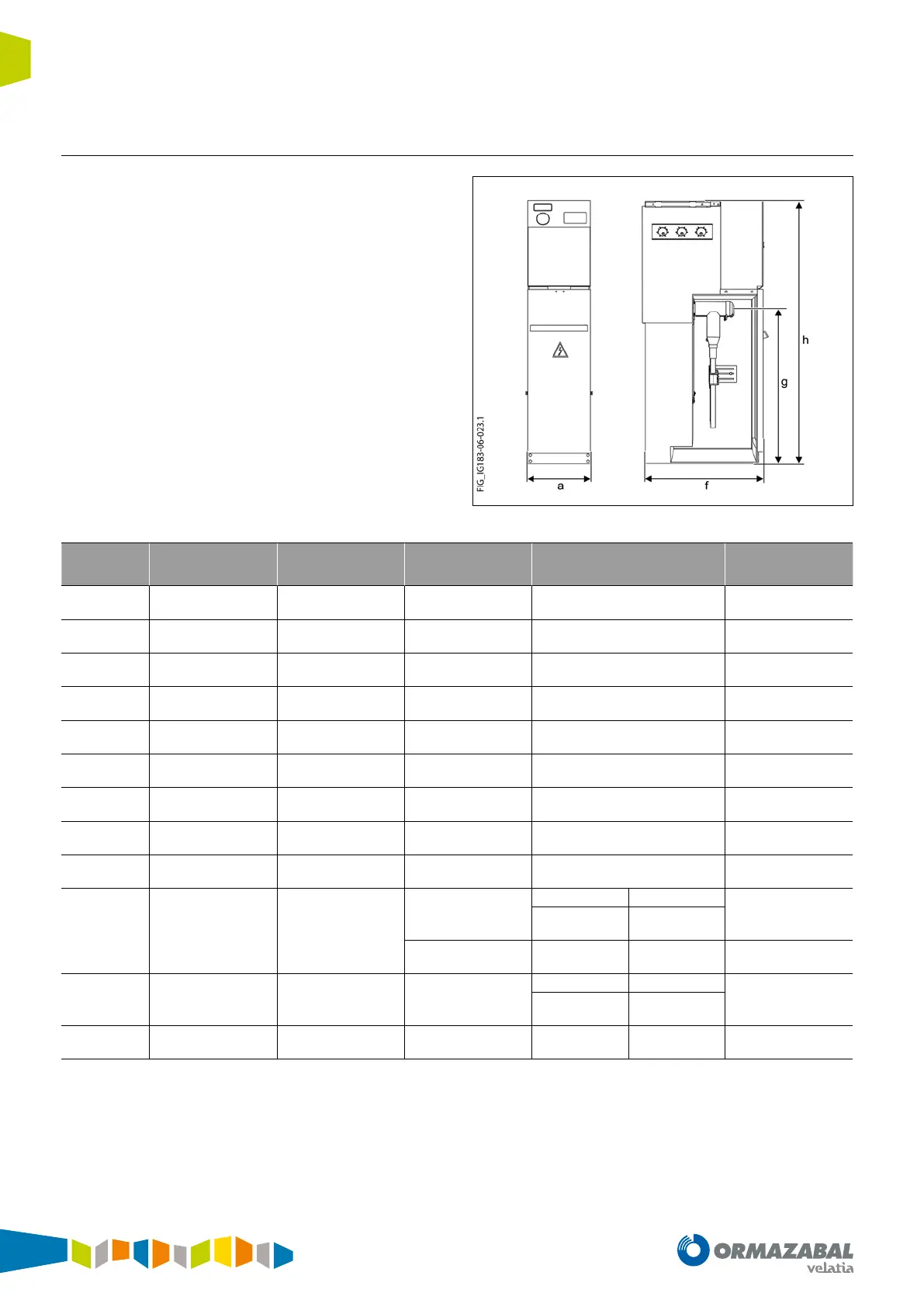

Figure 1.20. cgm.3 system dimensions
Module
Width (a)
(inches) [mm]
Depth (f)
(inches) [mm]
Height (h)
(inches) [mm]
Bushings height (g)
(inches) [mm]
Weight (pounds)
[kg]
-l
(16)
[418]
(33[1])
[850[1]]
(69)
[1745]
(41)
[1042]
(357)
[162]
-s
(16)
[418]
(33)
[850]
(69)
[1745]
-
(315)
[143]
-s-pt
(24)
[600]
(33)
[850]
(69)
[1745]
-
(408)
[185]
-p
(19)
[480]
(40)
[1010]
(69)
[1745]
(21)
[525]
(507)
[230]
-v
(24)
[600][2]
(33)
[850]
(69)
[1745]
(27)
[695]
(562)
[255]
-rci / -rcd
(14)
[367]
(33)
[831]
(69)
[1745]
-
(93)
[42]
-r2c
(21.6)
[550]
(33.46)
[831]
(68.7)
[1740]
-
(132.4)
[60]
-rb / -rb-pt
(16)
[418]
(33)
[850]
(69)
[1745]
(41)
[1042]
(348)
[158]
-m
(43)
[1100]
(46)
[1160]
(71)
[1800]
-
(661)
[300]
-2lp
(52)
[1316]
(40)
[1010](1)
(55)
[1400]
-l -p
(460)
[1014]
(28)
[697]
(7)
[180]
(69)
[1745]
(41)
[1042]
(21)
[525]
(490)
[1080]
-2lv
(56)
[1436]
(33)
[850]
(69)
[1745]
-l -v
(547)
[1205]
(41)
[1042]
(27)
[695]
-rlv
(56)
[1436]
(33)
[850]
(69)
[1745]
(41)
[1042]
(27)
[695]
(547)
[1205]
[1] Cubicle with double cable: 36.69 inches (930 mm).
[2] As an option, there is also available a 23 inches (595 mm) wide model of the cgm.3-v cubicle. Contact Ormazabal.
Table 1.5. Dimensions and weights
