2.8 Connector installation
A masonry flue connector may provide acceptable performance (Figure 2.8a); however, we recommend the
use of a chimney liner (rigid or flexible) to ensure satisfactory performance (Figure 2.8b). To ensure an
optimal draft, we also strongly recommend adding a minimum of 18” rigid liner between the roof flashing
and the rain cap. Slip connectors for continuous liners should also be installed. Use Listed Chimney Liners
– UL1777, CAN/ULC-S635.

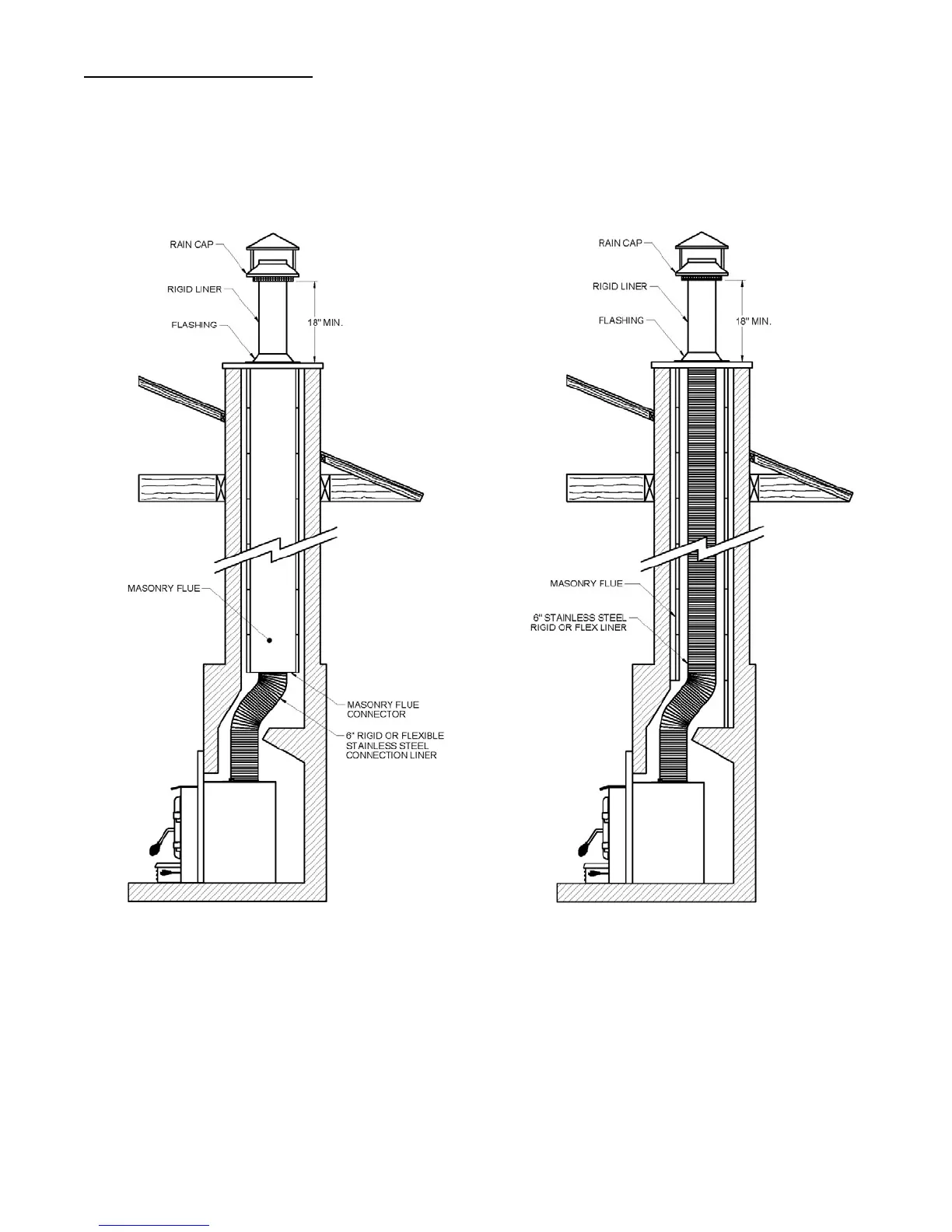

Figure 2.8a* Figure 2.8b*
* Generic illustrations. The model of your insert can differ from the one shown above.
ATTENTION INSTALLER: When positioning the unit in a fireplace opening prior to the flue
installation, install the insert into the opening until the top lip of air jacket is flush with fireplace
facing.
If lag-bolts and anchors are to be used to secure the insert, the whole locations should be marked
with the unit in place. Remove the insert and locate the anchors.
