2.9 Air control plate, faceplate and fan Assembly Instructions
1. Place the faceplate panels with the finished side down on a flat, soft, non-abrasive surface.
2. Assemble the faceplate trim, attaching the mitered corners with the corner brackets.
(see Figure 2.9c)
3. Line up the holes of the side and top panels and secure with the six (6) screws, washers and nuts.
(see Figure 2.9d)
4. Slide the assembled trim over the edges of the faceplate.
5. Secure trim to faceplate using eight "U" shaped brackets. (see Figure 2.9d)

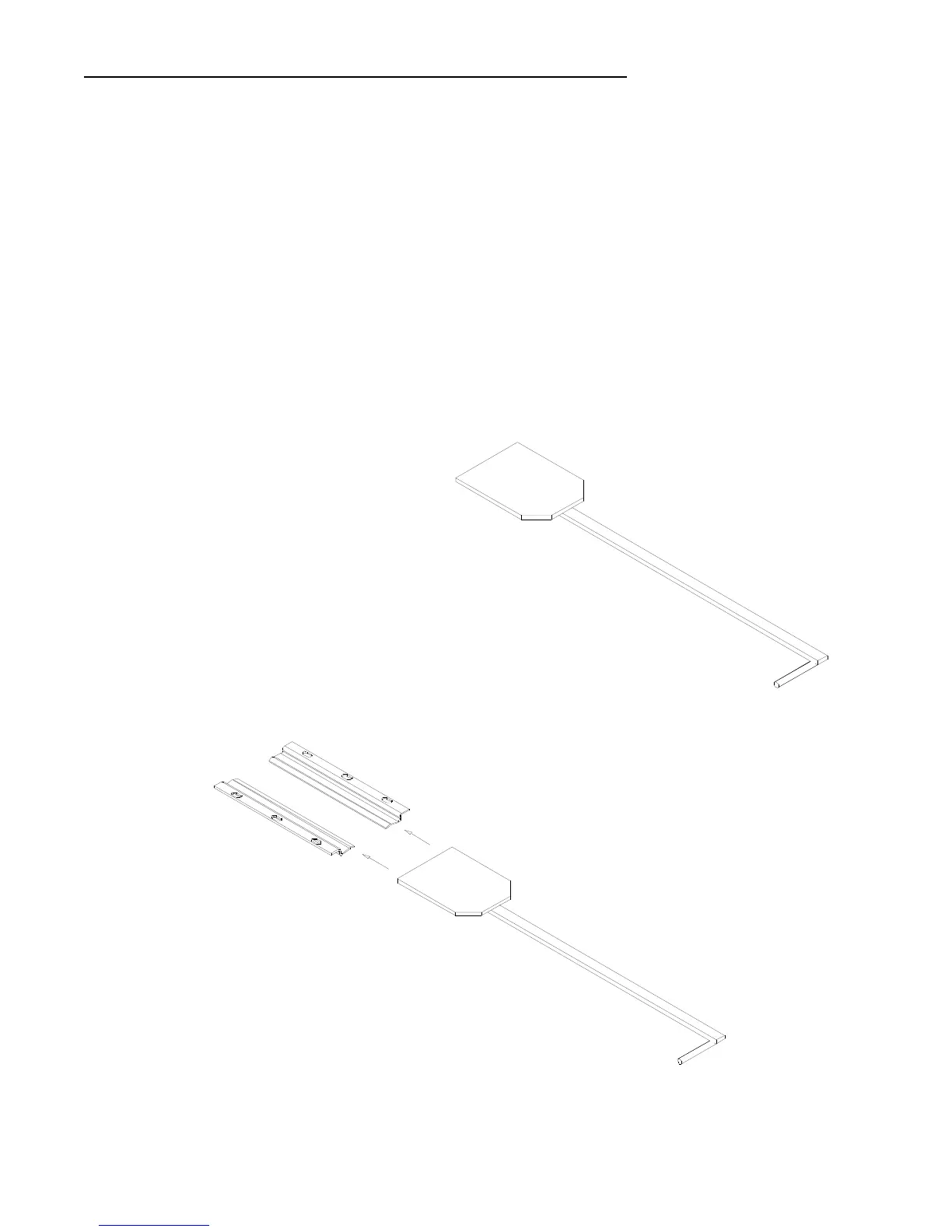

6. Locate air control plate Fig 2.9a (shipped inside firebox). Slide air control into tracks on firebox
bottom as indicated in Fig 2.9b.
.....................................................................................................................................................................................
.....................................................................................................................................................................................
Figure 2.9a
Figure 2.9b
To Next Page
