• ANY MODIFICATION OF THE APPLIANCE THAT HAS NOT BEEN APPROVED IN WRITING
BY THE TESTING AUTHORITY IS CONSIDERED TO BE IN BREACH OF THE APPROVAL
GRANTED FOR COMPLIANCE WITH AS/NZS 4012/4013 (1999).
8. Clearances to Combustible Material
It is of outmost importance that the clearances to heat-sensitive materials are carefully maintained
upon the installation of the wood fire you have selected. Refer to the tables below.
No part of the wood fire or flue pipe may be located closer to combustibles than the
minimum clearance figures given.
8.1 Certification Label
Since the information given on the certification label affixed to the appliance always overrides
the information published, in any other media (owner’s manual, catalogues, flyers, magazines
and web sites) it is important to refer to it in order to have a safe and compliant installation. In
addition, important information about the wood fire can be found (model, serial number, etc.).
The certification label is located on the back of the wood fire.
8.2 Clearances to Walls and Ceiling
WHERE THE FLUE PASSES THROUGH A WALL, CEILING, FLOOR OR ROOFS, VENTILATED
DOUBLE FLUE-WOOD FIRE CASINGS MUST BE USED AROUND THE FLUE, ALONG WITH
CEILING PLATES AS SPECIFIED IN AS/NZS 2918:2001. THE CASING SHALL PASS THROUGH
THE ENTIRE THICKNESS OF THE WALL, CEILING OR WALL.

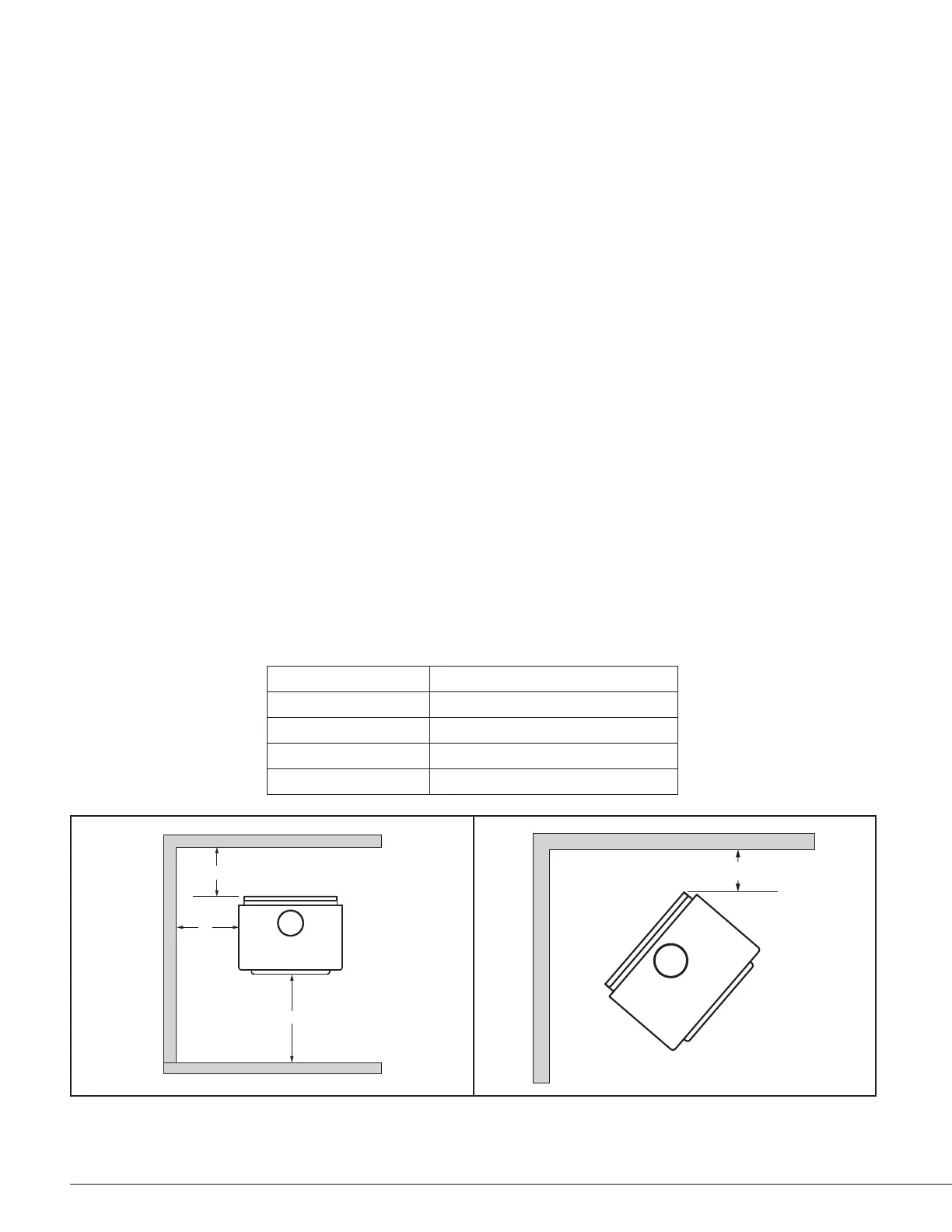

See figure Clearances to heat sensitive materials and floor protection to match each letter to a
clearance.
Clearances
A
175 mm
B
400 mm
C
150 mm
F
1 m
A
B
F
C
• Top of appliance to ceiling height must be at least 1,500 mm in all cases.
• The clearance between the flue and a wall are valid only for vertical walls and for vertical flue.
