26

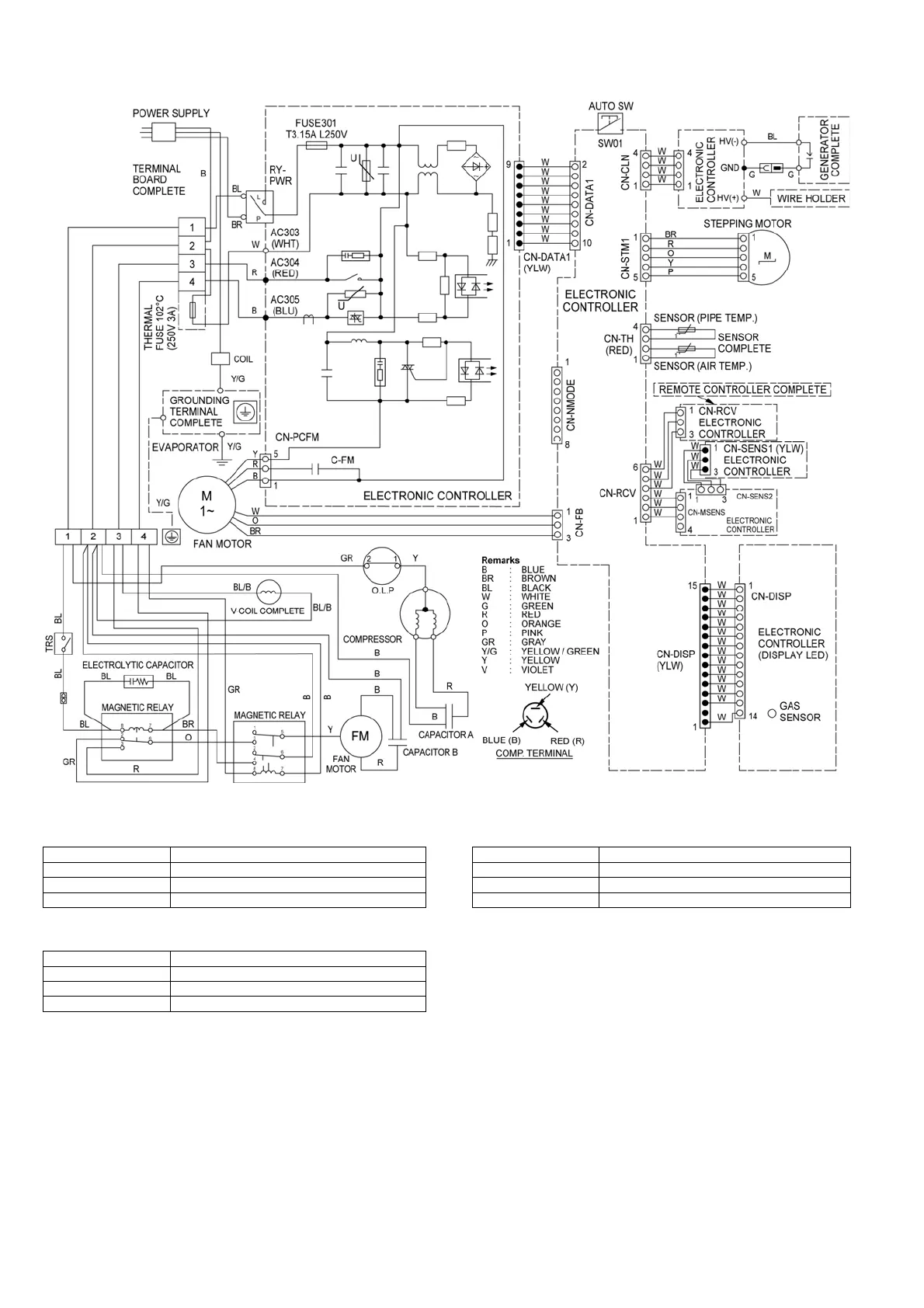

8.2 CS-A12KKD CU-A12KKD
Resistance of Indoor Fan Motor Windings Resistance of Compressor Windings
MODEL CS-A12KKD MODEL CU-A12KKD
CONNECTION CWA921415 CONNECTION 2PS206D2BA02
BLUE-YELLOW 196Ω C-R 3.207Ω
YELLOW-RED 303Ω C-S 3.256Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-A12KKD
CONNECTION CWA951121J
BLUE-YELLOW 200.4Ω
YELLOW-RED 252.5Ω
Note: Resistance at 25°C of ambient temperature.
