46
12. Operation Control
12.1 Heating Operation
• Heating operation can be set using remote control.
• This operation is applied to warm the room temperature reaches the setting temperature set on the remote
control.
• The remote control setting temperature, which takes the reading of intake air temperature sensor, can be
adjusted from 16°C to 30°C.

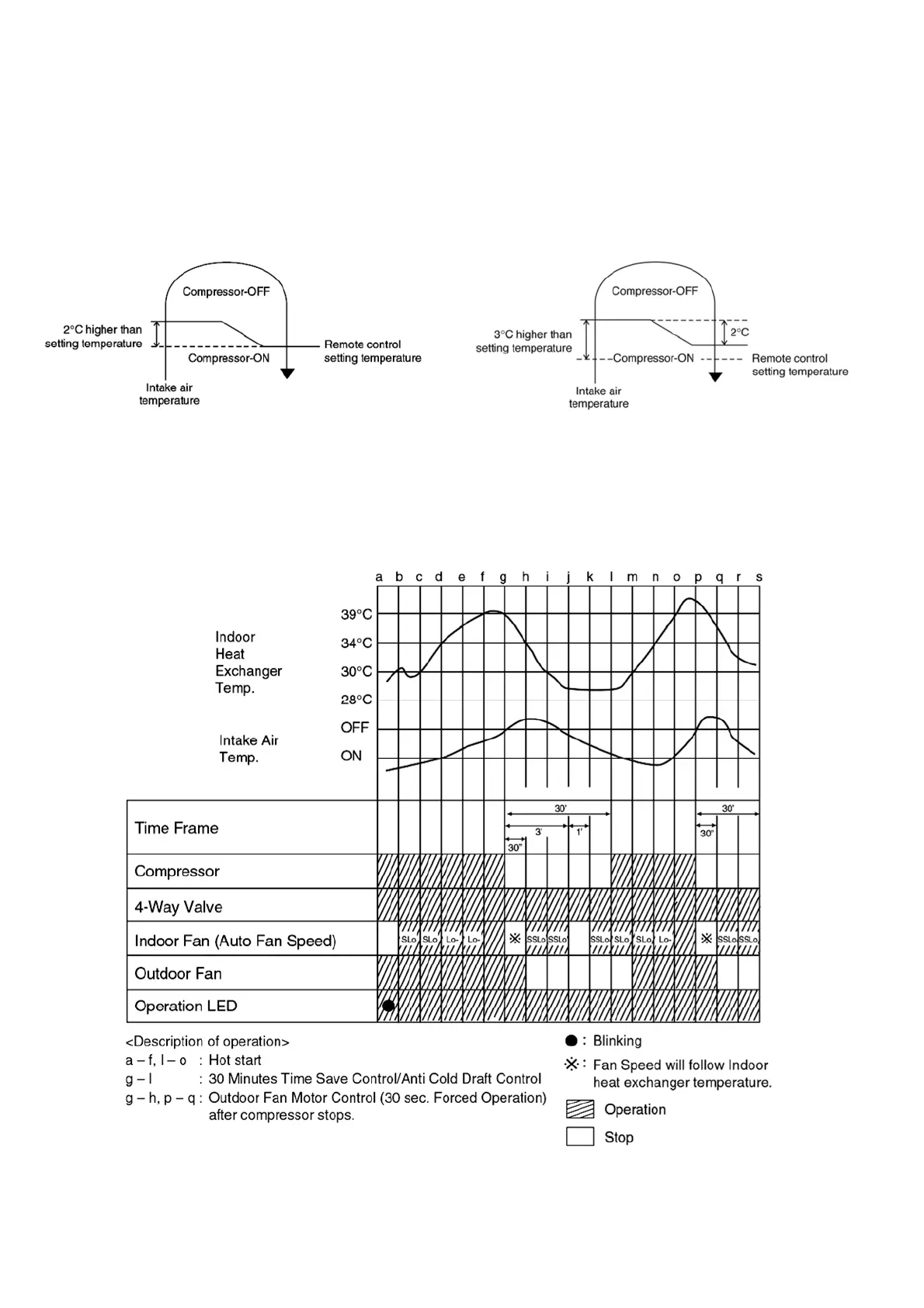

• During heating operation, the compressor will stop running and restart as shown in below figure.
(A9/12KK)
(A18/24/28KK)
12.1.1 Heating Operation Time Diagram (For CS-A9KKD CU-A9KKD and CS-A12KKD CU-
A12KKD)
To Next Page
