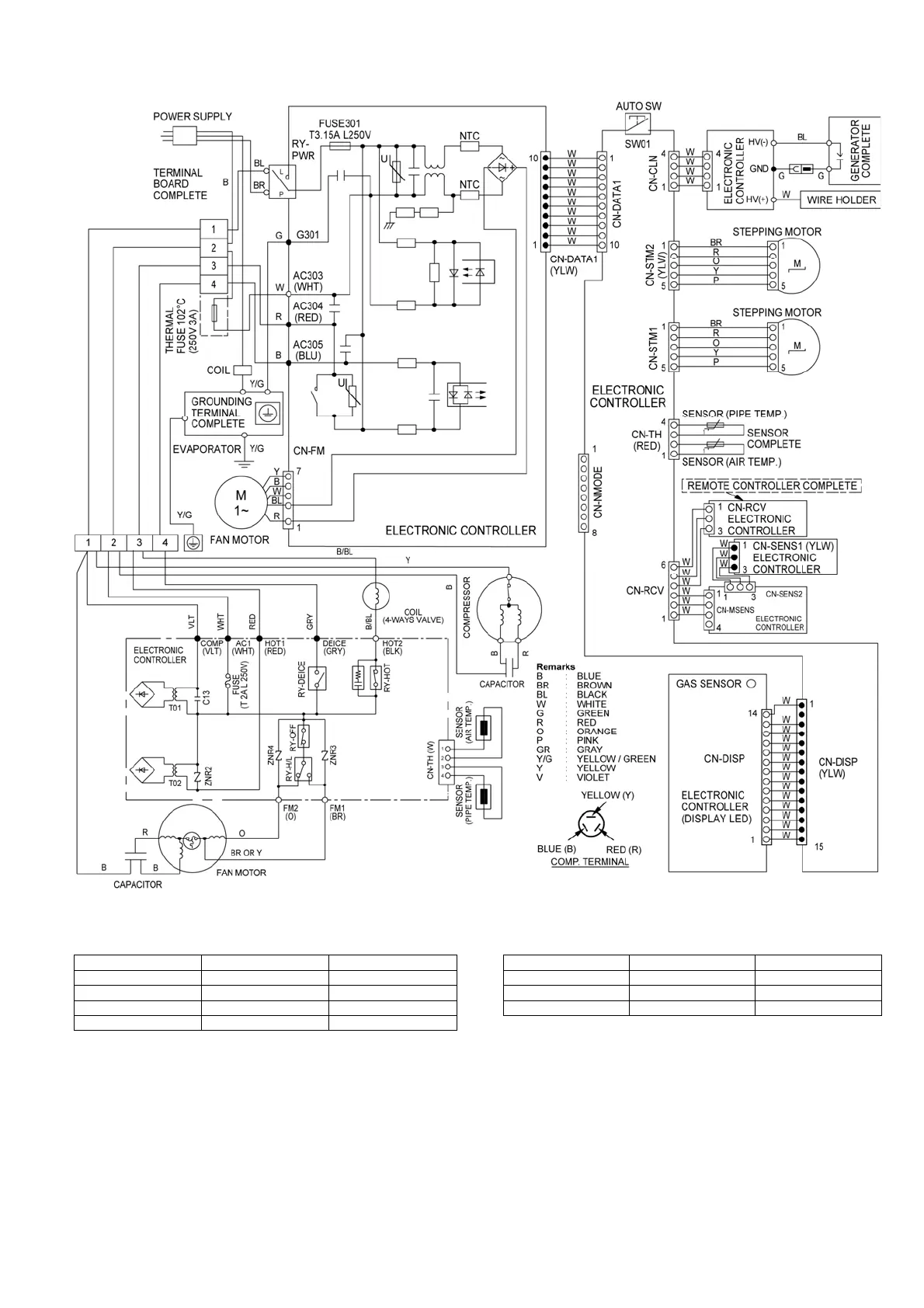

8.3 CS-A18KKD CU-A18KKD CS-A24KKD CU-A24KKD
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-A18KKD CU-A24KKD MODEL CU-A18KKD CU-A24KKD
CONNECTION CWA951385J CWA951385J CONNECTION 2JS318D3AA04 2JS438D3JA02
BLUE-YELLOW 93Ω 93Ω C-R 1.618Ω 0.830Ω
YELLOW-ORANGE 124Ω 124Ω C-S 3.718Ω 2.257Ω
YELLOW-RED 98Ω 98Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature.
