104
WARNING
17. Disassembly and Assembly Instructions
High voltages are generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding
with repair work. Failure to heed this caution may result in electric shocks.
17.1 CS-E7NK CS-E9NK CS-E12NK CS-E15NK
17.1.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

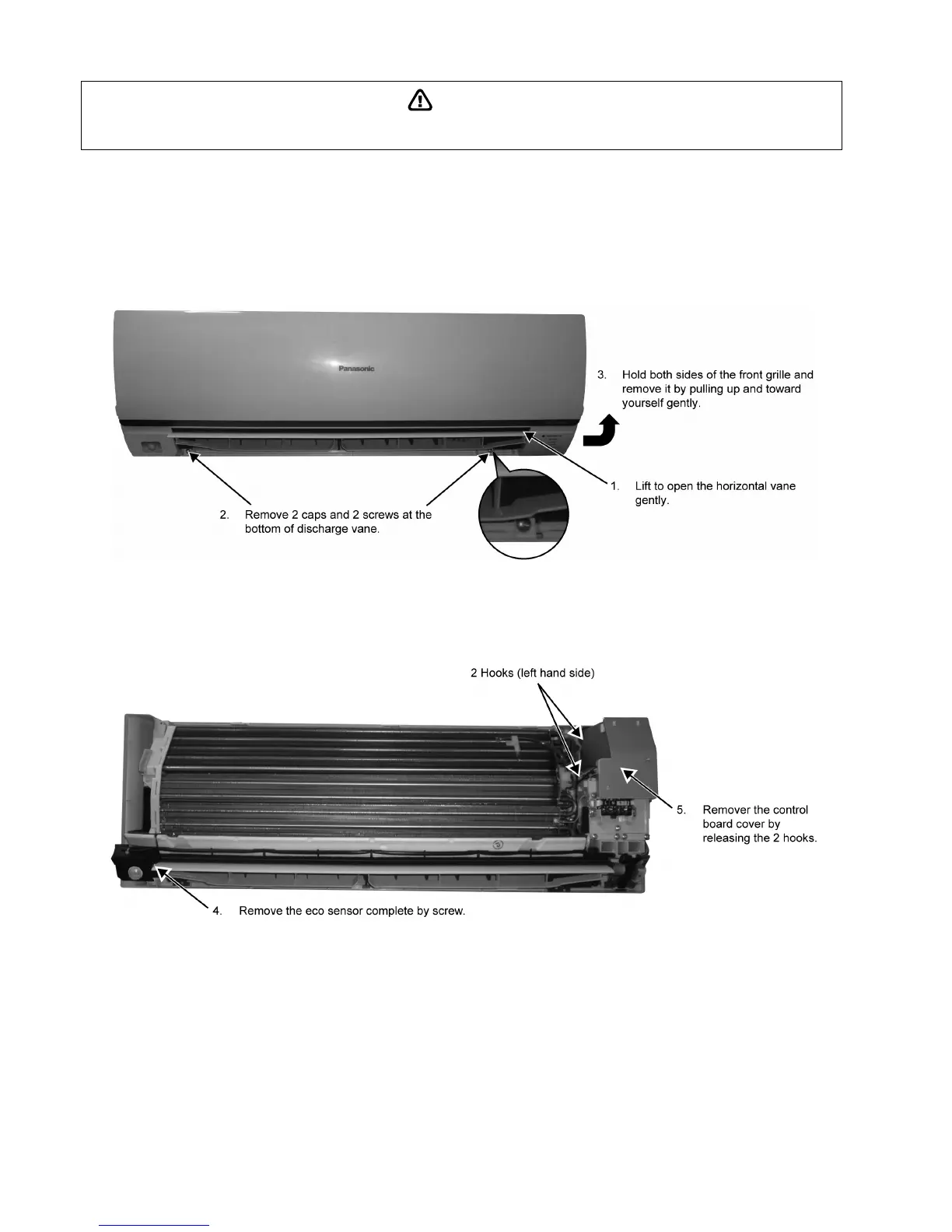

17.1.1.1 To remove front grille
Figure 1
17.1.1.2 To remove electronic controller
Figure 2
To Next Page
