51
[Heating]

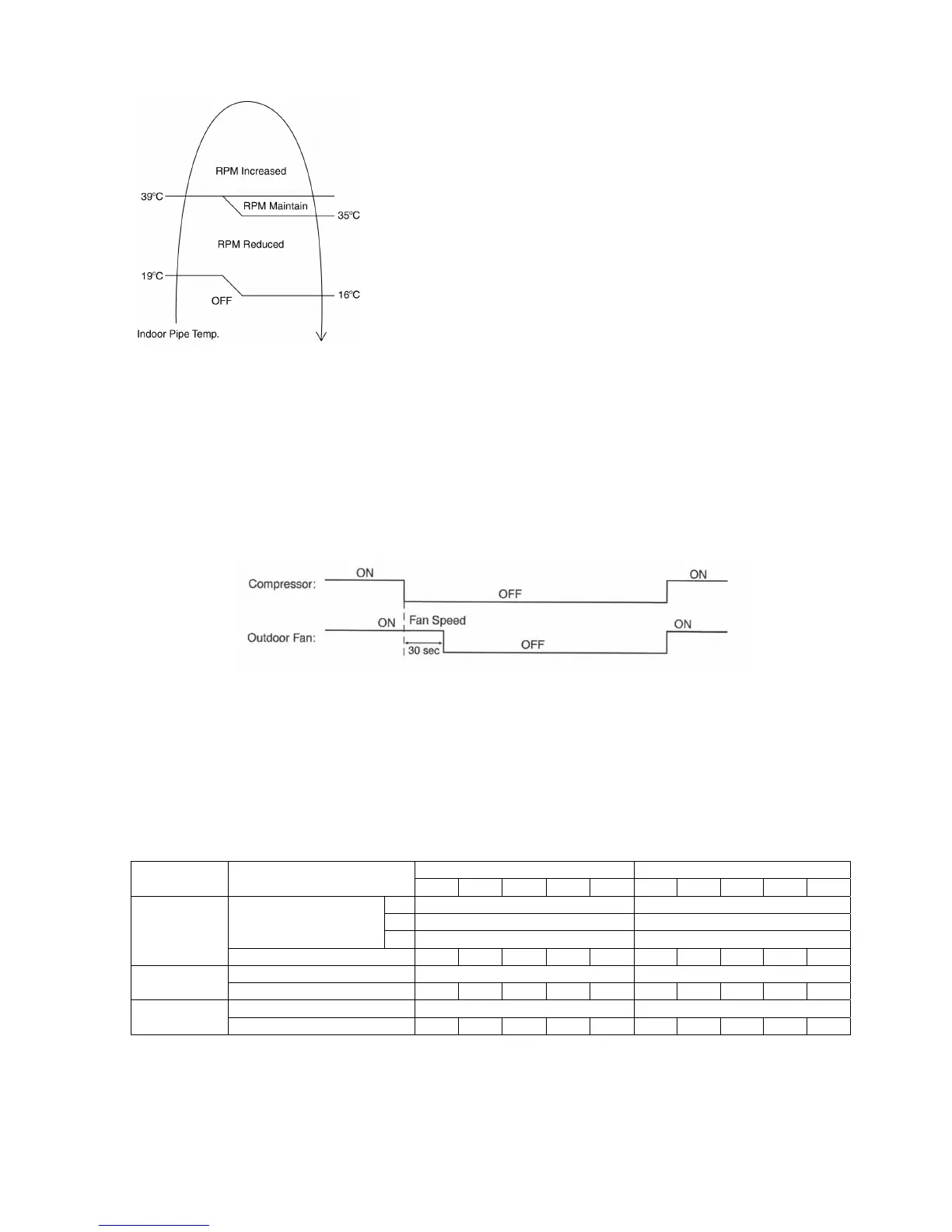

According to indoor pipe temperature, automatic heating fan speed is determined as follows.
B. Feedback control
Immediately after the fan motor started, feedback control is performed once every second.
During fan motor on, if fan motor feedback ≥ 2550 rpm or < 50 rpm continue for 10 seconds, then fan motor error
counter increase, fan motor is then stop and restart. If the fan motor counter becomes 7 times, then H19 - fan
motor error is detected. Operation stops and cannot on back.
12.3 Outdoor Fan Motor Operation
Outdoor fan motor is operated with one fan speed only. It starts when compressor starts operation and it stops
30 seconds after compressor stops operation.
12.4 Airflow Direction
There are two types of airflow, vertical airflow (directed by horizontal vane) and horizontal airflow (directed by
vertical vanes).
Control of airflow direction can be automatic (angles of direction is determined by operation mode, heat
exchanger temperature and intake air temperature) and manual (angles of direction can be adjusted using
remote control).
12.4.1 Vertical Airflow
Vane Angle (°) : E7/9/12/15NK Vane Angle (°) : E18NK
Operation Mode Airflow Direction
1 2 3 4 5 1 2 3 4 5
A 10
5
B 43.8
30
Auto with Heat Exchanger
Temperature
C 21.2
17.5
Heating
Manual 10 21.2 32.5 43.8 55
5 17.5 30 42.5 55
Auto 10 ~ 40
5 ~ 35
Cooling
Manual 10 17.5 25 32.5 40
5 12.5 20 27.5 35
Auto 10 ~ 40
5 ~ 35
Soft Dry
Manual 10 17.5 25 32.5 40
5 12.5 20 27.5 35
1 Automatic vertical airflow direction can be set using remote control; the vane swings up and down within the
angles as stated above. For heating mode operation, the angle of the vane depends on the indoor heat
exchanger temperature as Figure 1 below. It does not swing during fan motor stop. When the air conditioner
is stopped using remote control, the vane will shift to close position.
To Next Page
