Panasonic CS-F18DB4E5 Service Manual

104

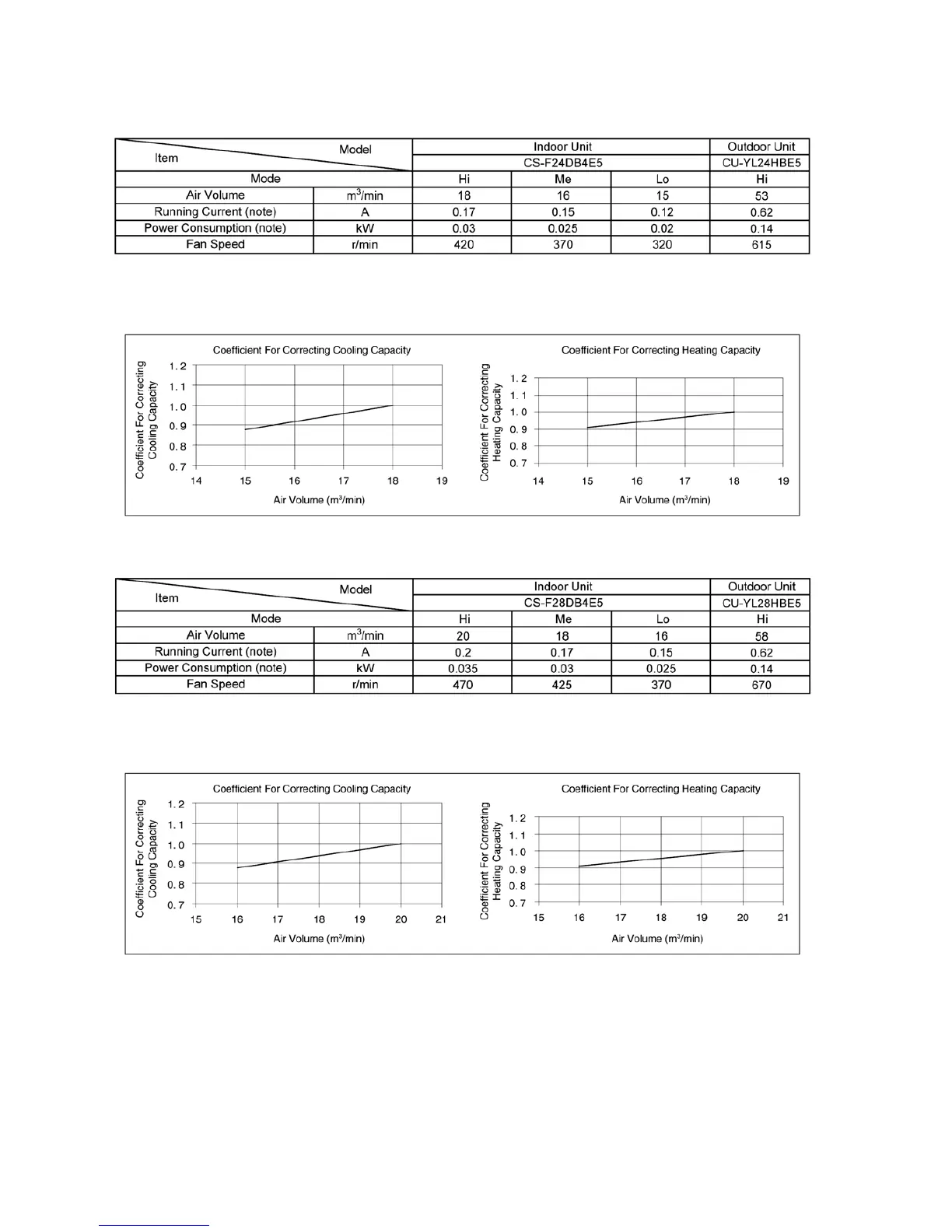

11.5. Fan performance
11.5.1. CS-F24DB4E5 CU-YL24HBE5
(Note)
Indoor FM is DC brushless motor current and power consumption including the indoor P.C.B.
Outdoor FM is AC motor.
11.5.2. CS-F28DB4E5 CU-YL28HBE5
(Note)
Indoor FM is DC brushless motor current and power consumption including the indoor P.C.B.
Outdoor FM is AC motor.

Panasonic CS-F18DB4E5 Specifications

General

Brand	Panasonic
Model	CS-F18DB4E5
Category	Air Conditioner
Language	English
