STEP 1 Connection
• The equipment connections described are examples.
• Before connection, turn off all equipment and read the appropriate operating instructions.
• Peripheral equipment and optional cables are sold separately unless otherwise indicated.
When there is no 21-pin Scart terminal on the television (➔ page 8)
■ RGB
This refers to the three primary colours of light, red (R), green (G), and blue (B) and also the method of producing video that uses them. By
dividing the video signal into the three colours for transmission, noise is reduced for even higher quality images.
■ Q Link functions
Q Link offers a range of convenient functions (For further details ➔ page 42). Make sure to connect a fully wired 21-pin Scart cable to the
television if using the Q Link function.
The following systems from other manufacturers have similar function to Q Link from Panasonic. For details, refer to your television’s operating
instructions or consult your dealer.
• Q Link (registered trademark of Panasonic)
• DATA LOGIC (registered trademark of Metz)
• Easy Link (registered trademark of Philips)
• Megalogic (registered trademark of Grundig)
• SMARTLINK (registered trademark of Sony)
■ Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected by copyright
protection systems and the picture will not be shown correctly on the television.
• When connecting to a television with a built in VCR, connect to the input terminals on
the television side, not the VCR side.
■ When the unit is not to be used for a long time
To save power, unplug it from the household mains socket. This unit
consumes a small amount of power, even when it is turned off
[approx. 3 W (Power Save mode)].

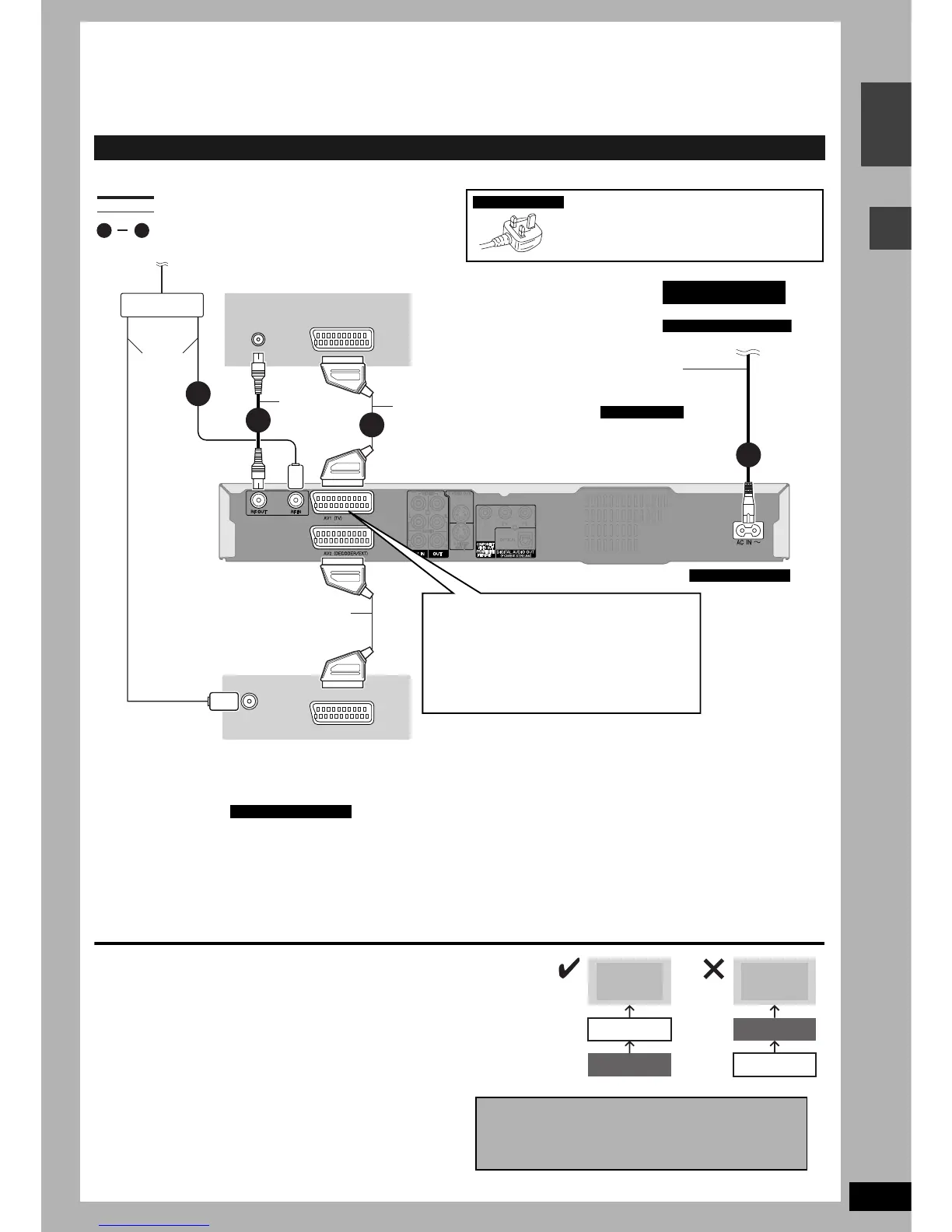

Connecting a television with 21-pin Scart terminal and VCR
VHF/UHF
RF IN
AV IN
VHF/UHF
RF IN
AV OUT
3
1
2
4
1 4
Television’s rear panel
This unit’s
rear panel
indicates included accessories.
indicates accessories not included.
are required connections. Connect in the numbered order.
VCR’s rear panel
AV1 terminal
If your television is equipped with RGB input
capability, by connecting with a fully wired 21-pin
Scart cable you can see video using RGB output on
this unit (➔ below).
To output in RGB select “RGB (without component)”
from “AV1 Output” in the SETUP menu (➔ page 36)
after tuning is completed (➔ page 10–12).
Fully wired 21-pin
Scart cable
RF coaxial
cable
To the aerial
Aerial
cable
Use a splitter if you also
want to connect the
aerial to your VCR.
Splitter
21-pin Scart cable
To household mains socket
(AC 220-240 V, 50 Hz)
(AC 220-240 V, 50 Hz/60 Hz)
For Continental Europe,
Australia and N.Z.
For Asia and Middle East
e.g.,
Continental Europe
BE SURE TO READ THE CAUTION
FOR THE AC MAINS LEAD ON PAGE 2
BEFORE CONNECTION.
AC mains lead
Connect only after all other
connections are complete.
• Use the AC mains lead
that matches the socket
for the area you live in.
For Middle East
For Saudi Arabia
For Continental Europe
Tel evisio n
This unit
VCR
Television
VCR
This unit
Before moving the unit, ensure the disc tray is
empty.
Failure to do so will risk severely damaging the disc and
the unit.
