Panasonic Diga DMR-ES10 User Manual

RQT8020
9
Getting started
ENGLISH
• Decoder here means the device used to decode scrambled broadcasts (Pay TV).
• Change the “AV2 Input” and “AV2 Connection” settings in the SETUP menu to match the connected equipment (➔ page 36).
■ To enjoy multi-channel surround sound on
DVD-Video
Connect an amplifier with Dolby Digital, DTS and MPEG decoders
using an optical digital audio cable and change the settings in
“Digital Audio Output” (➔ page 36).
• Digital output is not digital with DVD-Audio (figure 1), however you
can enjoy it in analogue (figure 2).
(For digital playback, set “DVD-Audio Video mode Playback”
(➔ page 35) to “On” when the DVD-Audio contains DVD-Video.)
• You cannot use DTS Digital Surround decoders not suited to DVD.
■ Connection to a stereo amplifier
For Continental Europe

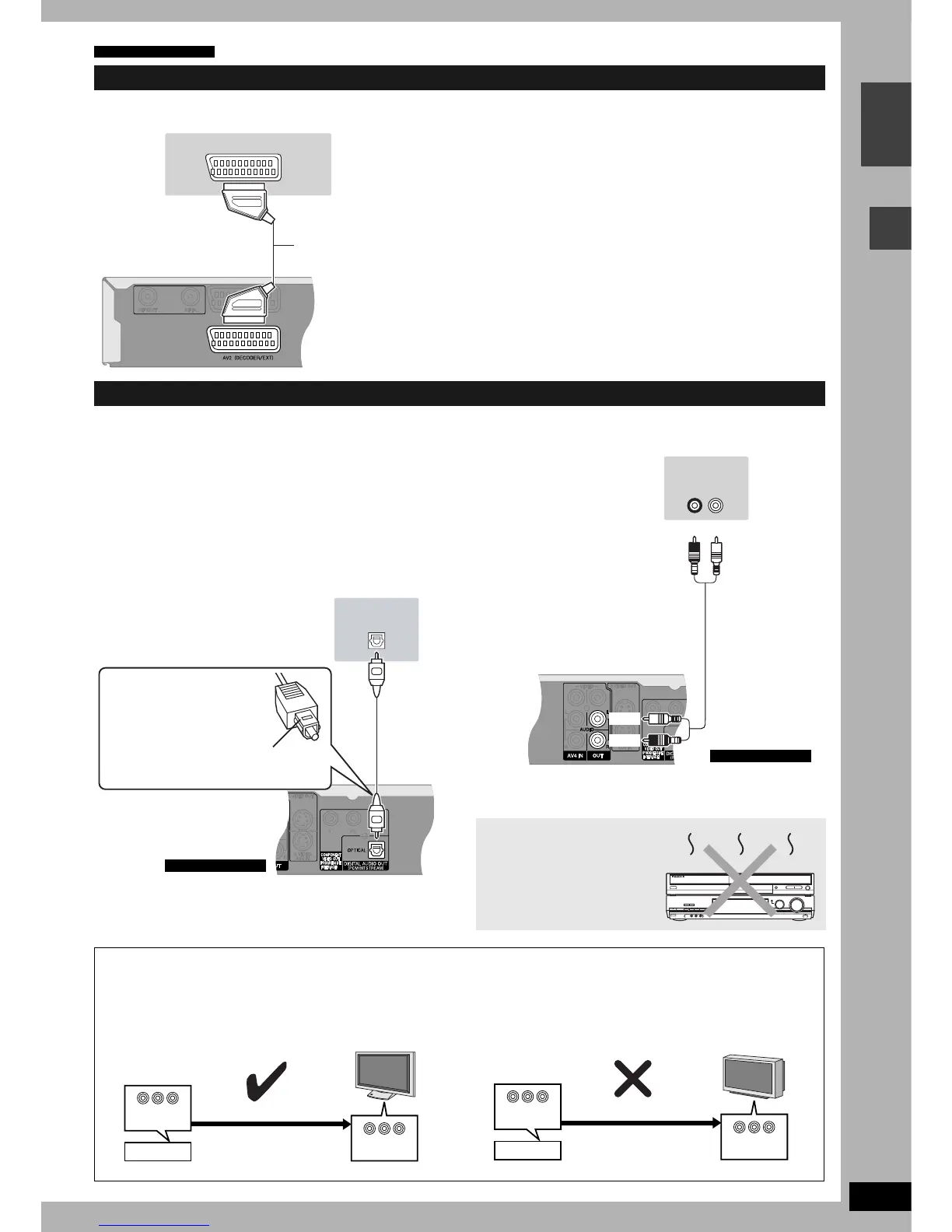

Connecting a digital/satellite receiver or decoder
Connecting an amplifier or system component
AV OUT
This unit’s rear panel
21-pin Scart cable
Digital/satellite receiver or
decoder’s rear panel
Viewing video from the decoder on the television while
the unit is stopped, or while recording
If you connected the television to the AV1 terminal and the
decoder to the AV2 terminal on this unit, press
[0]+[ENTER]. (“DVD” appears on the unit’s display.)
Press again to cancel. (“TV” appears on the unit’s display.)
• If the television is compatible with RGB input, the RGB
output signal from the decoder can also be output from
the main unit the same way.
OPTICAL IN
Optical digital audio cable
Do not bend this cable sharply.
Insert fully, with this side facing up.
This unit’s rear panel
Amplifier’s rear panel
(figure 1)
e.g.,
Continental Europe
AUDIO IN
R L
Amplifier’s rear panel
This unit’s rear panel
Audio cable
Red White
White
Red
(figure 2)
e.g.,
Continental Europe
Do not place the unit on
amplifiers or equipment
that may become hot.
The heat can damage the unit.
Note to owners of progressive compatible PAL system televisions
•
If you have an LCD/plasma television or LCD projector
Using progressive output, you can enjoy high-resolution video
recorded on media such as DVD-Video. Connect this unit’s
component video output terminals to your television and turn on the
progressive output setting (➔ page 13).
• If you have a CRT (cathode ray tube) television
Use component output with progressive “Off” (Factory setting,
➔ page 36), even if it is progressive compatible, because
progressive output can cause some flickering. This is the same for
multi system televisions using PAL mode.
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
This unit
Progressive output
COMPONENT
VIDEO OUT
COMPONENT
VIDEO IN
This unit
Progressive output
